About the product

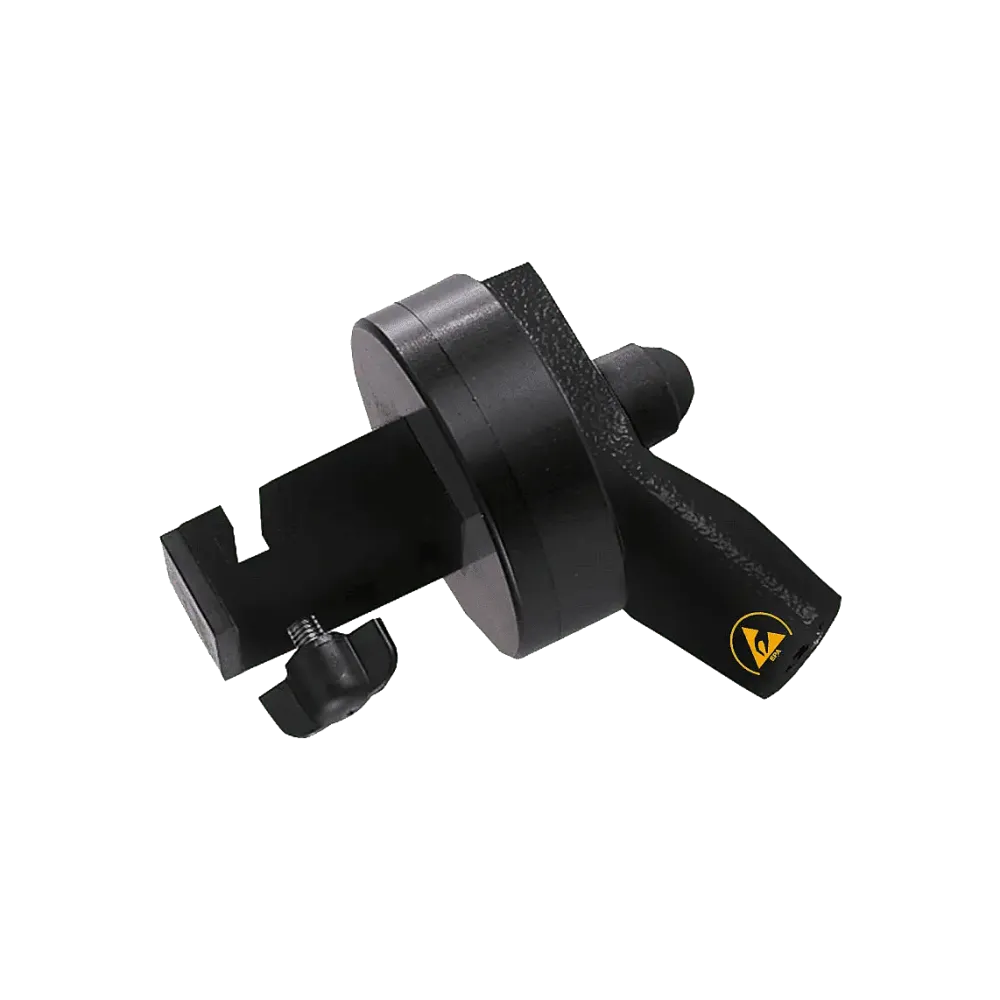

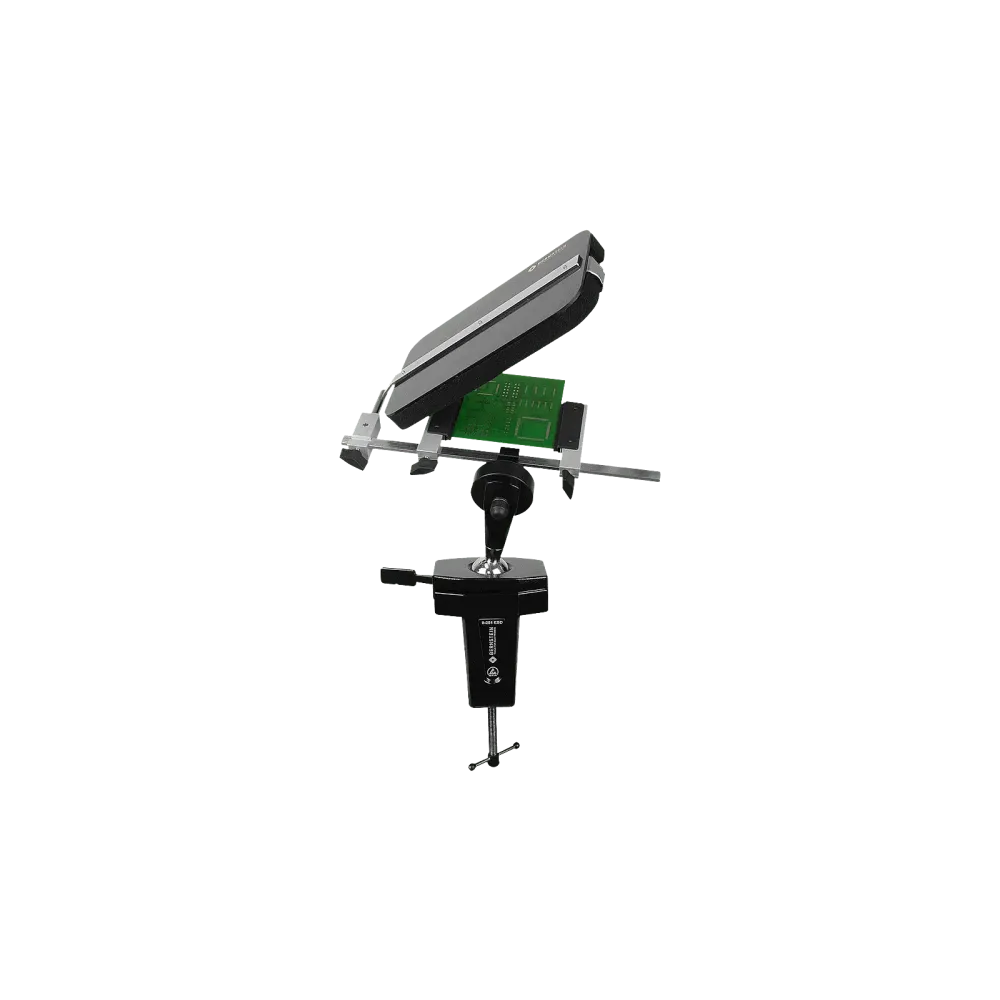

The SPANNFIX VARIO can be used to clamp PCBs / circuit boards up to a length of 270 mm. The infinitely adjustable ball allows the PCB to be positioned and held securely in all directions. Quick turning of the PCBs / boards is possible thanks to the adapter.
. Very helpful as a third hand when soldering or assembling, useful clamping and holding device with quick-release mechanism.
Technical data
- Precision ball joint 360° rotatable
- Infinitely adjustable quick release
- Quality product 100% Made in Germany
- Sturdy loading frame with quick-reversing device and cover plate
- with suspension for sensitive circuit boards, angle adapter for greater inclination
- Circuit board holder adjustable from 25 mm to 270 mm

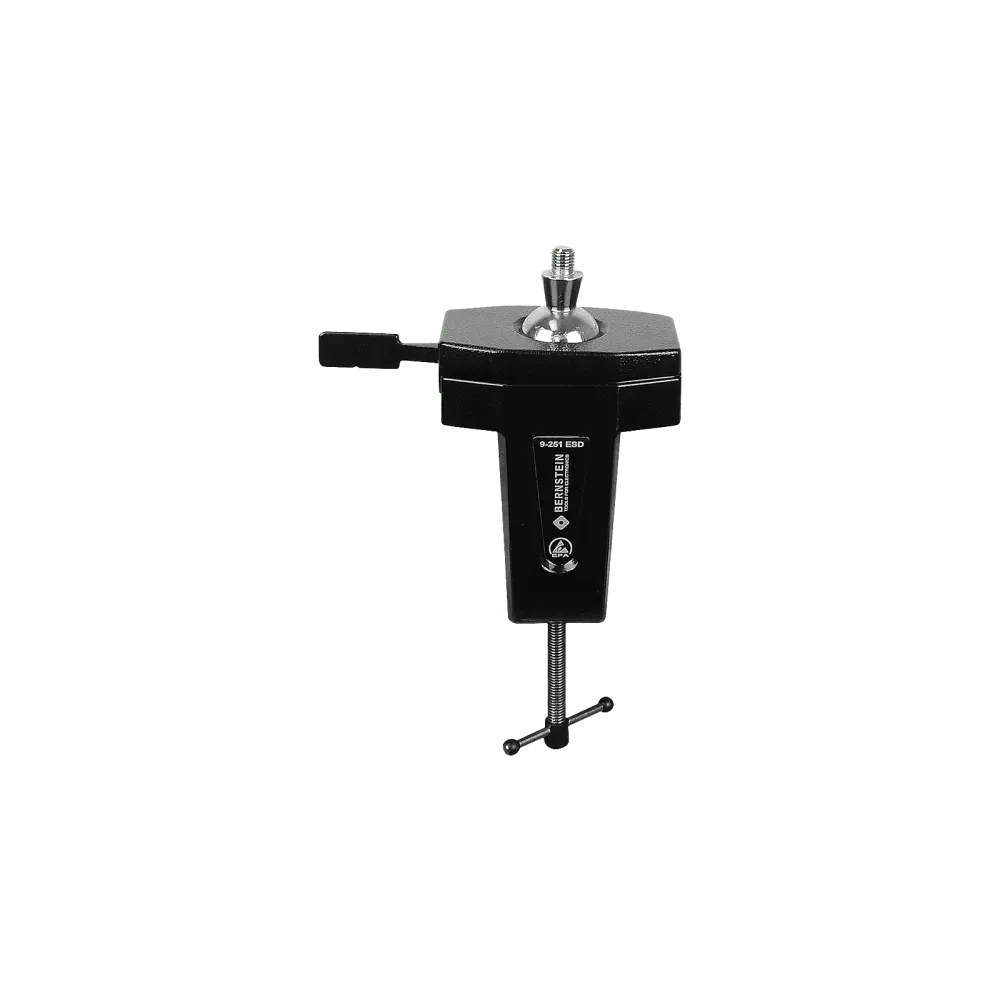

- For clamping, for workbenches with max. worktop thickness of 80 mm
- Tilt angle +/-45°
- incl. ESD earthing cable 1 MOhm, length 1.8 m for connection to an EBP / Earth Bonding Point
- Materials Steel, plastic, cast aluminum with ESD powder coating black, dissipative 10^7 - 10^8 Ohm
- Orientation dimensions approx. 410 x 300 x 240 mm
- Weight 1560 g
Product specifications
| ESD safe | Yes |
| Manufacturer | BERNSTEIN |
| Product | Vices |
