About the product

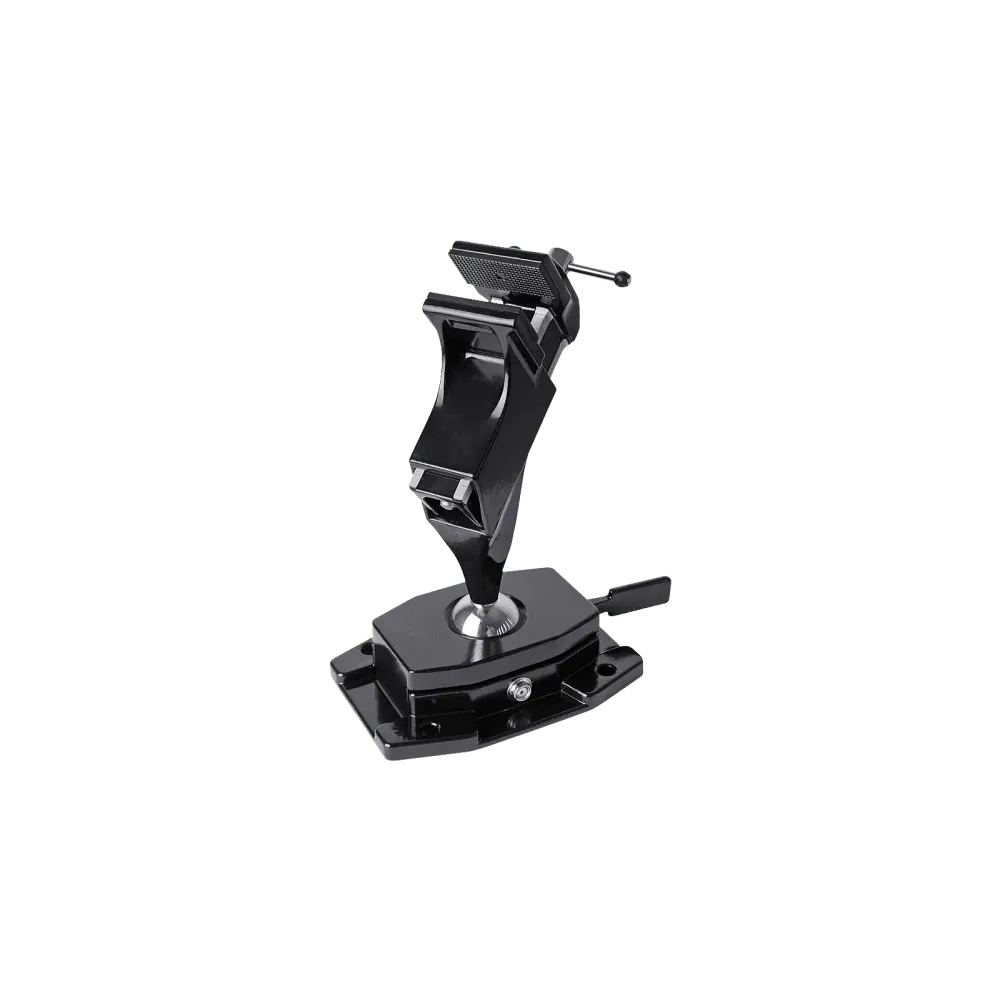

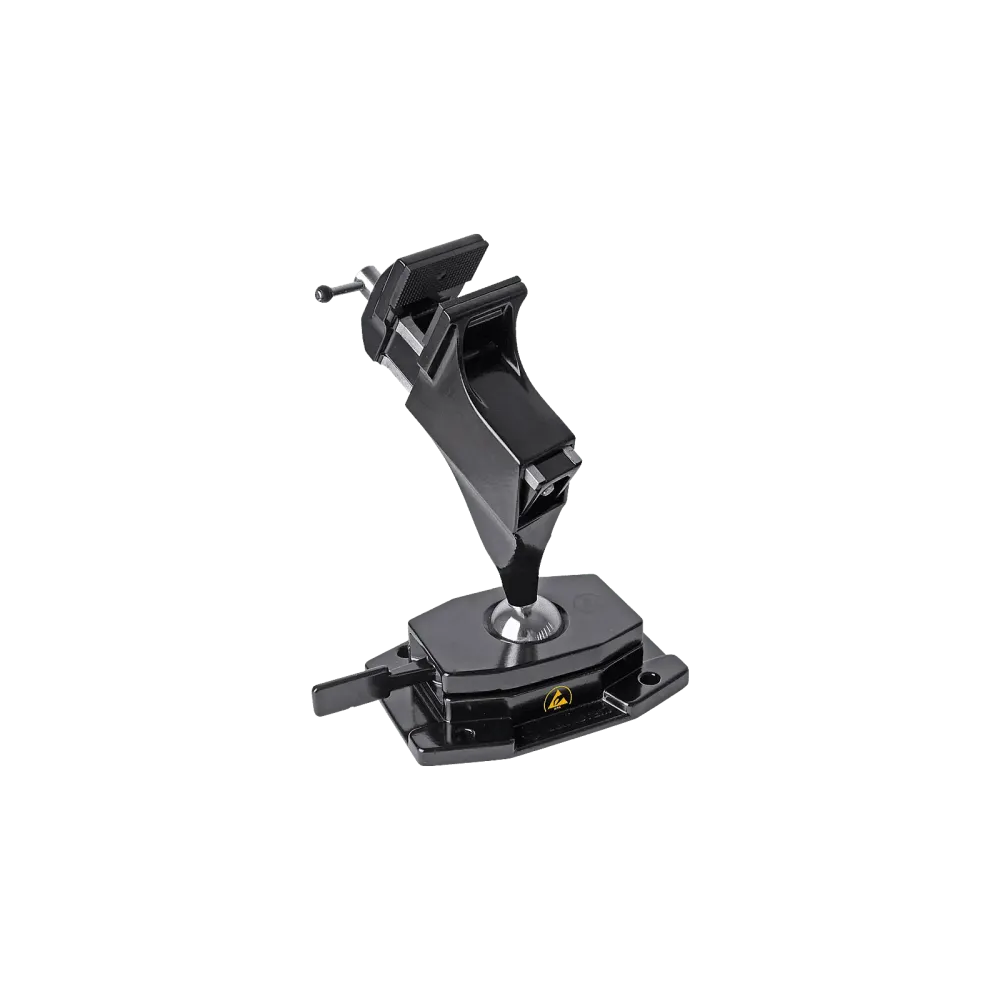

A small push of the lever is all it takes to continuously align the clamped workpiece in any convenient working position. The individual adjustment of the working height offers an ergonomic posture for standing work (such as drilling, sawing, grinding, milling, cutting, etc.).
. The interchangeable clamping jaws of the ball-joint vices are 50 mm plastic jaws for the small vise and 100 mm steel jaws for the large vise. We offer protective jaws for clamping scratch-sensitive workpieces in felt, leather, cork and rubber coverings. Jaws with aluminum prisms are suitable for pipe clamping, all jaws are available in jaw widths from 50 - 150 mm.
. The vice attachment for clamping is suitable for workbenches with a maximum table top thickness of up to 80 mm. The screw-on vice attachment can be connected to workbenches, tables and base plates via the four 9 mm through-holes. The high-performance magnets offer individual attachment, which can also be changed quickly.
Technical data
- Precision ball joint 360° rotatable stepless
- Lockable quick release
- Quality product 100% Made in Germany
- For screwing onto the workbench (space dimensions: 150x106mm)
- 50 mm ESD plastic jaws with grip
- Span 70 mm
- Clamping depth 38 mm
- Clamping pressure 1470 N
- Tilt angle +/-45°
- Accessories: Spare jaws
- Article 9-900-E50-ESD (pair)
- Cast aluminum with ESD powder coating black, dissipative 10^7 - 10^8 Ohm
- Orientation dimensions approx. 220 x 180 x 115 mm
- Weight 1310 g
Product specifications
| ESD safe | Yes |
| Manufacturer | BERNSTEIN |
| Product | Vices |
| Jaw width | 50 mm |
Data sheets
