MacroZoom MZ.5000, digital microscope, 0.7-0.5 zoom 105 mm working distance

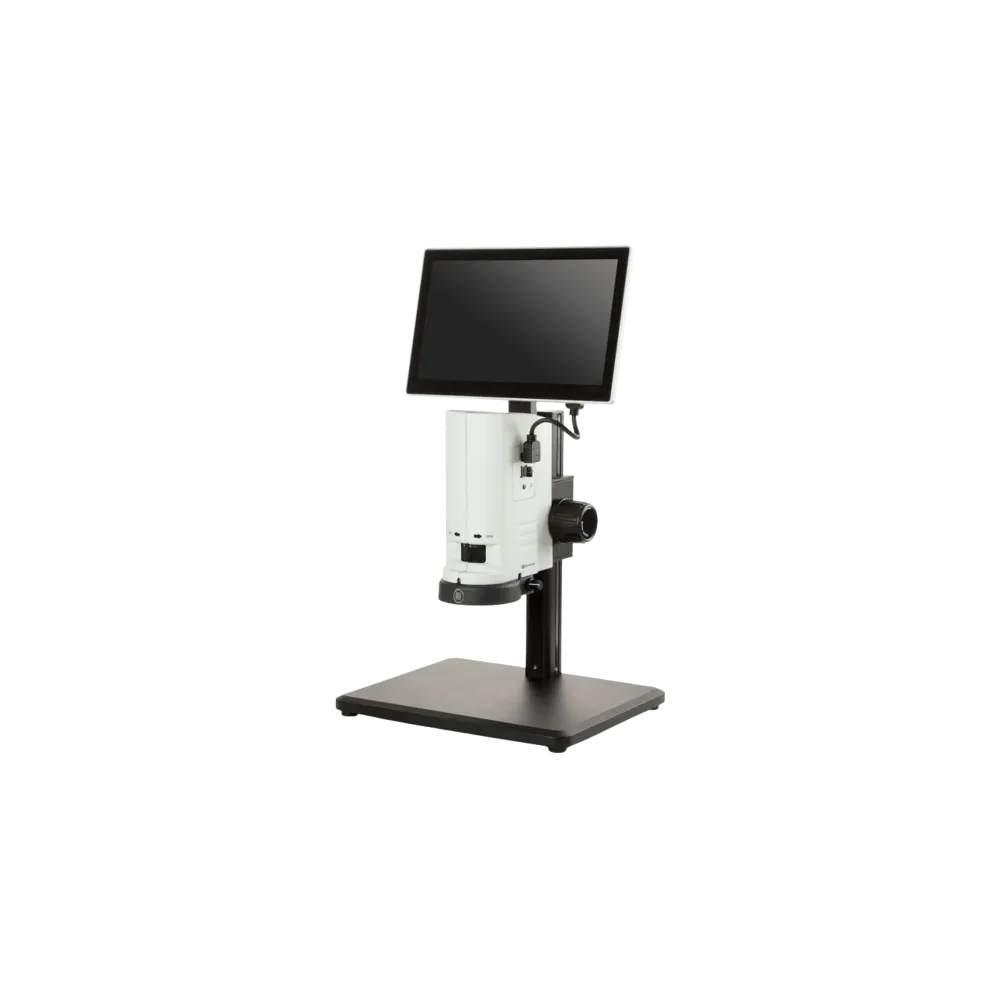

The MacroZoom digital microscope is built around a 0.7 to 5x zoom lens and allows the inspection of objects directly on an 11.6" LCD screen, with a tilt of -5° to 15°. This type of microscope is well suited for inspection and quality control departments

The digital MacroZoom is equipped with an integrated high-resolution 1080p camera that delivers up to 60 images per second and can be connected to either the supplied and connected 11.6-inch screen or an external stand-alone HD screen

CENTRAL ZOOM LENS

The Digital MacroZoom MZ.5000 has a single zoom lens with a 0.7 to 5x zoom magnification. The zoom setting for engraving is 1 - 1.5 - 2 - 3 - 3 - 4 and 5x. The working distance is 105 mm. Supplied with an additional 0.5x lens with a working distance of 110 mm

STATIC

The central zoom lens with attached screen and LED ring light is mounted on a rack and pinion system that sits on a large metal base measuring 320 x 260 mm. The travel is 225 mm

Lighting

A supplied 5,500 K LED ring light with 56 LEDs can be mounted under the microscope stand. The intensity is adjustable

BUILT-IN CAMERA

Built-in HD 1080p high definition 2 MP CMOS high speed camera, 1920 x 1080 pixels, 60 fps with connected 11.6" screen. The standard field of view is 29.8 to 4.18 and with the 0.5x additional lens from 59 to 8.35.The camera has an HDMI output that can be connected either to the connected screen or to an external HD screen

Two additional USB ports accept the included 32GB USB memory stick (up to 128GB) and an included wireless mouse that controls the integrated on-screen software.The operator can also capture images and save them to the SD card by pressing a capture button on the right side of the microscope stand

BUILT-IN SOFTWARE

The integrated on-screen software is mouse-controlled and offers functions such as image capture, still image, automatic white balance, automatic exposure, file manager, grid and camera settings such as exposure time, gain, saturation, contrast, sharpness, HDR . Measurement functions such as line, area, angle, etc. are also available via the software.Images are saved in .jpg format and videos in .avi format. With the digital zoom function, objects can be viewed with a magnification of up to 70x

PACKAGING

Supplied with 32 GB memory stick, mouse, short HDMI cable for the connected screen, external 100-240 Vac / 12Vdc / 3 A power supply unit
