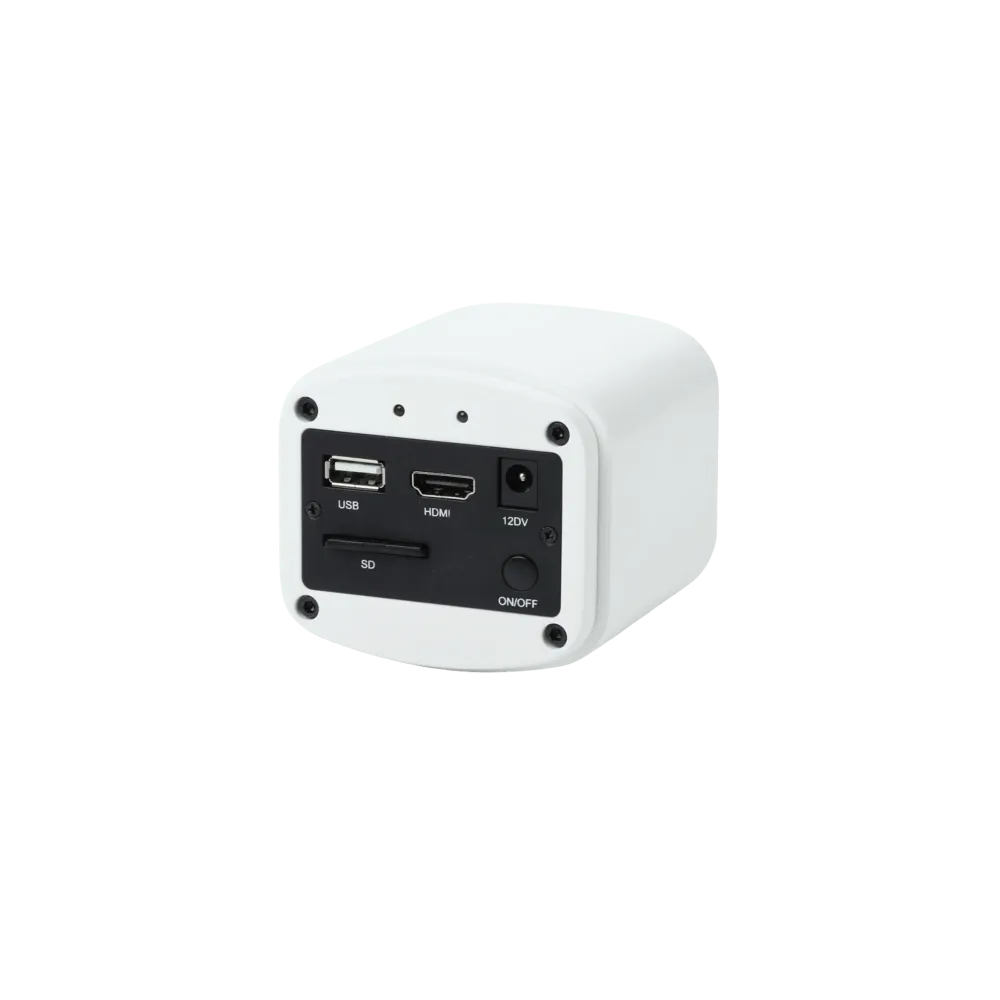

About the product
The Euromex HD-Ultra camera offers the perfect solution for modern microscopy for industry and laboratories where live images are required. This HD camera can be used for biological, metallurgical or stereo microscopes. High Definition HD1080p CMOS color camera with HDMI and USB-2 interface. The camera is equipped with highly sensitive sensors for low and intense light conditions. It is also suitable for coaxial lighting and machine vision applications. The live images produced with this camera provide excellent color reproduction at high frame rates up to 60 frames per second and the HD Ultra High Definition camera can be used in 2 modes; stand-alone with its embedded mouse software or in a computer controlled mode.
HIGHLIGHTS
- HD 1080p high-definition color camera
- Preview, images directly on the TV, monitor or projector
- Can be used with or without a computer
- Integrated mouse software
- C-mount interface
- HDMI, USB-2 and SD memory card
- Compatible with ImageFocus Plus software
- Available with 11.6-inch HD screen (VC.3036-HDS)
Technical data
- Sensor HDMI 6.0 MP CMOS high-sensitivity SONY sensor
- Sensor size 1/2.8 inch, HDTV 1080p (50/60 Hz)
- Pixels 3264 x 1836 pixels (capture mode) 1920 x 1080 pixels (live preview)
- HDMI 60 fps,
- USB 30 fps
- Video 1080p pixel video recording mode
- Scan mode Progressive scan
- Pixel size 2.8 µm x 2.8 µm
- Noise 3D Noise reduction
- Sensitivity 510 mV
- Automatic/manual white balance
- Dynamic range 69 db S/N max 55 db
- Interface Digital HDMI, USB 2
- Data storage: 16 Gb SD memory, card or via USB-2
- Camera buttons On/Off
- Optical interface C-mount interface
- Power supply External power supply 100-240 Vac to 12 Vdc/2A
- Operation 0 - 60° C, 45-85 % humidity
- Storage temperature -20 to 70° Celsius
Scope of delivery
- HDMI cable
- USB 2 cable
- 12Vdc/2A power supply unit
- 16 Gb SD card
- USB-2
- 0.37x C-mount adapter
- Mouse software for image capture - 1080p HD video recording, image comparison and browsing of captured images and video
- Object micrometer 1mm/100parts, 10 µm per part
Product specifications
| ESD safe | No |
| Product | Digital microscope |
| Manufacturer | Euromex |
