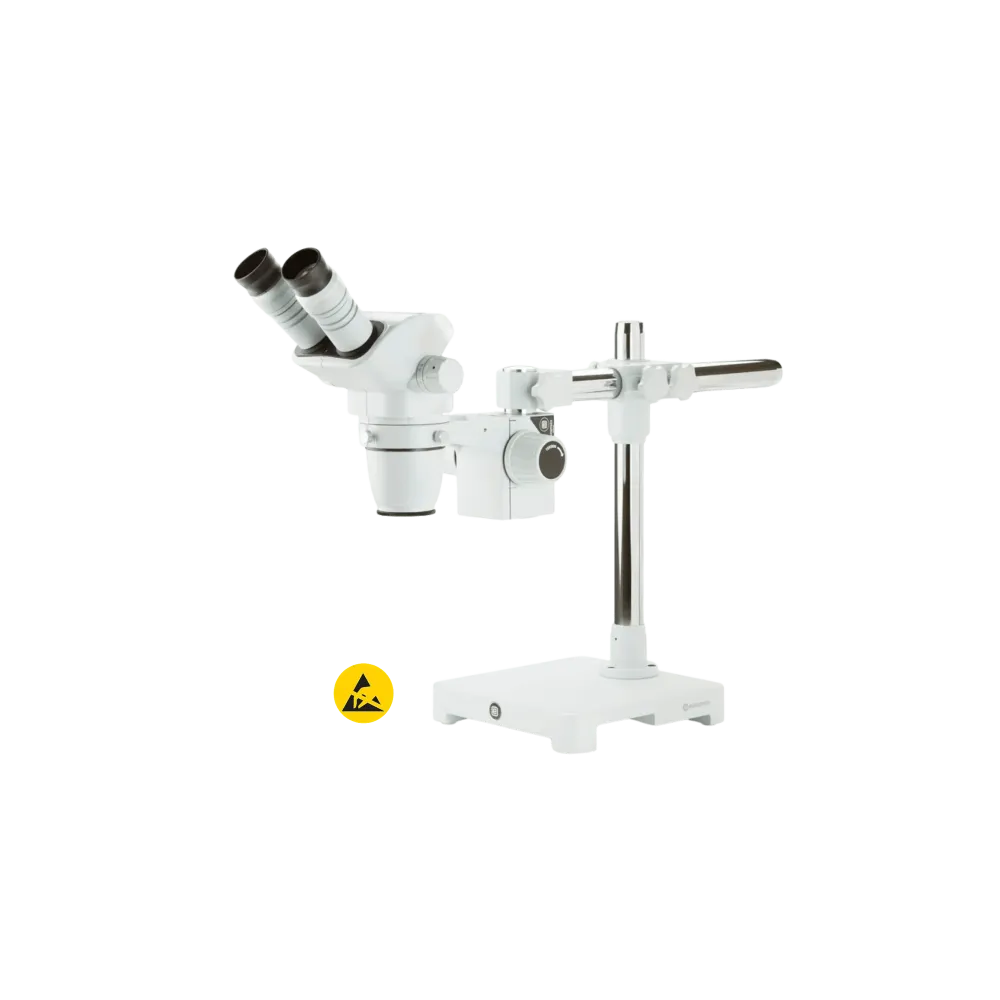

ESD stereomicroscope NexiusZoom 1902-U, binocular, 0.67-4.5, HWF10x/22mm, white

With the NexiusZoom stereo microscopes from Euromex you can examine your samples with the highest precision. The microscope generates two- and three-dimensional images for even the most demanding microscopy applications

The NexiusZoom stereo microscopes are supplied with a wide range of objectives and stands, with or without illumination. Ideal for all types of industrial applications. With additional objectives and attachment lenses, magnifications from 3.3 up to 180 times can be achieved

The Zoom ESD-safe microscopes are perfect for inspecting all surfaces or for observing larger objects in the electronics industry

Technical data

• Pair of wide field eyepieces HWF10x/22mm without eyecups
• Binocular head with 45° inclined tubes
• Diopter adjustment ± 5° on two tubes. Pupil distance adjustable between 54 and 75 mm
• 0.67x to 4.5x zoom lens, magnification from 6.7x to 45x
• Field of view from 33 mm to 4.9 mm. Working distance 110 mm
• Universal single-arm tripod. Maximum object height 213 mm
• Without lighting
• Supplied with dust cover and manual
