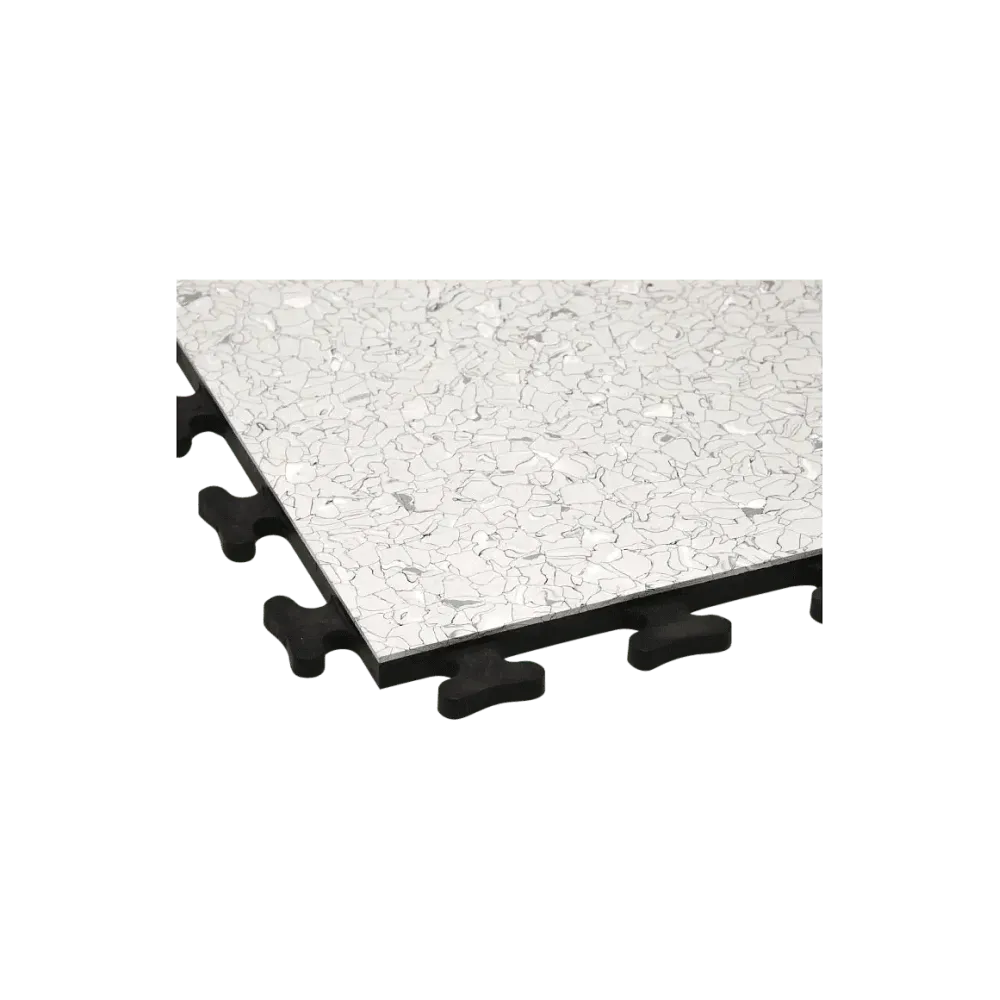

ESD PVC puzzle floor, 608 x 608 x 10.5 mm, PU 5 pieces

The ESD puzzle floor combines the unique advantages of highly conductive, compact and non-porous ESD floor coverings and also offers a great deal of flexibility thanks to the dovetail connection system, which enables loose laying on any existing floor surface.

Technical data

• Dimensions: 608 x 608 x 10.5 mm
• Typical leakage resistance Rgp =¹⁰⁴ -^{106 Ohm}
• Two-layer PVC floor covering in tile form
• For example, for the subsequent refurbishment of ESD-relevant areas
• Loosely laid, with maximum safety to avoid electrostatic discharge.
• Loads. Suitable for the man-shoe-floor system (IEC 61340-4-5).
• Loose laying during operation and immediately accessible
• Can also be laid on problematic surfaces thanks to its honeycomb structure, e.g. in the case of increased residual moisture, soiling, etc.
• Permanent value retention thanks to 100% repairability
• Suitable for chair castors
• PU: 5 pieces / 1.85m²
