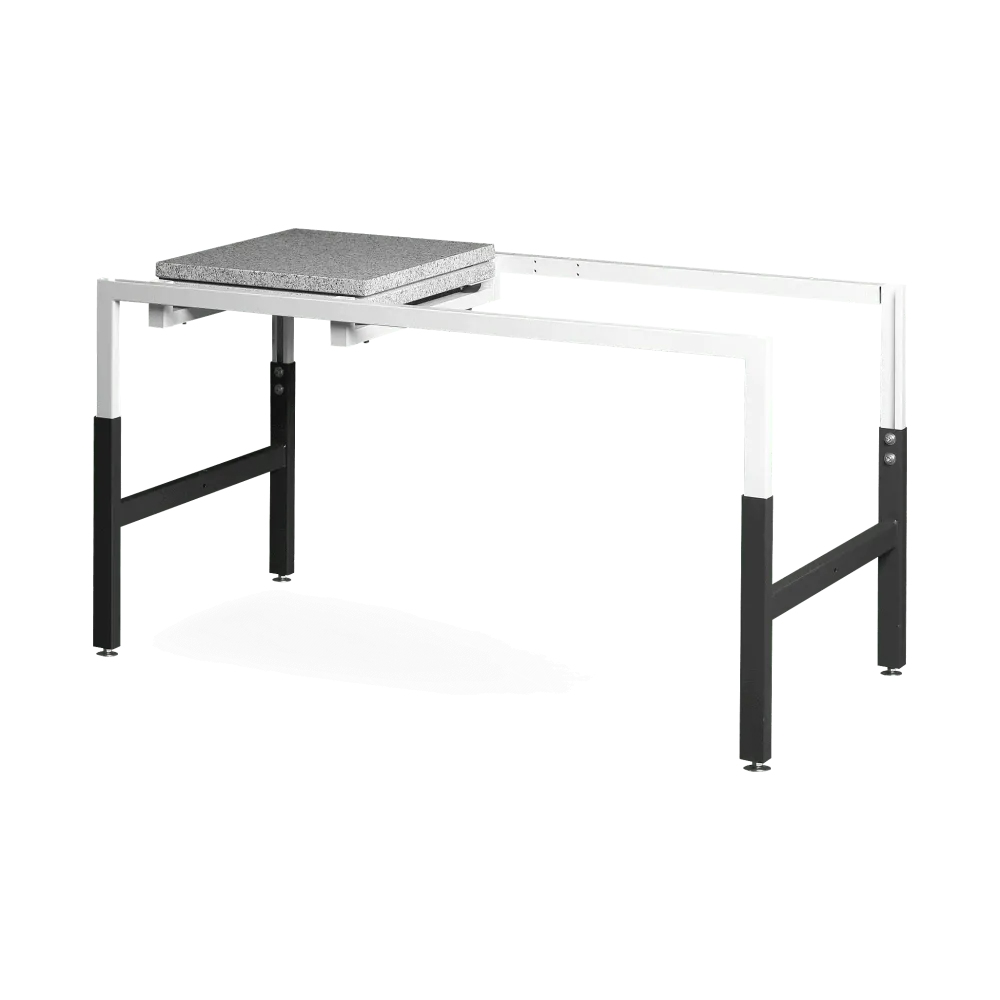

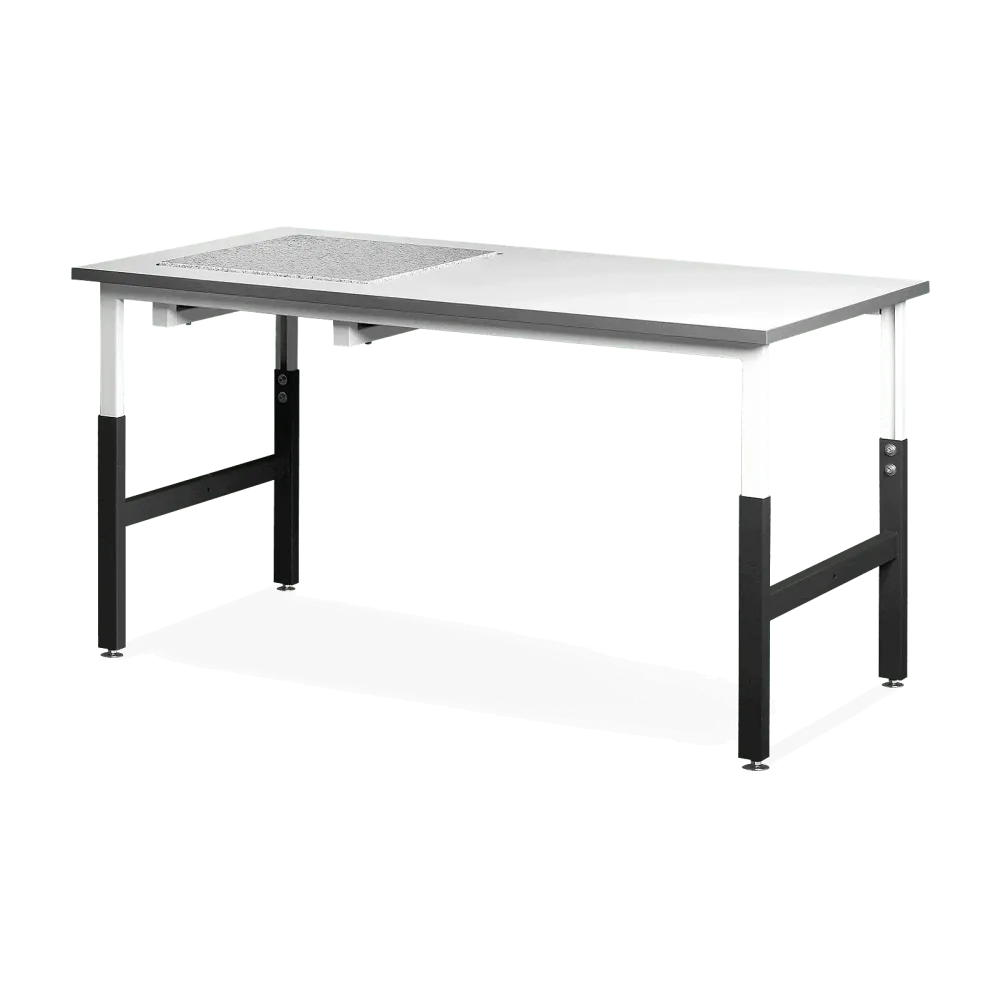

Anti-vibration table Granite platform

To ensure the smooth and precise operation of balance microscopes and measuring instruments, they are installed on a specially developed granite plate.

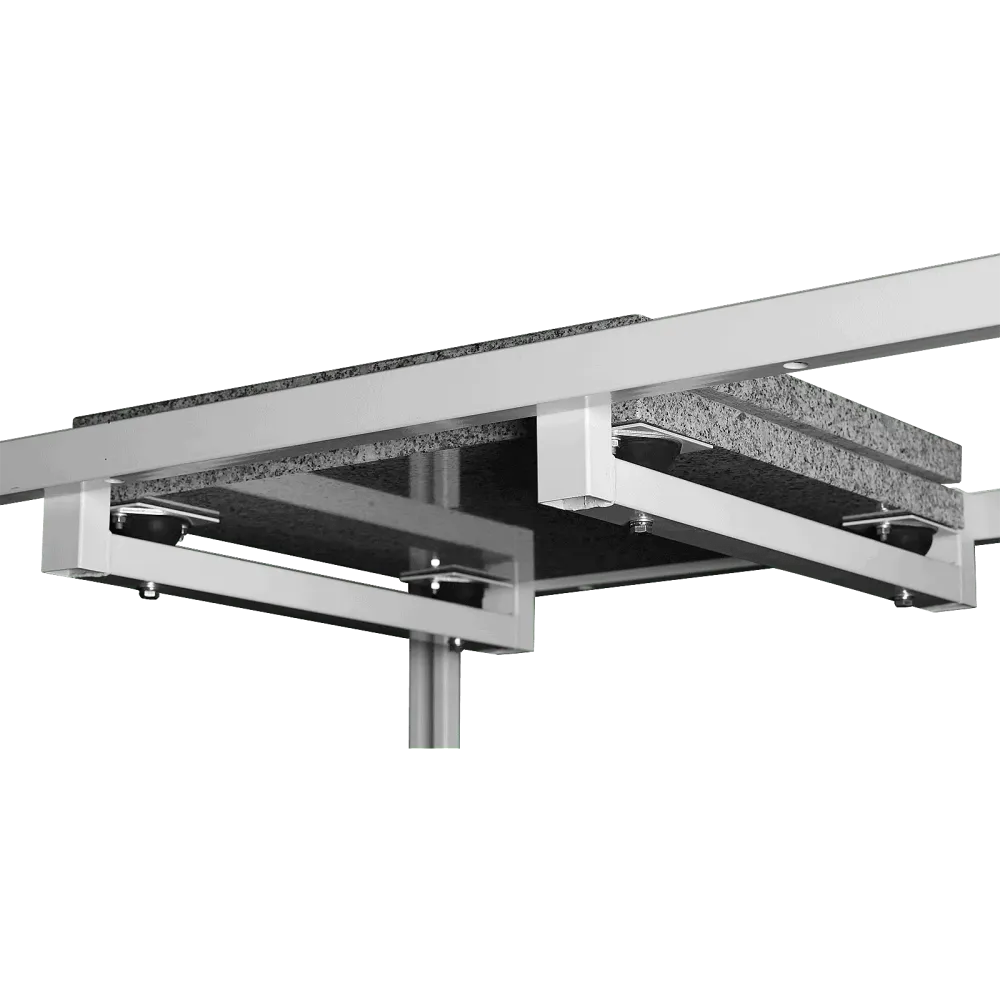

The granite slab, known for its high density and stability, minimizes the transmission of vibrations. In addition, the plate is mounted on vibro-isolators that effectively absorb shocks caused by neighboring equipment or ground movement. This design ensures a disturbance-free environment for accurate measurements and ensures that external influences do not interfere with the operation of the equipment. Such measures are essential in laboratories and areas that require the highest measurement accuracy.

Technical data

• Height adjustment range: 670 - 1120 mm
• Maximum load capacity of the granite slab: 40 - 100 kg
• Vibration elements: 4 robust vibration isolators
• Slab material: Two-layer, polished granite slab
• Standard size of the granite slab: 500 x 500 mm
• Options: Various sizes of granite slab available on request
