Item ID: 51220

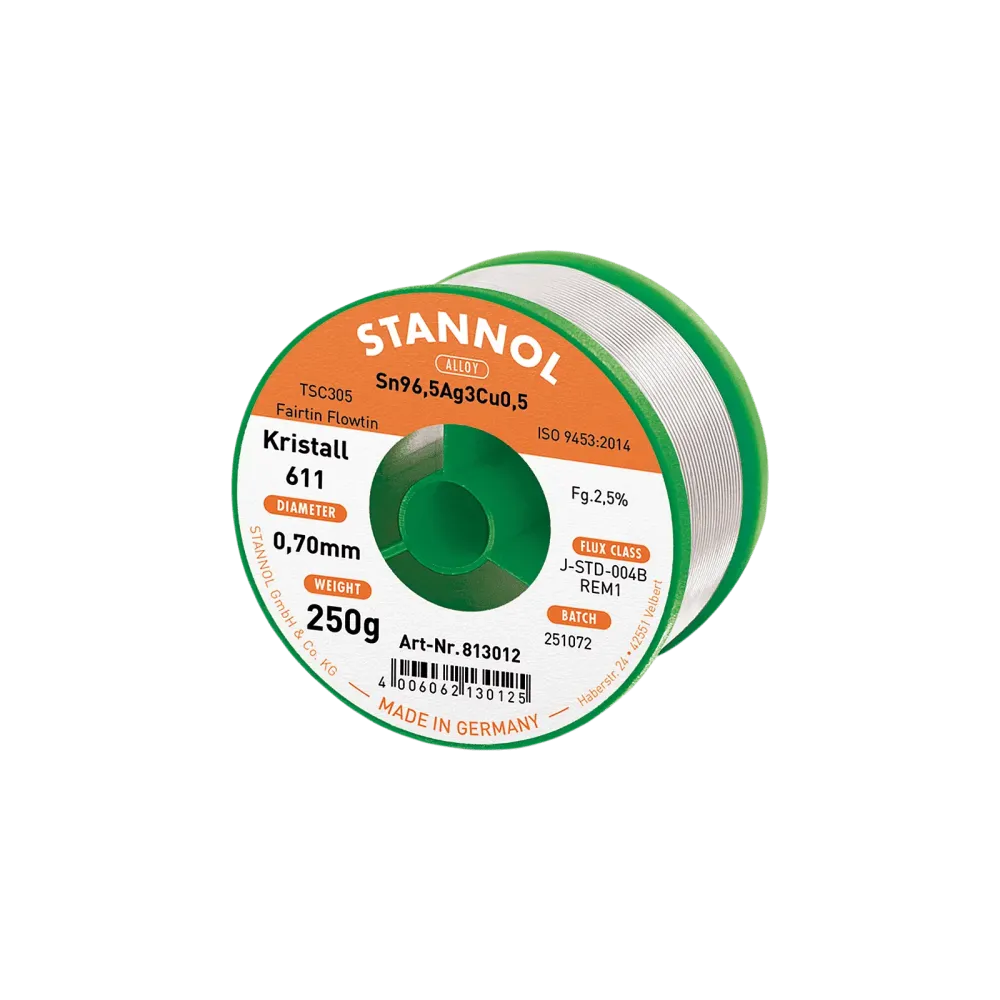

Solder wire crystal 611, Sn96,5Ag3Cu0,5 - FLOWTIN TSC305 - Fairtin, 0.7mm, 250g
About the product
The Kristall 611 solder wire is based on a halogen-activated "no-clean" flux. It was developed for the high demands of conventional soldering and soldering SMDs in industrial production, as well as for repair and re-soldering.
The Kristall 611 wire flux is a well-activated flux based on synthetic resins and combines outstandingly high activity and very good flow properties with low quantities of solid and electrically safe residues.
Technical data
- Fairtin
- Flowtin
- Only slightly colored no-clean residues
- Fast soldering even on surfaces that are not ideal for soldering
- Low spray behavior
- Mild odor
Areas of application
Kristall 611 can be used for hand and machine soldering in the field of electrical engineering and electronics and shows its strengths where wettability is not always optimal and things have to be done quickly.
Product specifications
| Manufacturer | STANNOL |
| Melting temperature (°C) | 217 °C |
| Proportion of copper (Cu) | 0.5 |
| Proportion of silver (Ag) | 3 |
| Proportion of tin (Sn) | 96.5 |
| Alloy | Pewter/silver/copper |
| Product series | Crystal 611 |
| Fairtin | Yes |
| Flux | REM1 |
| Diameter | 0.7 mm |
| Halogen-free | No |
| Leaded | No |
| Coil size (g) | 250 g |
