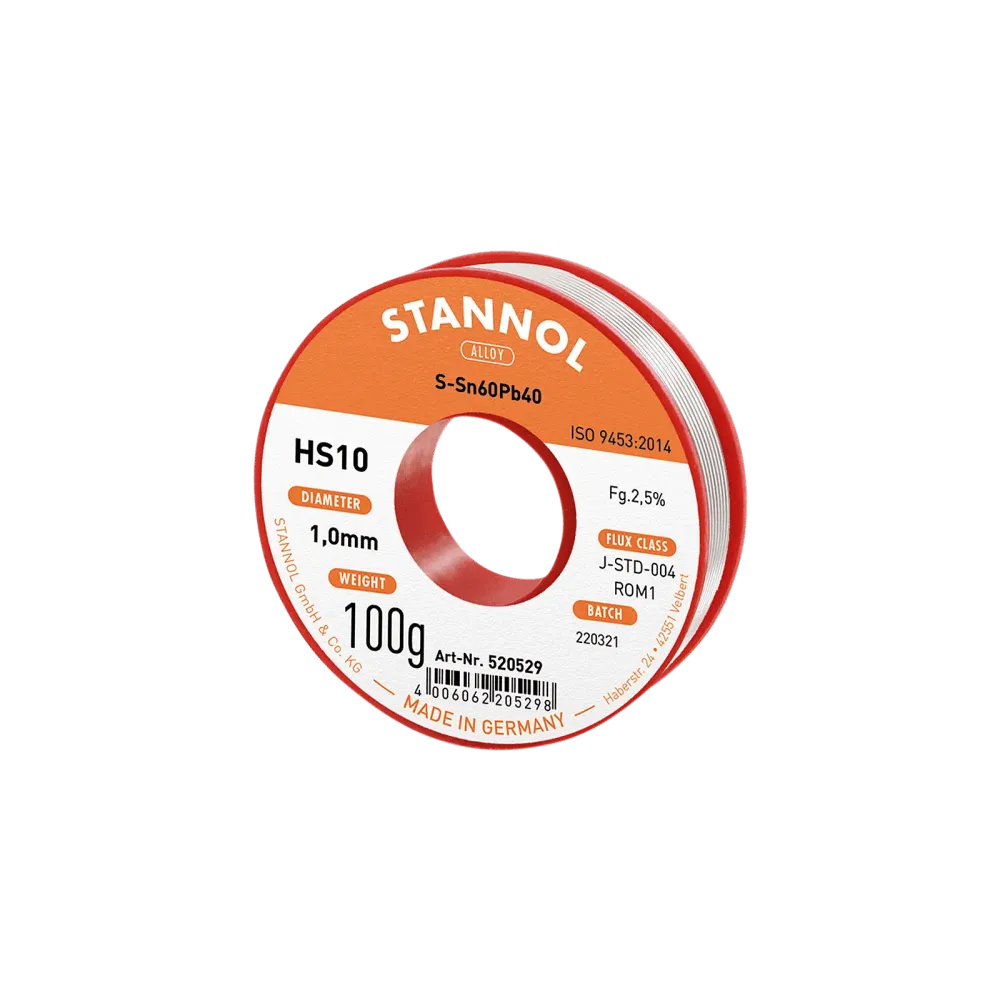

About the product
The HS10 electronic solder wire is a tried and tested product from our research department that has been developed for particularly high quality requirements in industrial production and for fast repair and re-soldering. The solder wire HS10 is characterized by high activity, i.e. fast spreading and electrically safe residues. The HS10 wire flux consists of halogen-activated natural resin (rosin) and complies with J-STD-004 type ROM1.
Technical data
- Solid residues (no sticking, chemical-physical safety)
- Special activator (higher spreading speed, fast soldering, therefore shorter cycle times)
Areas of application
The HS10 solder wire can be used for manual and robot soldering in the field of electrical engineering and electronics. The flux residues can remain on the solder joints. If cleaning is required for optical or technical reasons, this can be carried out effectively with the cleaning agents Stannol Flux-Ex 200B or Stannol Flux-Ex 500.
Product specifications
| Manufacturer | STANNOL |
| Proportion of lead (Pb) | 40 |
| Alloy | Tin/Lead |
| Melting temperature (°C) | 183 °C |
| Proportion of tin (Sn) | 60 |
| Product series | HS10 |
| Leaded | Yes |
| Flux | ROM1 |
| Fairtin | No |
| Halogen-free | No |
| Diameter | 1 mm |
| Coil size (g) | 100 g |
