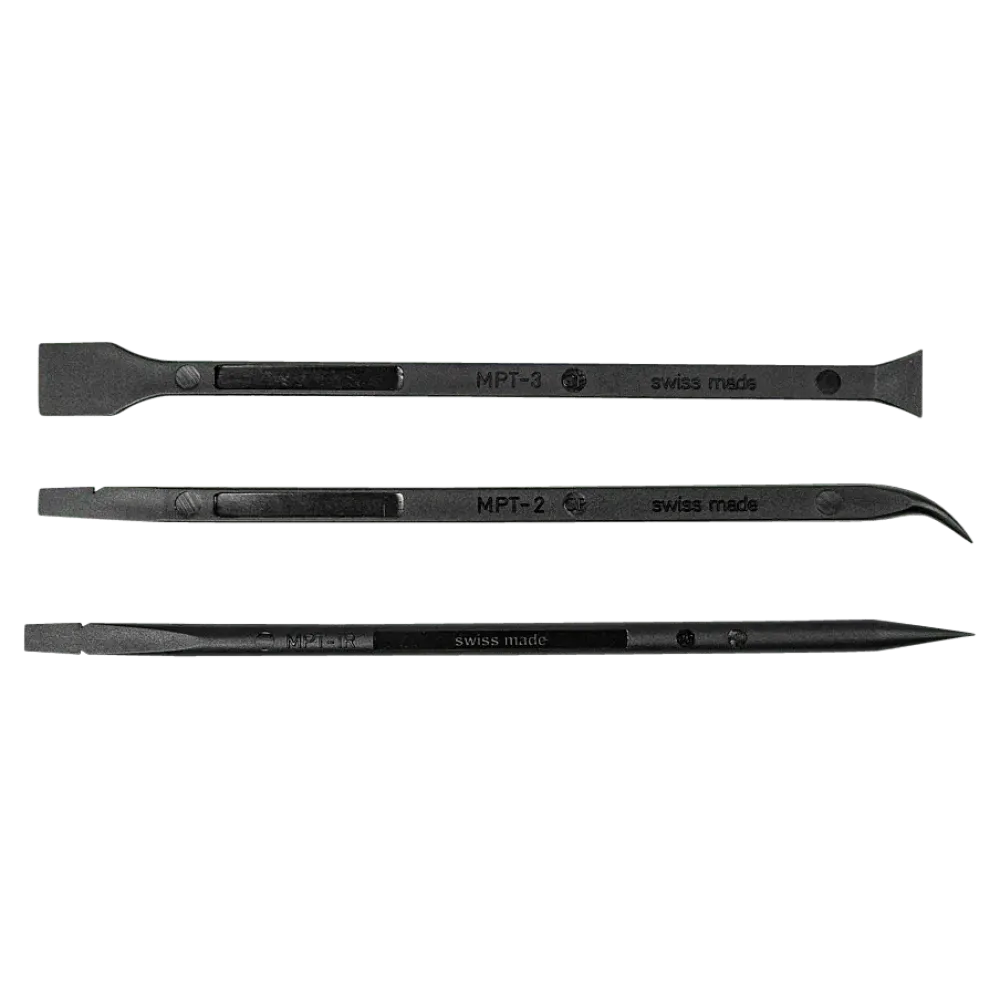

ESD lever tool opener spatula PVDF plastic 3 pcs

Tool that can be used on both sides as a spatula, scraper, opener, lifting or levering tool for electronics, for example for soldering (lead-free soldering). Can be used for removing solder masking agents, rubber latex, adhesive coatings or for applying adhesives. Often used for dosing chemical components or as a stirring rod for preparing adhesives and solutions. Also used for small parts as a positioning aid during assembly work in the technical sector and for cleaning 3D printed parts.

PVDF Polyvinylidene fluoride carbon fiber reinforced. General information PVDF: excellent mechanical strength and toughness, smooth surface, high abrasion resistance, heat stabilized and heat resistant (continuous service temperature up to 150°C). Resistant to UV and nuclear radiation (sterilization). Excellent chemical resistance to most aggressive substances, mineral and organic acids, hydrocarbons, alcohols and halogenated solvents. Resistant to hydrofluoric acid (40% concentration, 90°C), nitric acid (50% concentration, 90°C), hydrochloric acid (36% concentration, 90°C). High purity, cleanroom and medical technology approved, low extraction value. ESD-safe material (avoidance of powder attraction, sparking, ignition sources). Typical applications are the handling of components that are very sensitive to scratches and soiling, cleaning and etching processes.

Technical data

• Versatile tool and aid
• for applying or removing chemical substances
• when soldering, gluing, filling, stirring, opening or scraping
• Hard, stable, scratch-resistant, heat- and acid-resistant
• Shape flat-wide from 4.4 to 12.0 mm
• Shape pointed from 0.5 to 0.7 mm
• ESD-safe material
• Material PVDF Polyvinylidene fluoride
• Length 140-150 mm
• Weight 20 g
