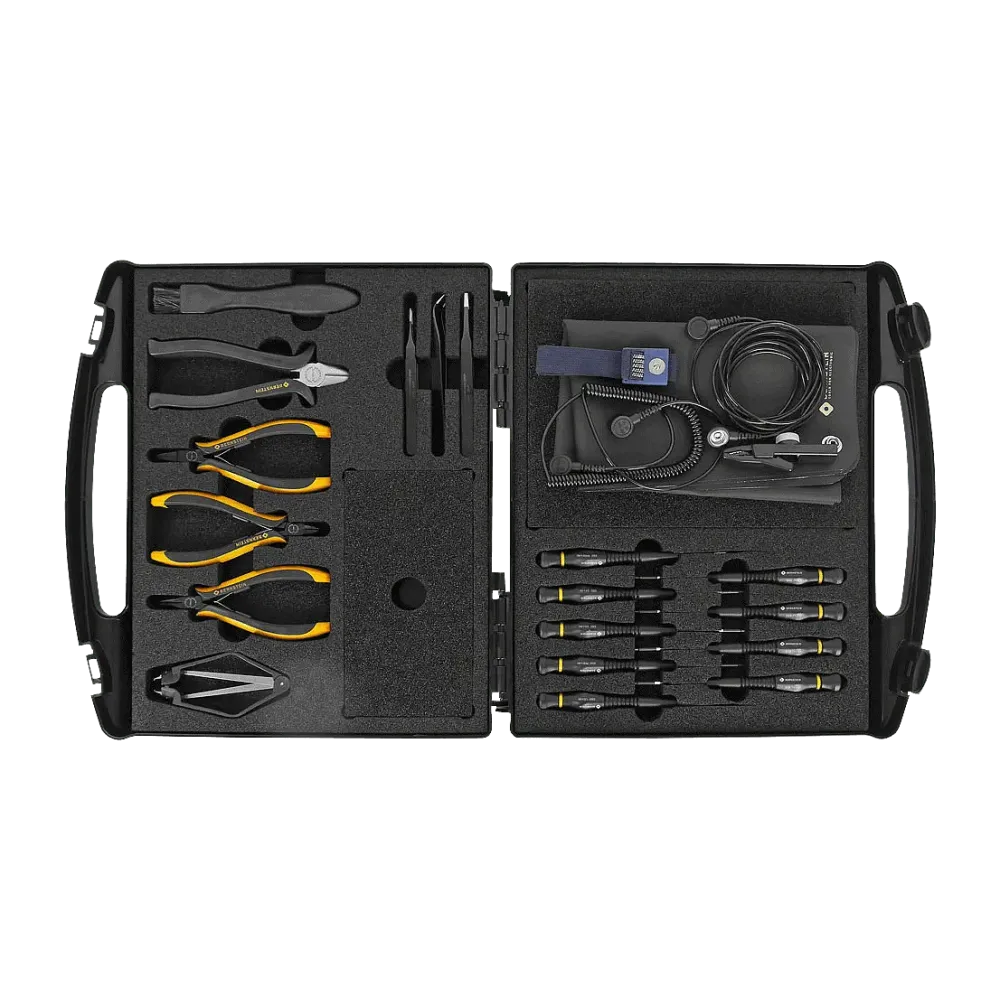

ESD professional set "TRENDY" 23 pieces

EPA suitable for electrostatically protected areas (ESD workplace/ESD protection zone). Professional tool set for the repair and maintenance of complex electronic components and assemblies.

Technical data

• with pliers from the EUROline series, contents: see parts list below
• Set for working on electronic components with mobile personal earthing
• with dissipative tools 10^6 - 10^9 Ohm, complies with standard DIN EN 61340-5-1
• Including dissipative work surface, contact wrist strap and earthing cable
• 1 empty compartment for individual equipment
• Conductive plastic case 10^2 to 10^5 Ohm
• Precisely fitting conductive foam insert
• Opening angle 180°
• Dimensions 350 x 310 x 65 mm
• Weight 1500 g

Scope of delivery:

• 2281 ESD conductive plastic case with foam insert empty
• 2-620 PLCC pulling tool
• 3-133-13 ESD side cutter 145mm dissipative
• 3-651-15 ESD Mini diagonal cutters EUROline Mini-Wate 120mm
• 3-682-15 ESD flat nose pliers EUROline smooth gripping surfaces 130mm
• 3-683-15 ESD needle nose pliers EUROline smooth gripping surfaces 130mm
• 4-603 ESD screwdriver slotted blade 1.5×0.25x60mm
• 4-605 ESD screwdriver slotted blade 2.0×0.4x60mm
• 4-606 ESD screwdriver slotted blade 2.5×0.4x60mm
• 4-621 ESD screwdriver Phillips PH000
• 4-622 ESD screwdriver Phillips PH00
• 4-623 ESD screwdriver Phillips PH0
• 5-049-13 ESD SMD tweezers 110mm shape 4 stainless steel dissipative
• 5-055-13 ESD SMD tweezers 120mm shape 7a stainless steel angle 40° dissipative
• 5-059-13 ESD SMD tweezers 120mm shape 2a stainless steel dissipative
• 6-661 ESD screwdriver TORX T5
• 6-662 ESD screwdriver TORX T6
• 6-663 L ESD screwdriver TORX T7 with hole
• 7-422 ESD brush Bristle width 20mm
• 9-354-100 ESD table covering 500x400x0.5mm 2 press studs
• 9-342-1 ESD contact bracelet
• 9-342-2 ESD spiral cable for wristband highly elastic 2.4m
• 9-343-1 ESD earthing cable 1 MOhm, 1500mm 2DK 10/10
• 9-353 ESD crocodile clip
