About the product

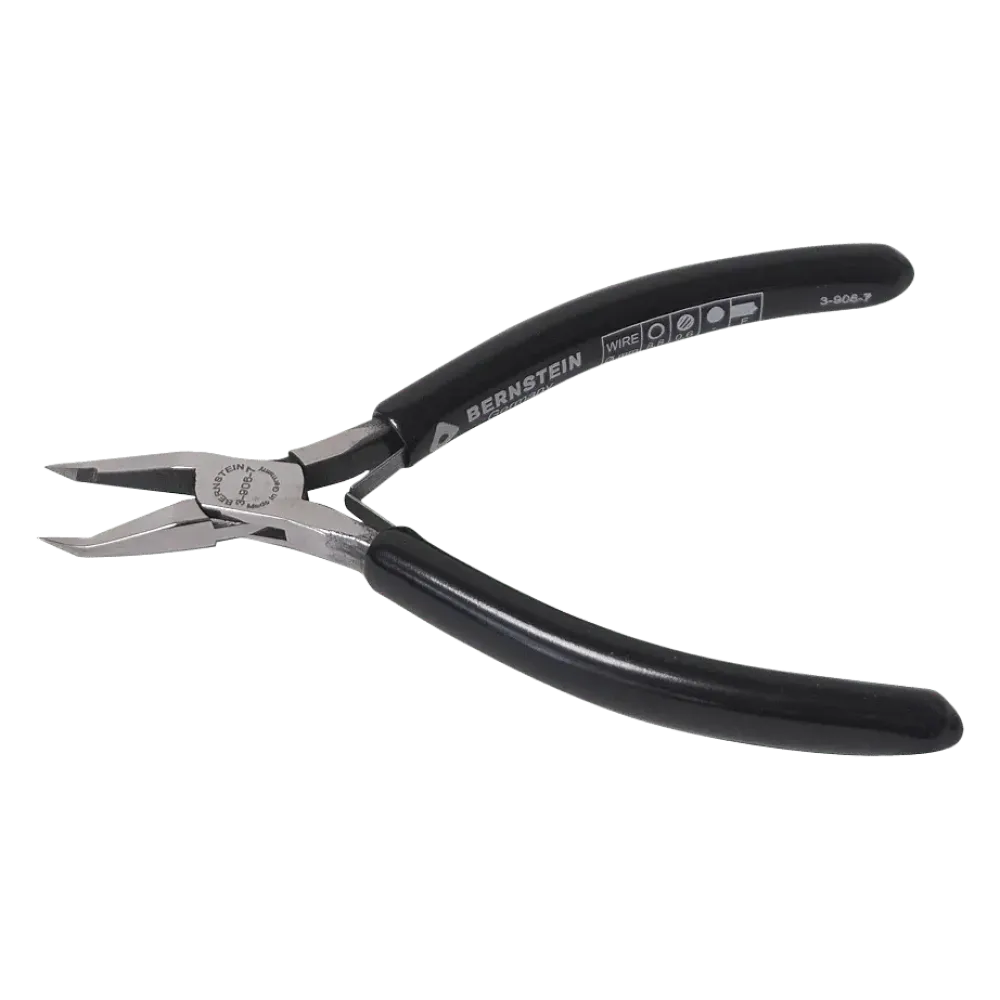

BLACKline pliers are characterized by their dip-insulated slim handles. The highly polished surface and the inlaid thread guarantee a long service life with good care. The very narrow pliers heads are ideal for working on delicate components.
For working in hard-to-reach places, for flush cutting. The pliers in this range have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for work in ESD-protected areas. Manufactured from special tool steel, mirror-polished, box joint, with conductive dip insulation and double leaf spring.
Technical data
- Mini-Wate (cut with small tip)
- Cutting value soft/medium/hard/piano Ø in mm: 0.8/0.6/0/0
- Head width 13 mm
- Cutting edges on the bevel 7 mm, total jaw length 25 mm
- Material Quality steel (HRC 56-58)
- High-gloss steel polished surface
- Handle dip insulation ESD non-slip, dissipative 3×10^7 Ohm
- Total length 125 mm
- Weight 75 g
Product specifications
| ESD safe | Yes |
| Weight | 75 g |
| Total length | 125 mm |
| Length of cutting edges | 7 mm |
| Max. cutting capacity medium hardness | 0.6 mm |
| Max. cutting capacity copper wire | 0.8 mm |
| Cut type | With bevel (pyramid-shaped cut) |
| Manufacturer | BERNSTEIN |
| Sets | No |
| Head width | 13 mm |
Data sheets
