About the product

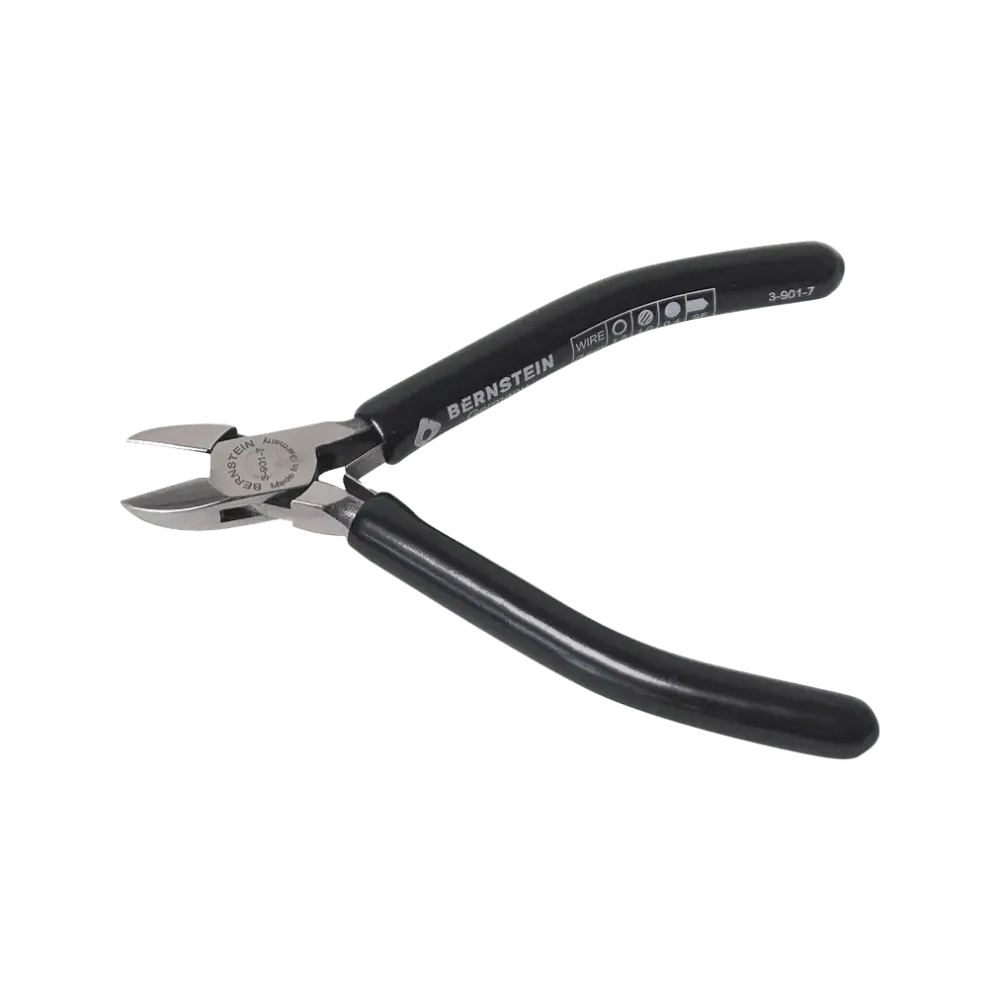

BLACKline pliers are characterized by their dip-insulated slim handles. The highly polished surface and the inlaid thread guarantee a long service life with good care. The very narrow pliers heads are ideal for working on delicate components.
The pliers in this range have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for work in ESD-protected areas. Manufactured from special tool steel, mirror-polished, box joint, with dissipative dip insulation and double leaf spring.
Technical data
- with bevel (pyramid-shaped cut)
- Cutting value soft/medium/hard/piano Ø in mm: 1.5/1.0/0.4/0
- Head width 12 mm
- Cutting edge length 10 mm
- Material Quality steel (HRC 56-58)
- High-gloss steel polished surface
- Handle dip insulation ESD non-slip, dissipative 3×10^7 Ohm
- Total length 115 mm
- Weight 65 g
Product specifications
| ESD safe | Yes |
| Max. cutting capacity hard wire | 0.4 mm |
| Max. cutting capacity copper wire | 1.5 mm |
| Max. cutting capacity medium hardness | 1 mm |
| Weight | 65 g |
| Total length | 115 mm |
| Length of cutting edges | 10 mm |
| Cut type | With bevel (pyramid-shaped cut) |
| Manufacturer | BERNSTEIN |
| Sets | No |
| Head width | 12 mm |
