About the product

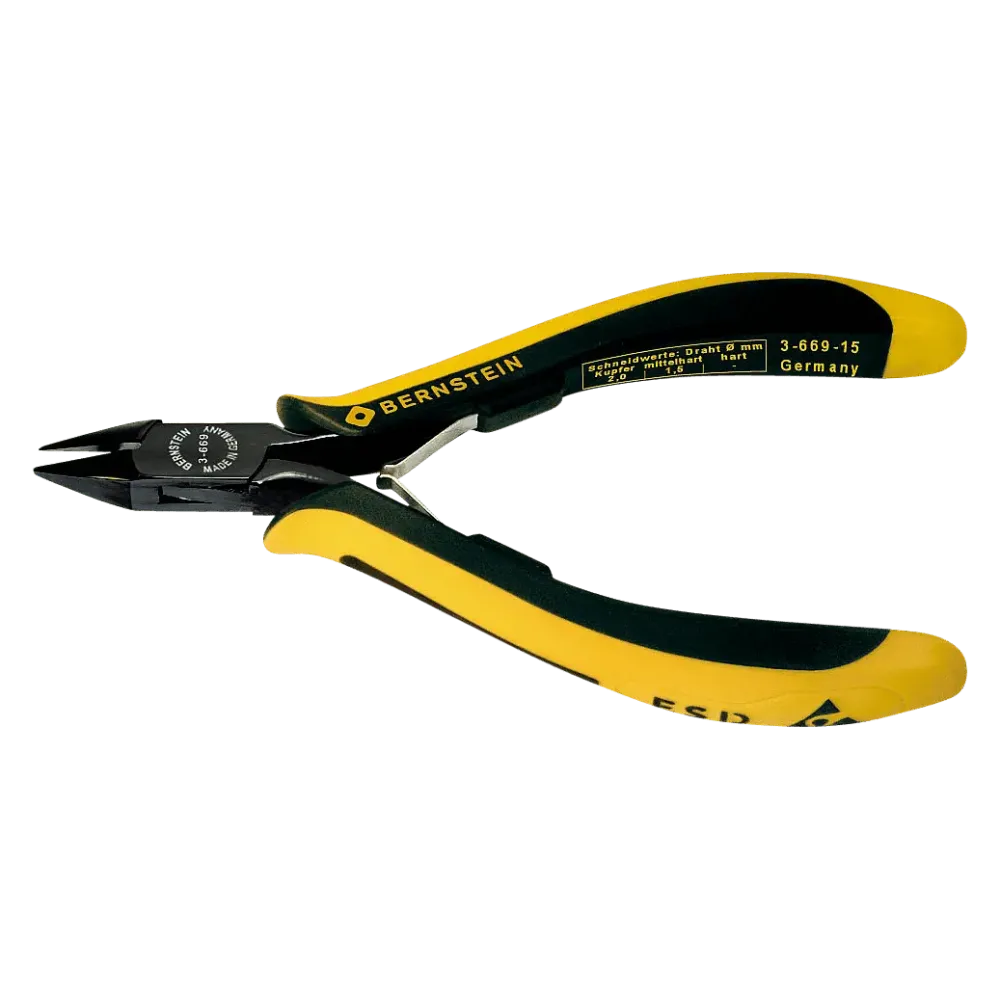

Made of special tool steel, highly polished burnished, box joint, with dissipative 2-component hand protection cover and replaceable double leaf spring.
The pliers in this range have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for work in ESD-protected areas.
Technical data
- Mini-Wate (cut with small tip)
- Cutting value soft/medium/hard/piano Ø in mm: 2.0/1.3/0/0
- Head width 14 mm
- Cutting edge length 17 mm
- Material Quality steel (HRC 56-58)
- High-gloss burnished surface
- 2-component ESD plastic handle, ergonomically shaped, dissipative between 10^6 and 10^9 Ohm
- Total length 135 mm
- Weight 110 g
Product specifications
| ESD safe | Yes |
| Weight | 110 g |
| Length of cutting edges | 17 mm |
| Head width | 14 mm |
| Max. cutting capacity copper wire | 2 mm |
| Total length | 135 mm |
| Cut type | With bevel (pyramid-shaped cut) |
| Manufacturer | BERNSTEIN |
| Sets | No |
| Max. cutting capacity medium hardness | 1.3 mm |
Data sheets
