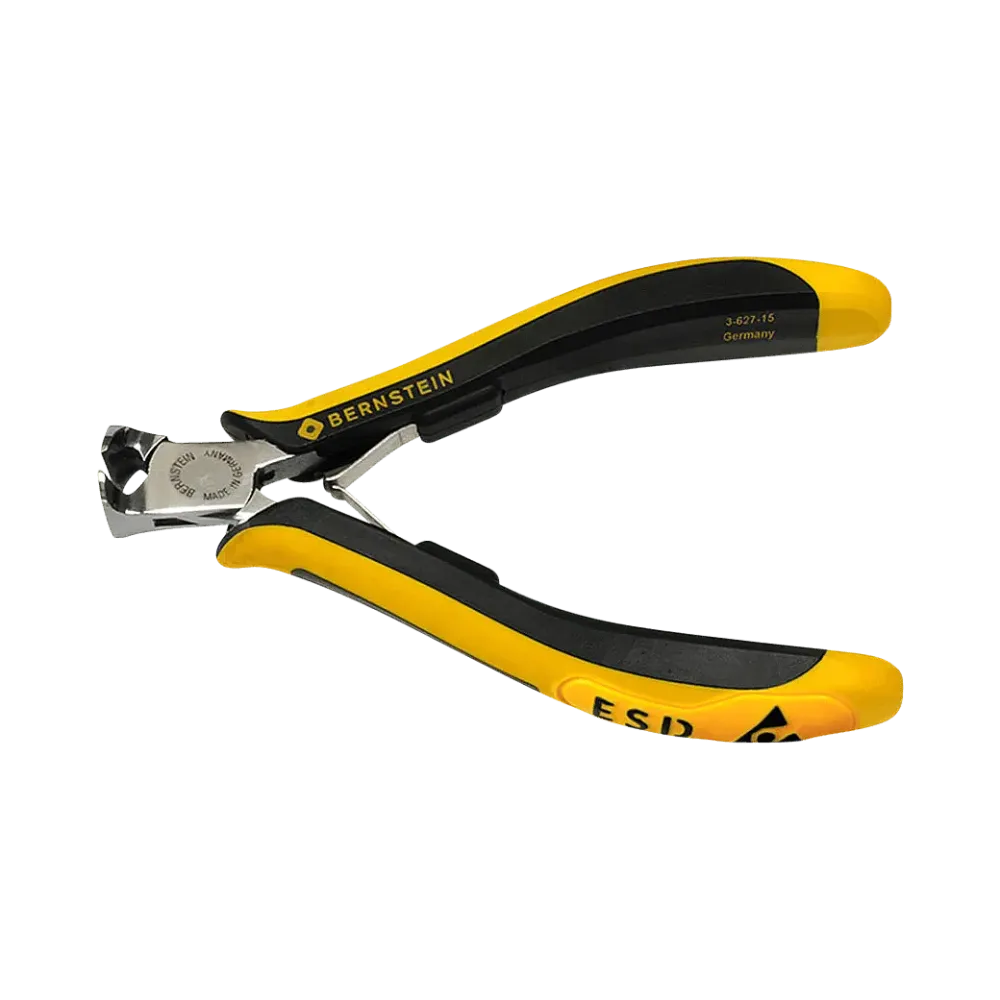

About the product
Made of special tool steel, mirror-polished, box joint, with dissipative 2-component hand protection cover and replaceable double leaf spring.
For flush cutting, for horizontal and vertical use. The pliers in this range have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for work in ESD-protected areas.
Technical data
- Mini-Wate (cut with small tip)
- Cutting value soft/medium/hard/piano Ø in mm: 1.5/0.8/0.5/0
- Head width 11 mm
- Cutting edge length 11 mm, width 17 mm
- Material Quality steel (HRC 56-58)
- High-gloss mirror polished surface
- 2-component ESD plastic handle, ergonomically shaped, dissipative between 10^6 and 10^9 Ohm
- Total length 120 mm
- Weight 90 g
Product specifications
| ESD safe | Yes |
| Length of cutting edges | 11 mm |
| Max. cutting capacity copper wire | 1.5 mm |
| Head width | 11 mm |
| Max. cutting capacity hard wire | 0.5 mm |
| Max. cutting capacity medium hardness | 0.8 mm |
| Total length | 120 mm |
| Cut type | With bevel (pyramid-shaped cut) |
| Manufacturer | BERNSTEIN |
| Sets | No |
| Weight | 90 g |
