Torque adapter set 9 pcs 0.1 to 0.6 Nm for 4 mm bits +bit adapter +handle

Turn your 4 mm C4 bit and a holder into your perfect torque tool. These small torque values are preset in the adapter and can be clamped between any standard holding tool and a bit. The clicking sound indicates when the torque has been reached. The adapter cannot be overtightened. When loosening the screw, there is no torque release (due to the blocked core shaft), so no additional loosening tool is required (30% higher torque when loosening). The adapter is primarily suitable for manual operation. In conjunction with a power tool, we recommend a maximum speed of 100 rpm, with minimum click repetition.

The torque adapters are often used as a complete solution for working on electronic devices, in quick-change systems, robot stations, aerospace, medical technology or simply on any workbench wherever exact torque is required.

Technical data

• Preset torques, contents: see parts list
• Tolerance +/-10% (factory certificate on request)
• Adapter Ø 8 mm, length 22 mm (without shaft)
• 6-kt. shank 4.0 mm
  . In conjunction with power tool max. speed 100 rpm.
• Bit magnetic holder 4.0 mm
• Material alloy steel HRC 43-48
• Plus 2 pieces bit adapter 1/4 inch to 4 mm in plastic Quadro box
• 1 bit holder made of aluminum, 1 bit holder made of chrome-plated steel
• In plastic quadro box (91x43x15mm)
• Weight 108 g

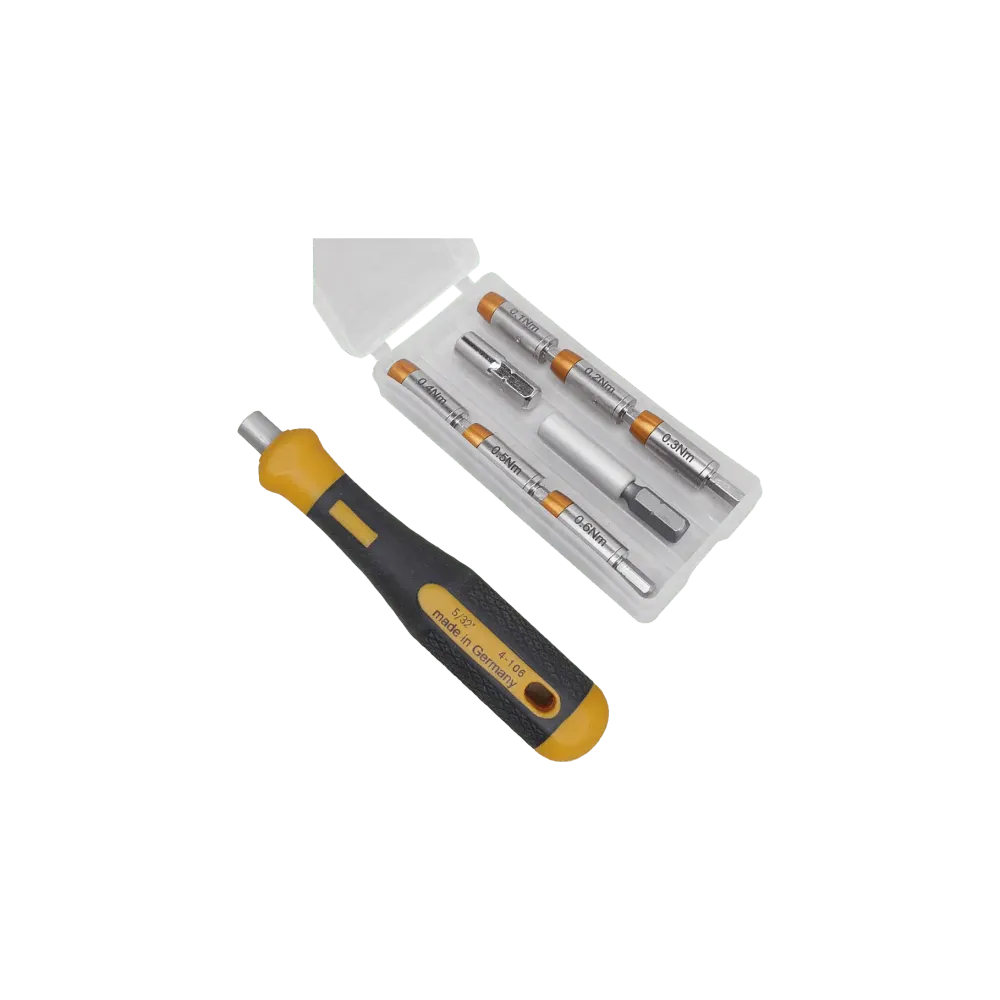

Scope of delivery

• 4-971 Torque adapter 0.1Nm, for 4 mm bits
• 4-972 Torque adapter 0.2Nm, for 4 mm bits
• 4-973 Torque adapter 0.3Nm, for 4 mm bits
• 4-974 Torque adapter 0.4Nm, for 4 mm bits
• 4-975 Torque adapter 0.5Nm, for 4 mm bits
• 4-976 Torque adapter 0.6Nm, for 4 mm bits
• 4-564 Bit adapter 1/4 inch, 4 mm bits, length 42.5 mm
• 4-566 Bit adapter 1/4 inch, 4 mm bits, length 25 mm
