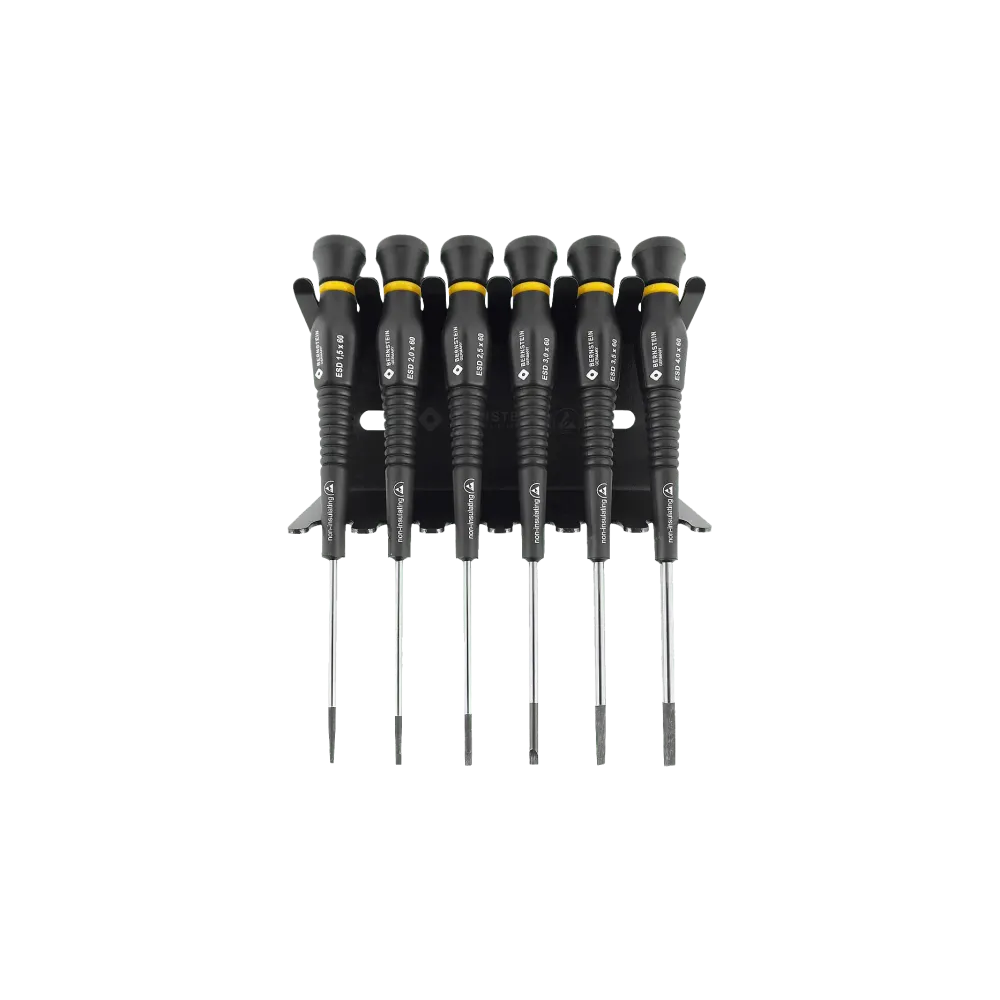

ESD screwdriver set 6 pcs (incl. ESD tool holder)

For all work on electrostatically sensitive components. The blades are made of quality steel to ensure torsion resistance - under maximum stress. The tips are burnished for dimensional stability and to prevent chrome chipping (except socket wrenches). The rotating cap is smooth-running and allows the screwdriver to be held in position despite tightening pressure. Thanks to the ergonomically shaped handle, the screwdriver fits perfectly in the hand.

The ergonomic handle of the screwdriver is made of ESD plastic (PP black) and has a surface resistance of 10^5 to 10^7 Ohm. The matt chrome-plated blade is made of high-quality chrome-molybdenum steel (hardness greater than 55 HRC) in accordance with DIN ISO and hardened over its entire length.

Technical data

• dissipative ESD handle with rotating cap (conductivity 10^5 to 10^7 Ohm)
• Holder made of sturdy sheet steel, ESD dissipative coating
• Slotted blades 1.5-2.0-2.5-3.0-3.5-4.0 mm
• Blade material Chrome-vanadium-molybdenum steel, matt chrome-plated
• Tip burnished black, manufactured according to DIN ISO
• Dimensions 125 x 70 x 55 mm
• Weight 277 g

Scope of delivery

• 4-600-0 ESD tool holder for screwdrivers
• 4-603 ESD screwdriver slotted blade 1.5×0.25×60 mm
• 4-605 ESD screwdriver slotted blade 2.0×0.4×60 mm
• 4-606 ESD screwdriver slotted blade 2.5×0.4×60 mm
• 4-607 ESD screwdriver slotted blade 3.0×0.5×60 mm
• 4-608 ESD screwdriver slotted blade 3.5×0.6×60 mm
• 4-609 ESD screwdriver slotted blade 4.0×0.8×60 mm
