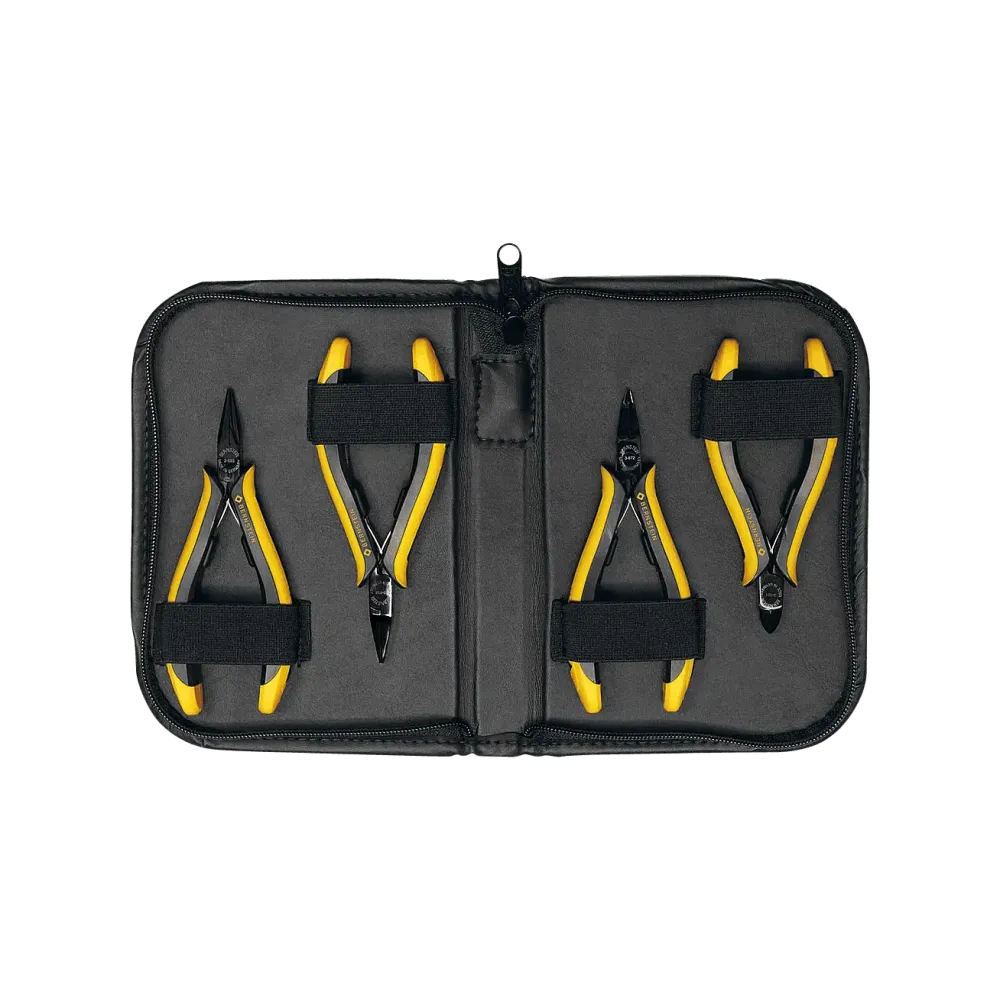

ESD pliers set EUROline 4-piece (incl. ESD bag)

Made of special tool steel, highly polished burnished, box joint, with dissipative 2-component hand protection cover and replaceable double leaf spring.

The pliers in this range have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for work in ESD-protected areas.

Technical data

• Diagonal cutters with bevel, cutting value soft/medium/hard/piano Ø in mm: 1.5/0.8/0/0
• Tip cutter with bevel Cutting value soft/medium/hard/piano Ø in mm: 0.8/0.6/0/0
• Head width approx. 10 mm
• Material Quality steel (HRC 54-58)
• Special burnished surface, glare-free
• 2-component ESD plastic handle, ergonomically shaped, dissipative between 10^6 and 10^9 Ohm
• in dissipative zipper pocket
• Dimensions 190 x 135 x 35 mm
• Weight 355 g

Scope of delivery

• 3-680-0 ESD dissipative zipper pocket 4 empty compartments
• 3-651-15 ESD Mini diagonal cutters EUROline Mini-Wate 120 mm
• 3-672-15 ESD tip cutter EUROline Mini-Wate 130 mm
• 3-682-15 ESD flat nose pliers EUROline smooth gripping surfaces 130 mm
• 3-683-15 ESD needle nose pliers EUROline smooth gripping surfaces 130 mm
