About the product

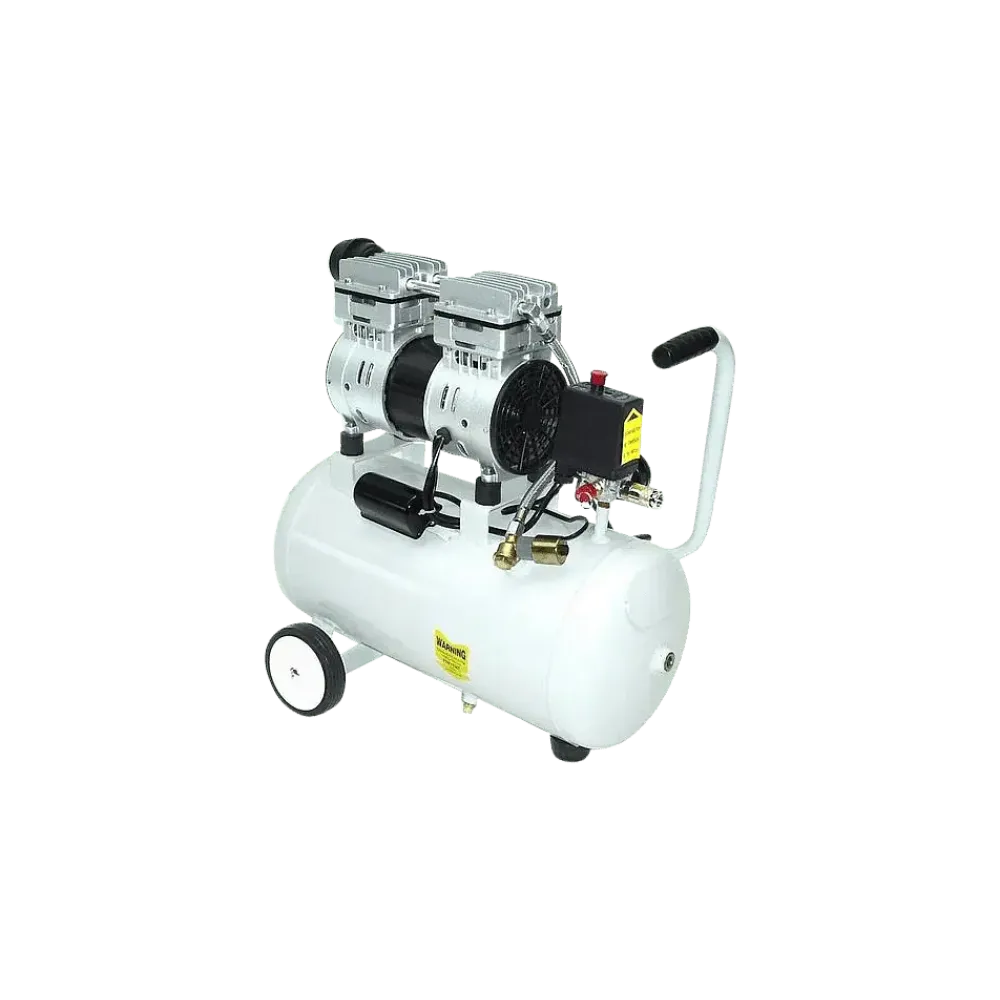

Whisper-quiet air compressor for workshops and trades.
Direct-coupled, low-speed 2-cylinder piston units arranged in rows. The units are directly coupled and arranged in rows to achieve greater efficiency. Furthermore, the units are made of die-cast aluminum and stainless steel valves, which ensures a long service life and whisper-quiet operation. In addition, the slow-running compressors significantly reduce wear on pistons, bearings and sealing rings, resulting in greater durability. The large fan wheel and large cylinders ensure optimum cooling of the units. Each unit is equipped with a pressure gauge for the boiler pressure as standard to ensure precise control.
Technical data
- Motor power W / PS: 750W / 1PS
- Discharge capacity / suction capacity l/min: 60/105
- Sound power level approx.: 64 dB(A)
- Boiler max. pressure: 8 bar
- Boiler capacity ltr.: 24 l
- Max. operating pressure: 8 bar
- Cylinders/stages: 2/1
- Mains voltage V/Hz: 230V, 50Hz
- Speed rpm approx.: 1440
- Dimensions approx. (lxwxh): 65 x 32 x 57 cm
- Oil-free
- Weight: 19kg
Product specifications
| Tool type | Air compressor |
