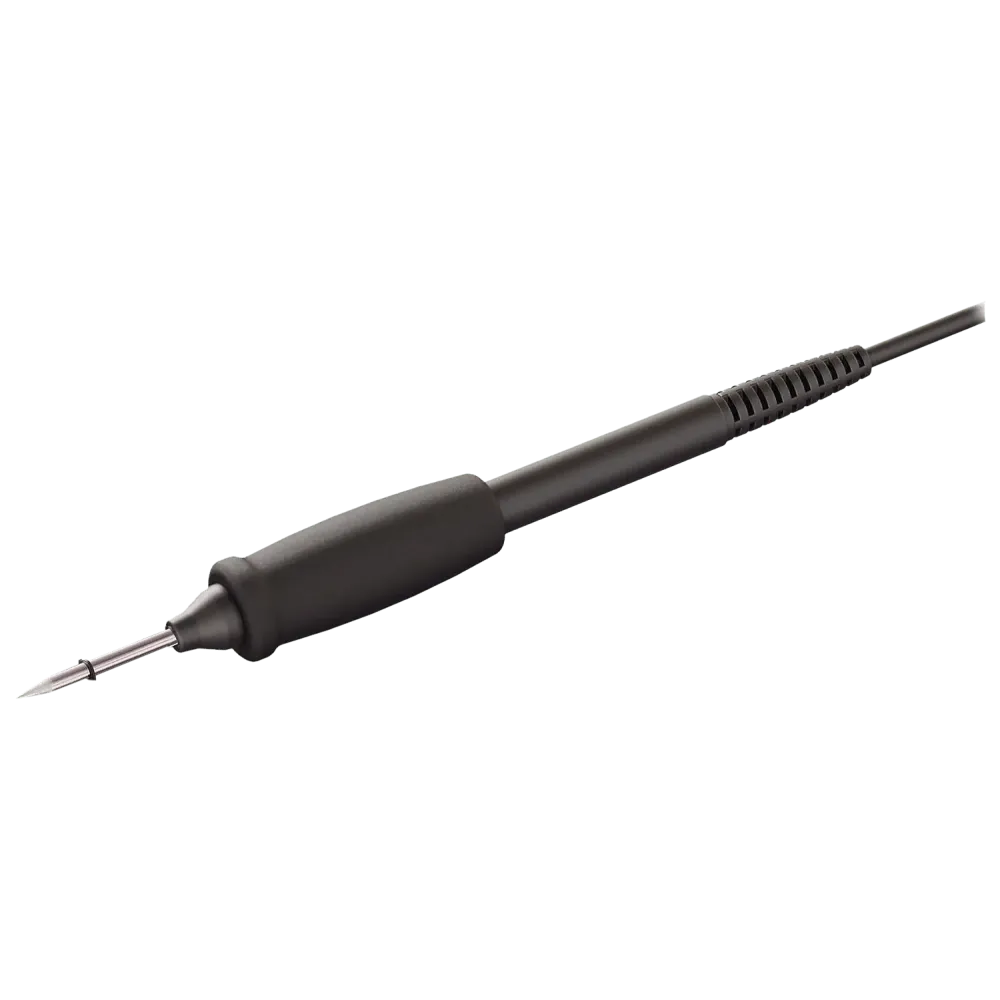

Metcal MicroFine soldering handpiece for use with CV series systems
Metcal MicroFine soldering handpiece for use with CV series systems
Metcal MicroFine soldering handpiece for use with CV series systems
Metcal MicroFine soldering handpiece for use with CV series systems

Item ID: 49736

Metcal MicroFine soldering handpiece for use with CV series systems

Delivery at your place between May 21 and Jun 25 2025
Add to cart

About the product

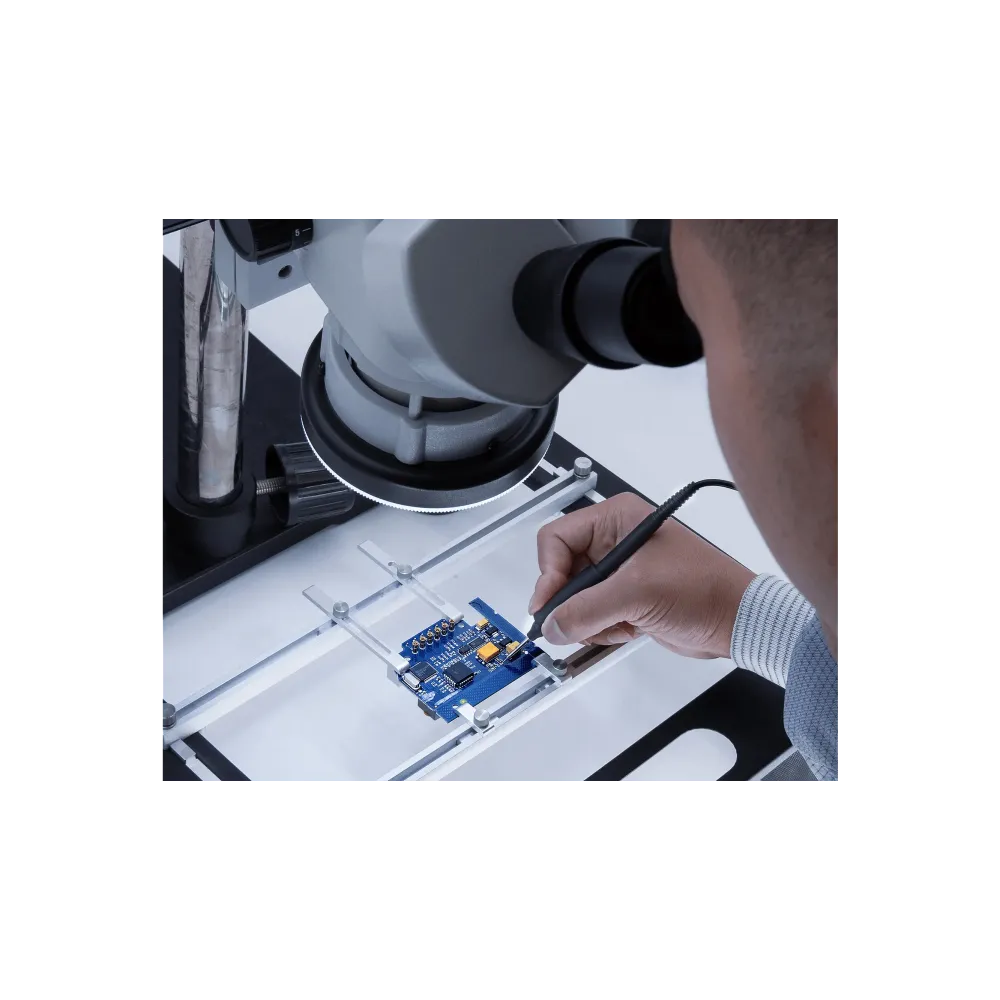

  • MicroFine Solder Handpiece for Connection Validation (CV) systems, specially developed for work under the microscope.
  • Compatible with Metcal MFTC cartridges
  • MicroFine tips are available in chisel, conical, curved and hoof geometries
  • The tips are available in the 600 (357 °C) and 700 (413 °C) series
  • The soldering temperature is defined by Metcal SmartHeat® Inductive Heating Technology, always only as much as the solder joint needs for an optimum soldering process
  • TO THE MATCHING TIPS
Scope of delivery
  • CV-H9-MFH MicroFine handpiece for CV systems (without tip)

Product specifications

ESD safe Yes
Sets No
Manufacturer Metcal
Product series CV
Tool type Soldering iron
Tip/nozzle type MFTC
