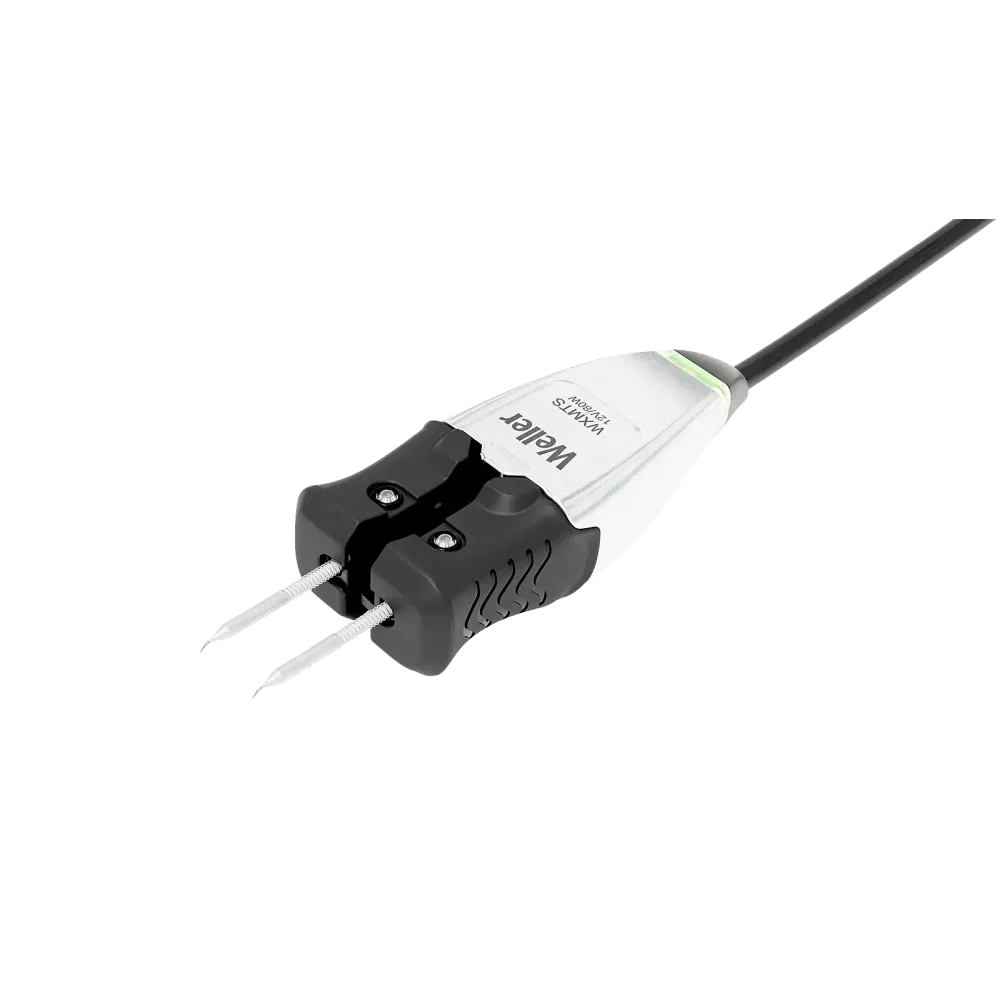

Micro desoldering tweezers WXMTS with safety rest

• Visual process control through RGB signal function: Simple identification of tools. Color customization possible. (Choose between 12 colors)
• Maximum protection: According to military standard, Mil-Spec compliant and fully compliant with IPC industry standards (IPC - TM-650 2.5.33 Measurement of Electrical Overstress from Soldering Hand Tools)
• High performance / high productivity: Extremely short heat-up time: 5 seconds; Excellent response time
• Highest precision during the soldering process due to short distance between tip and handle and optimized tip design; Precise positioning due to unique parallel sliding block guide; No alignment after tip change due to paired design (pre-aligned tips) > Time saving > increases productivity); Adjustment functions with Allen key: 1.5 mm possible if required (±80° rotation angle adjustment + vertical length adjustment of ±1.2 mm); Intelligent desoldering tweezer tips (enables automatic tip offset)
• Cost savings thanks to the unique intelligent 2-in-1 desoldering tweezers 80 W, 12 V: Compatible with Smart Pico (soldering or reworking SMDs such as 0402, 0201, 01005) & Smart Micro desoldering tweezers for use under the microscope. (Saves one tweezer handle)
• Can be connected to: WXsmart control unit; WSR 210 safety shelf; RTWMS / RTWPS desoldering iron range
• Quick desoldering tweezer change: The Active Tip Cartridge System enables easy replacement of the soldering tip, even with hot desoldering tweezers, without the need for an additional tool or further adjustment.
• Ergonomics: Improved comfort and safe handling thanks to new ergonomic soft grips.
• Integrated parameter memory: standby temperature and automatic switch-off time can be easily saved in the soldering iron; parameters only need to be saved once; the desoldering tweezers can be used with any WXsmart station.

Technical data

• Soldering tip family: RTWMS, RTWPS
• Supply unit: WXsmart
• TO THE MATCHING TIPS

Scope of delivery

• WXMTSMicro desoldering tweezers WXMTS 2 x 40 W, 12 V (handpiece without soldering tip) for Active-Tip heating element technology
• RTWMS 030 KRTWMS micro soldering tip pair blade 3 x 1 mm

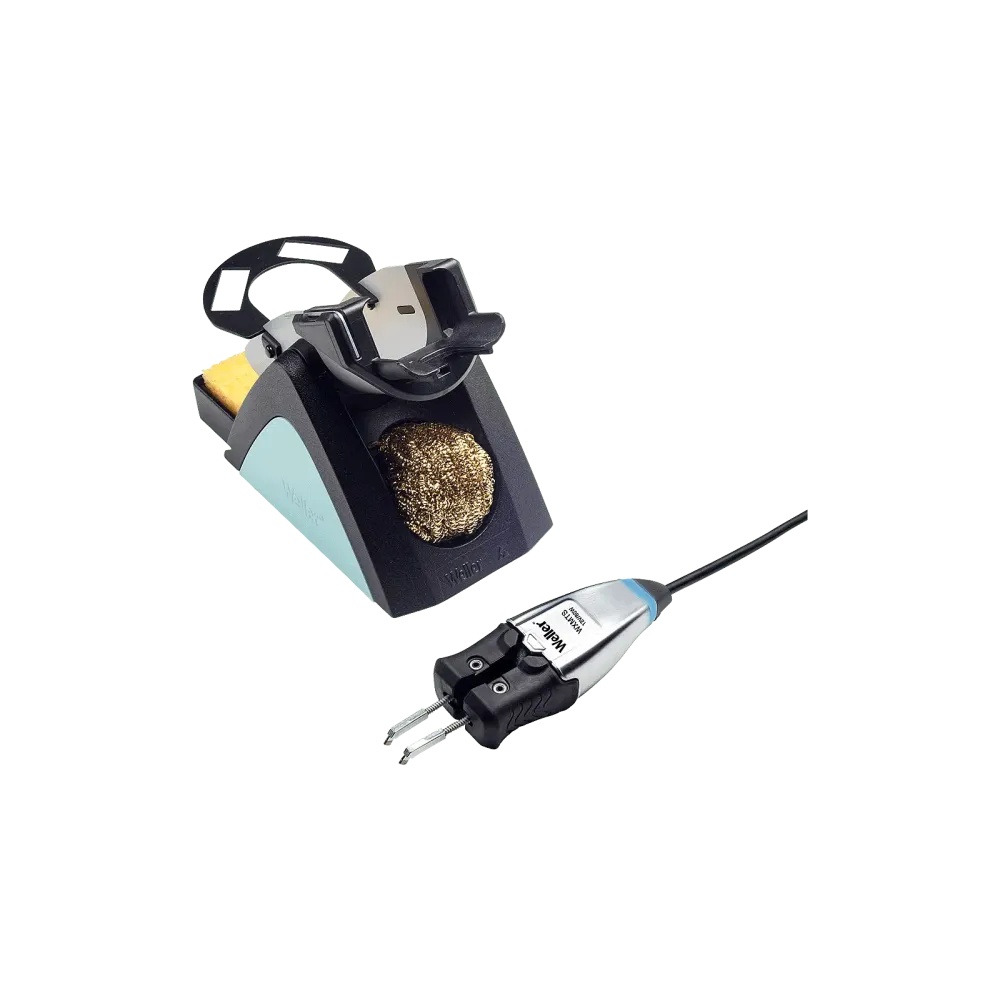

• WSR 2102-in-1 safety shelf with brass wool and cleaning sponge
