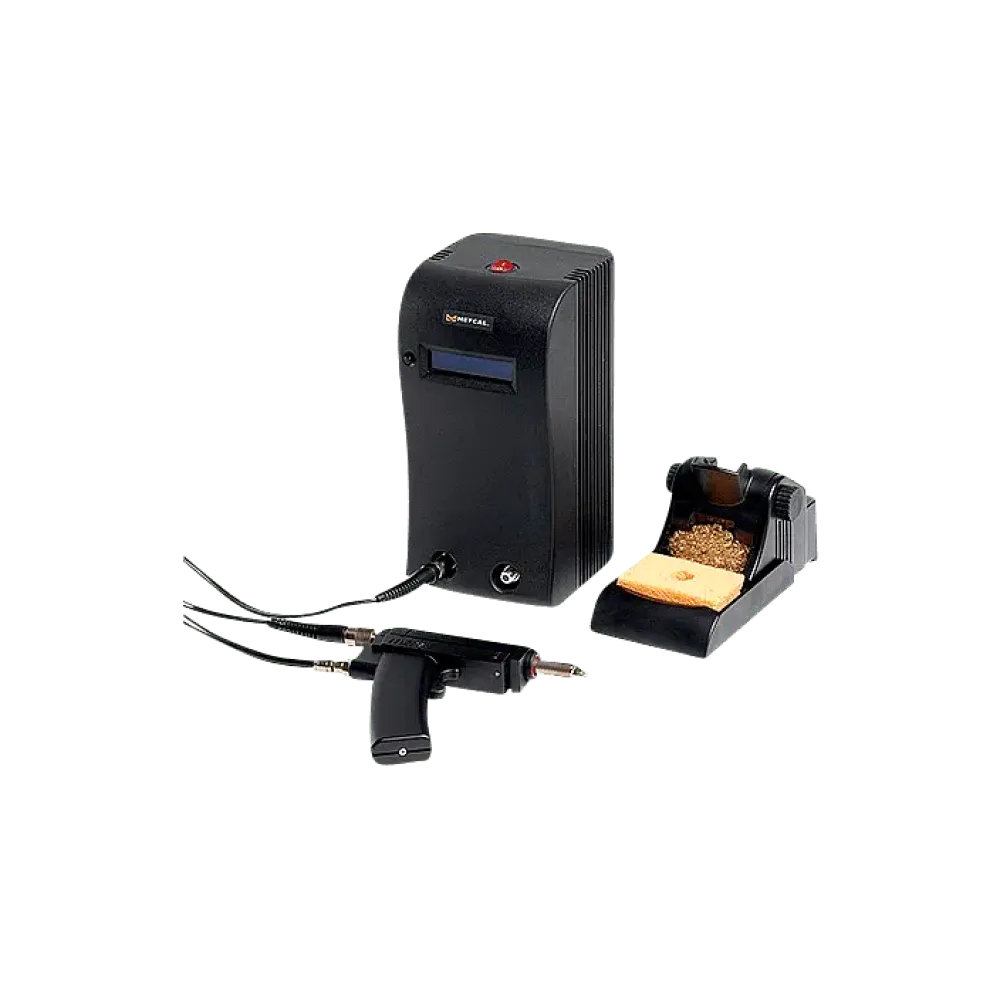

MX-5250 Metcal soldering and rework system 2-channel

The MX-5200 soldering, desoldering and rework series has higher performance and process control with two simultaneous connections for two users or a single user with two applications.

The MX-5200 can be operated with two handpieces, which dynamically share the 80 watt output power as required, resulting in even more application flexibility and speed.

Technical data

• Can be operated with two handpieces. These share the 80 watts of output power dynamically as required, resulting in greater application flexibility and speed.
• Microprocessor-controlled power supply that provides more power for challenges such as high mass components, multilayer PCBs and lead-free solder.
• Improved ergonomics with lightweight handpieces.
• Better process control with SmartHeat® technology.
• ESD-safe with a circuit for monitoring the incoming AC ground.
• Built-in power meter with digital display and bar graph that provides the operator with dynamic feedback on the status of the soldering process.
• Metcal TipSaver™ Workstand improves the service life of soldering tips with its "Auto-Sleep" function.

Scope of delivery

• MX-PS5200: Double soldering station MX - 5200
• MX-DS1: Desoldering handpiece for MX systems
• MX-DAH4 ESD air hose for desoldering handpiece
• MX-RM8E Desoldering handpiece cable for MX-DS1
• MX-W5DSTip Saver work stand for desoldering handpiece
• MX-CP1Pad for removing the cartridge
• AC-TCDesoldering iron cleaner
• MX-DCF1Chamber liners (pack of 15) and smoke/flux filter (pack of 6)
• Tips/cartridges available separately
