About the product

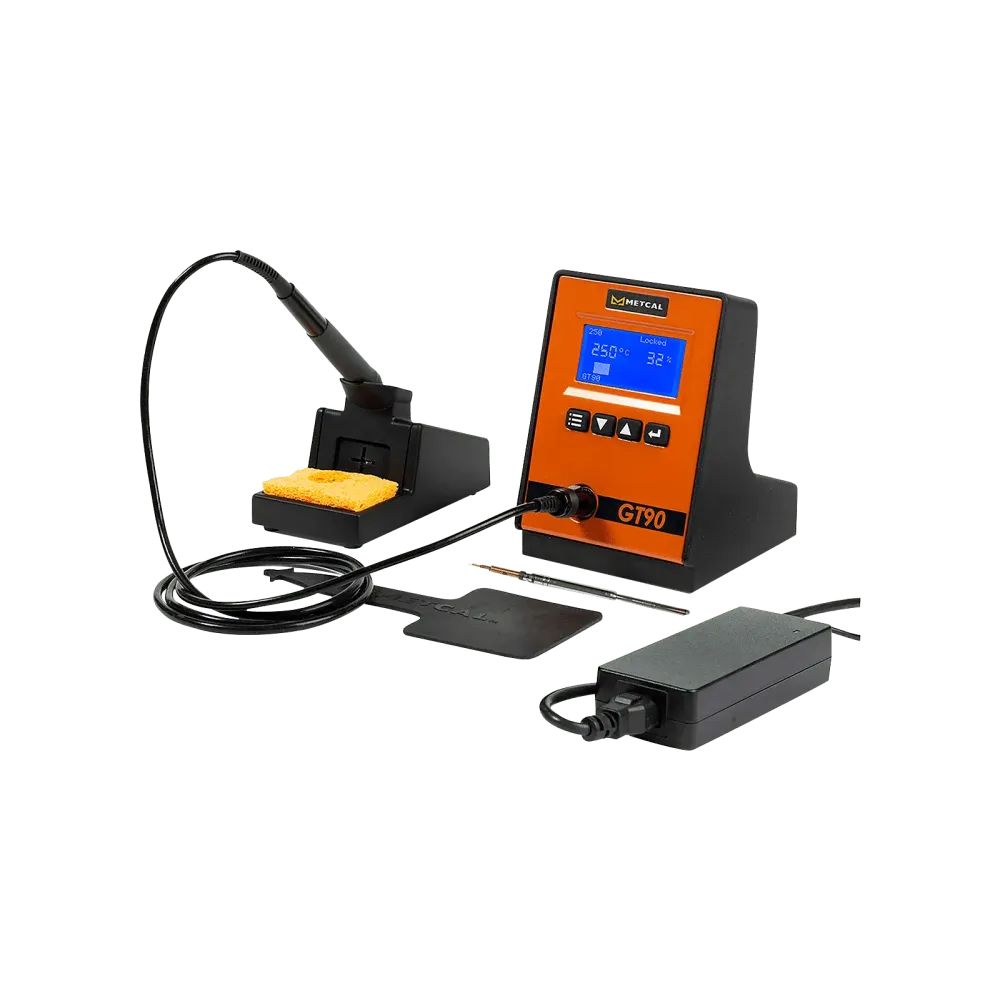

The GT90 soldering system is an adjustable temperature soldering station that uses induction technology as the heating mechanism. The complete system includes a soldering station with external power supply, a handpiece and a work stand to support a variety of soldering and rework applications using the associated tips and cartridges.
The GT90 is a soldering station with one connection and the best performance in its class. It has an output of 90 watts and is ideal for applications with only one soldering iron in the production line. The GT90 comes with an interchangeable 90 watt external power supply that allows for a more compact design to save bench space and improve the quality and life of the system.
Technical data
- 90 W soldering system
- Induction heating systems with best-in-class performance
- Adjustable temperature
- Intuitive user interface with 4 buttons
- Large selection of cartridge and tip options
- Compact design to minimize the space required on the workbench
- Programmable password lock and temperature range limits
- Standby and sleep settings to extend the service life of the tip
- USB port for power supply for accessories and firmware updates
Scope of delivery
- GT90 Power Station with adapter
- GT-HP-T4UF: Handpiece
- GT-HC-T4: Heating cartridge
- GT-WS: Work stand

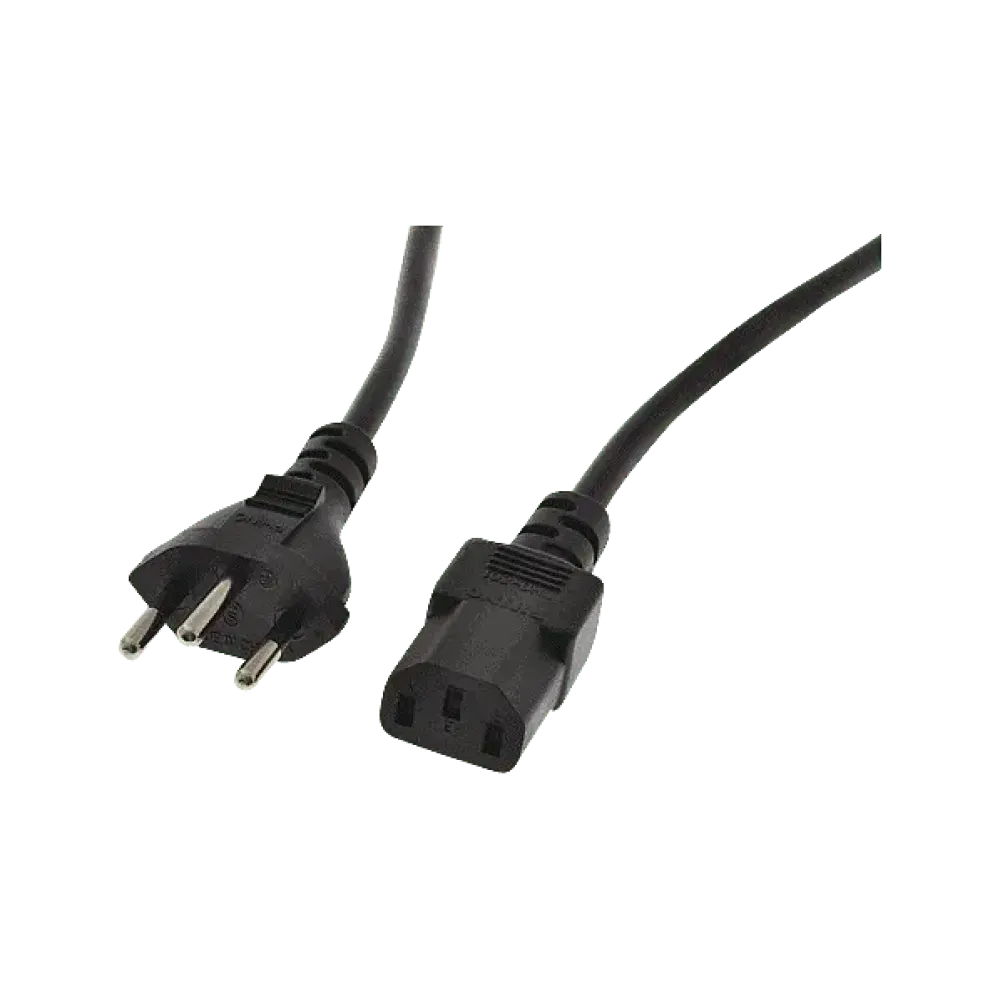

- CH Mains cable
Product specifications
| Channels | 1 |
| Power | 90 W |
| Sets | Yes |
| ESD safe | Yes |
| Manufacturer | Metcal |
| Product series | GT |
| Temperature range | 200°C to 450°C |
