About the product

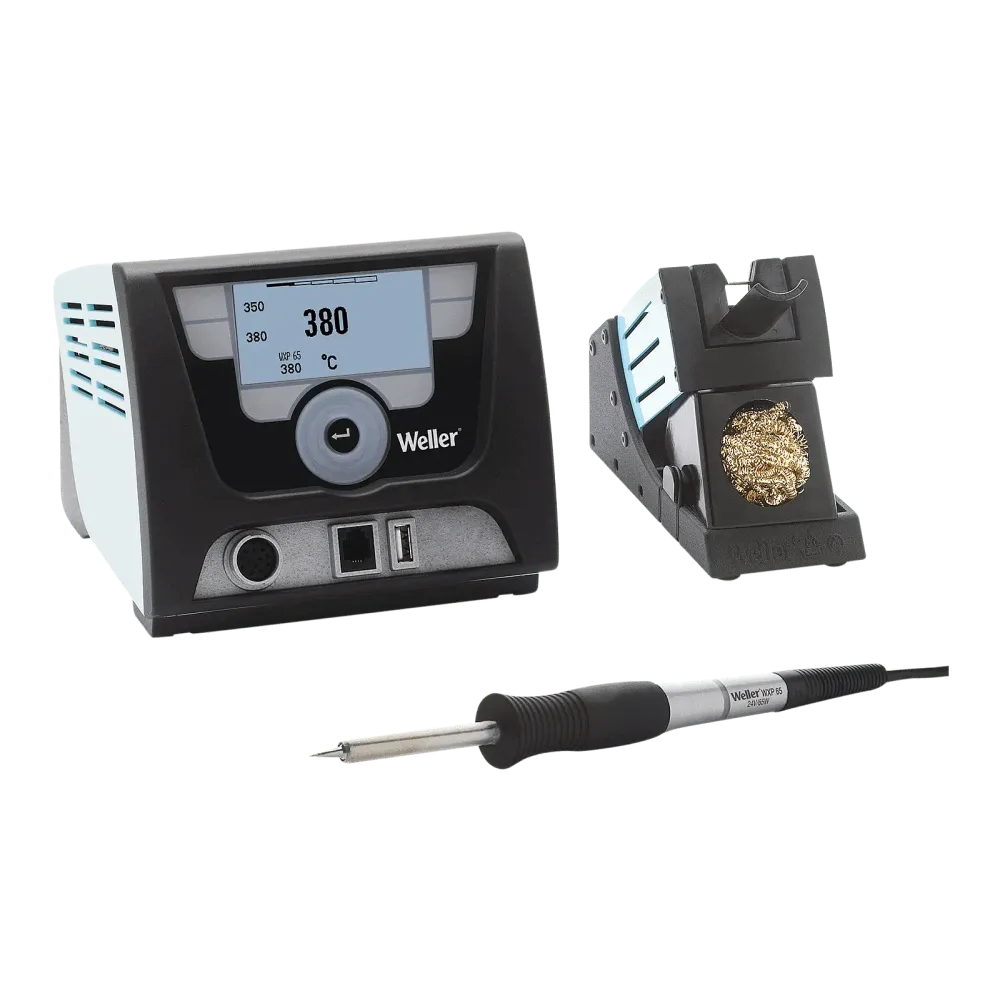

- 1-channel supply unit WX 1 with soldering iron WXP 65 (WX1012)
- Blue LED ring light (off = off, flashing = standby, on = ready for use)
- The WX soldering irons heat up in a very short time and are ready for immediate use
- The robust touchscreen is a capacitive operating panel made of real glass. It is antistatic and temperature-resistant. The rotary click wheel with confirmation button enables intuitive operation.
- Thanks to an integrated sensor, WX tools only switch on when there is movement. Energy is consumed when the tools are actually in use. Connected accessories are shut down in standby mode
Technical data
- Tools/accessories can be connected: WXMP, WXMT, WXP 65, WXP 80, WXP 120, WXP 200, WXSB 200, WXP 90
Scope of delivery

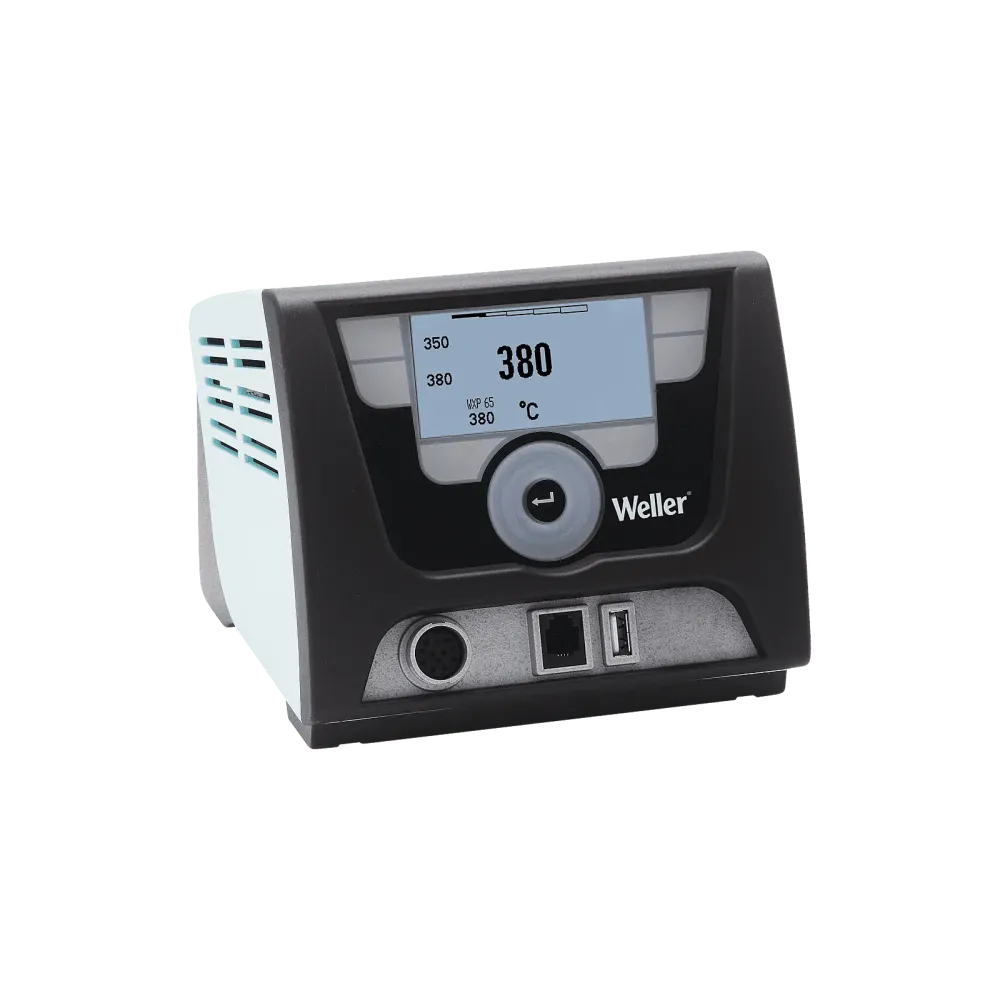

- WX 11-channel soldering station

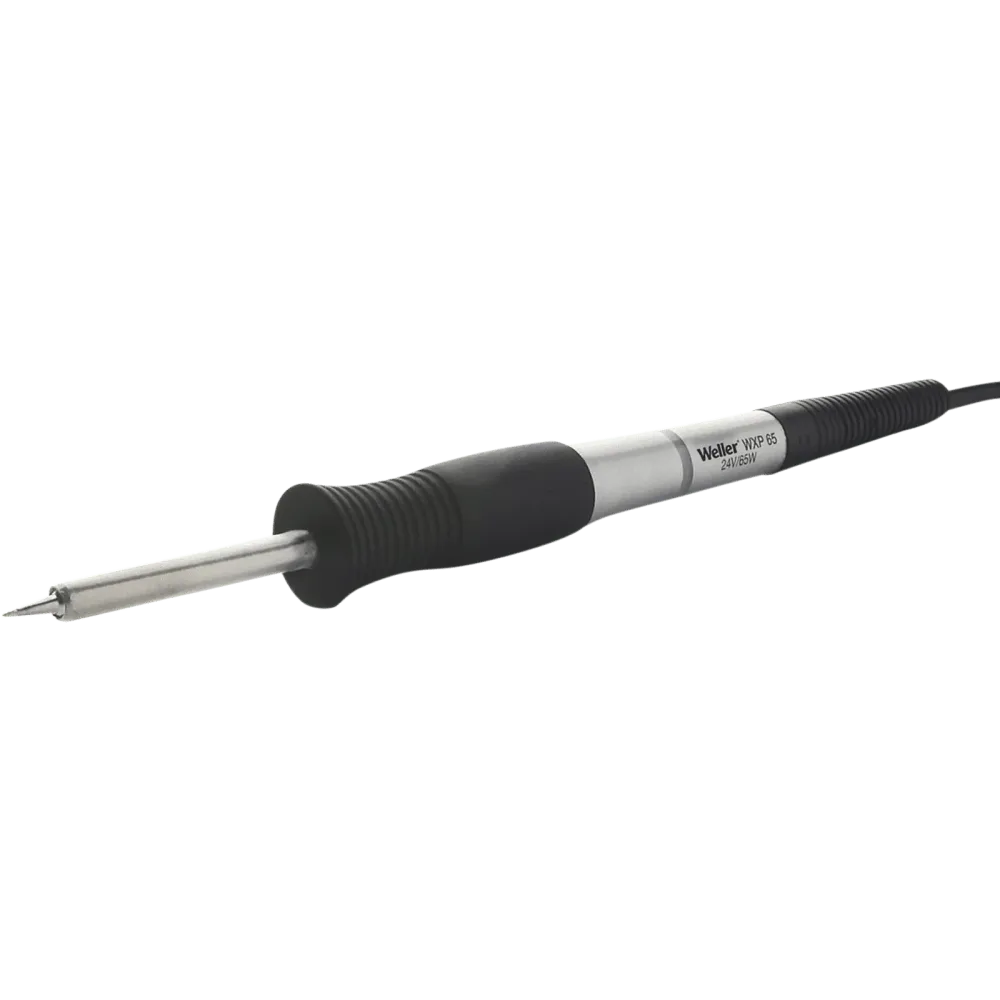

- WXP 65Soldering iron 65 W, 24 V with power-response heating element technology

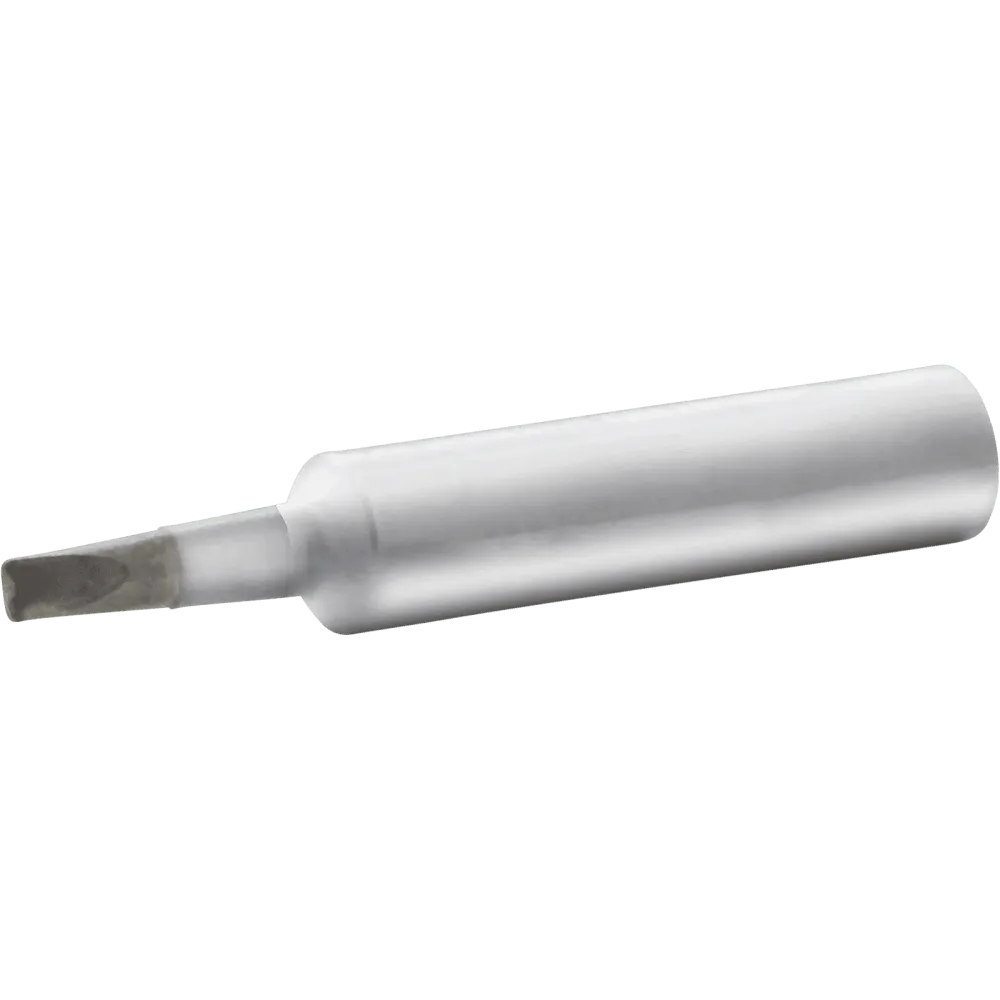

- XNT ASoldering tip chisel shape 1.6 x 0.4 mm
- WDH 10Safety shelf with brass wool

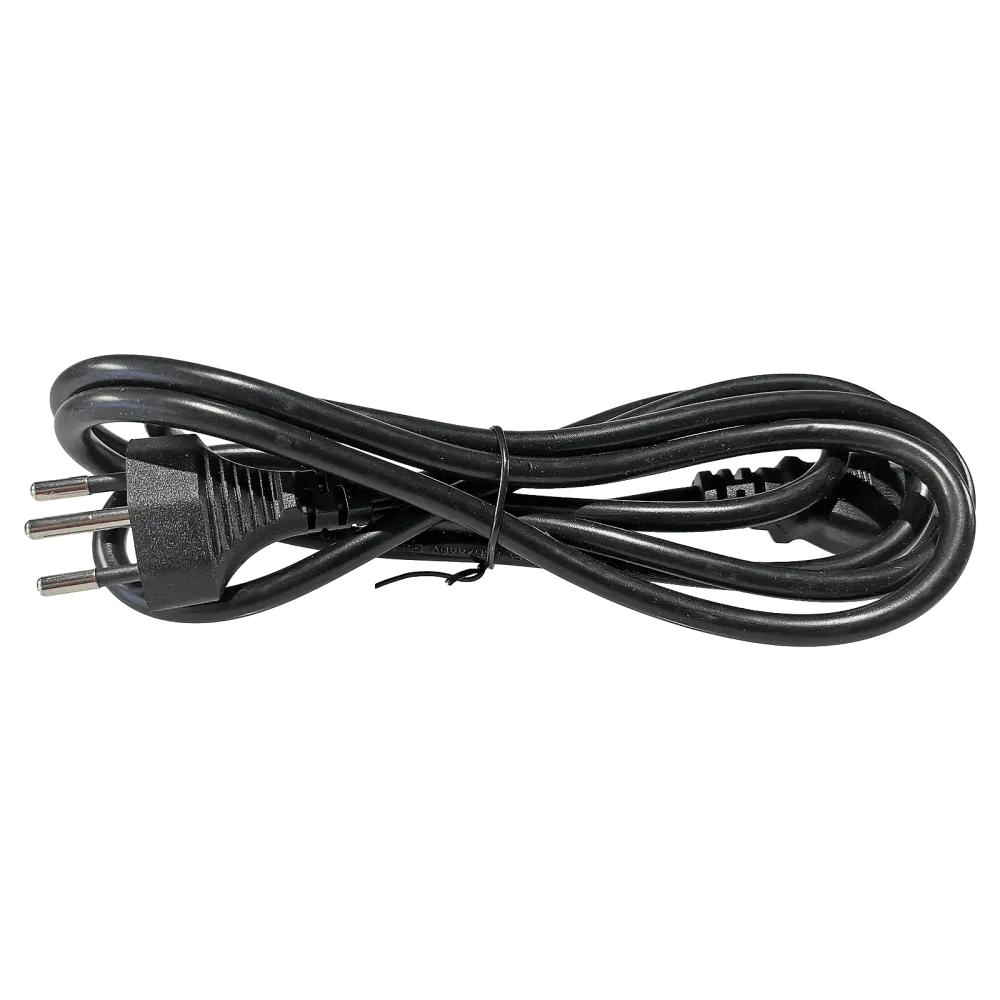

- CH Mains cable
Product specifications
| Channels | 1 |
| Power | 200 W |
| Manufacturer | Weller |
| Sets | Yes |
| ESD safe | Yes |
| Product series | WX |
| Temperature range | 100°C to 550°C |
