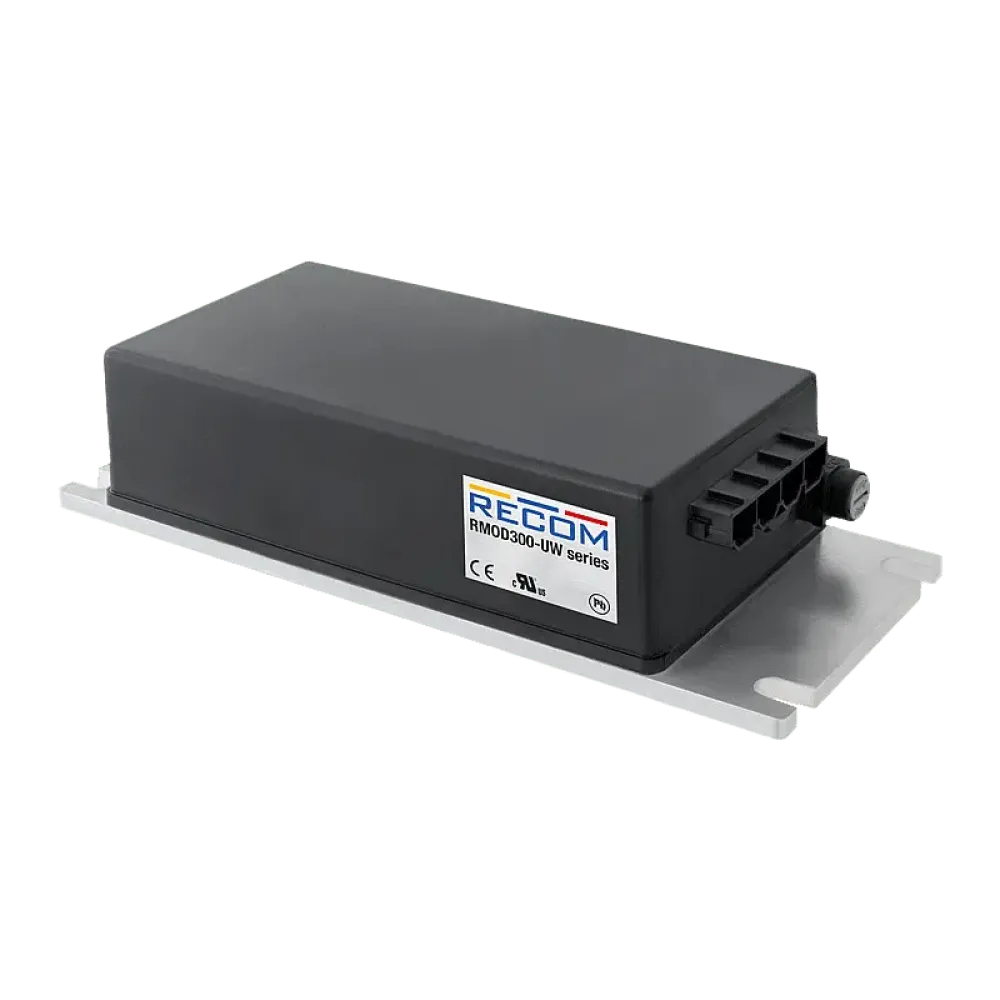

300W Off Highway Vehicle DC/DC converter In: 18...106Vdc / Out 24.5Vdc/12.1A, IP67

The 300 Watt DC/DC converters of the RMOD300-UW series are designed for small electric vehicles and electric boats, construction vehicles, AGVs and material handling applications. The RMOD families are extremely robust plug & play modules used to generate the 12.2V / 13.7V or 24.5V low voltage grid from the vehicle's traction battery. The device operates with a 6:1 input voltage range to cover the input voltage range of 18-106VDC for nominal 24/36/48V/60/80V in an input range with isolated and regulated output. The converter has a constant and high efficiency and allows a wide operating temperature range from -40°C to +75°C. Input reverse polarity protection and inrush current limitation, UVLO, output OCL, SCP, OVP, OTP, round off the functionality of this plug & play device. Note: RMOD300-UW with Vin <27VDC only 200 Watt available, realized with active line derating

Technical data

• Ultra-wide input voltage range (18-106VDC)
• Operating temperature range: -40°C to +75°C
• Reverse polarity protection at the input
• Protective functions: Input UVLO, output OCL, SCP, OVP, OT
• Parallel operation possible
• Integrated fuse holder
• DEUTSCH DTP connector (IP67)
• 2-year guarantee
