Item ID: 49519

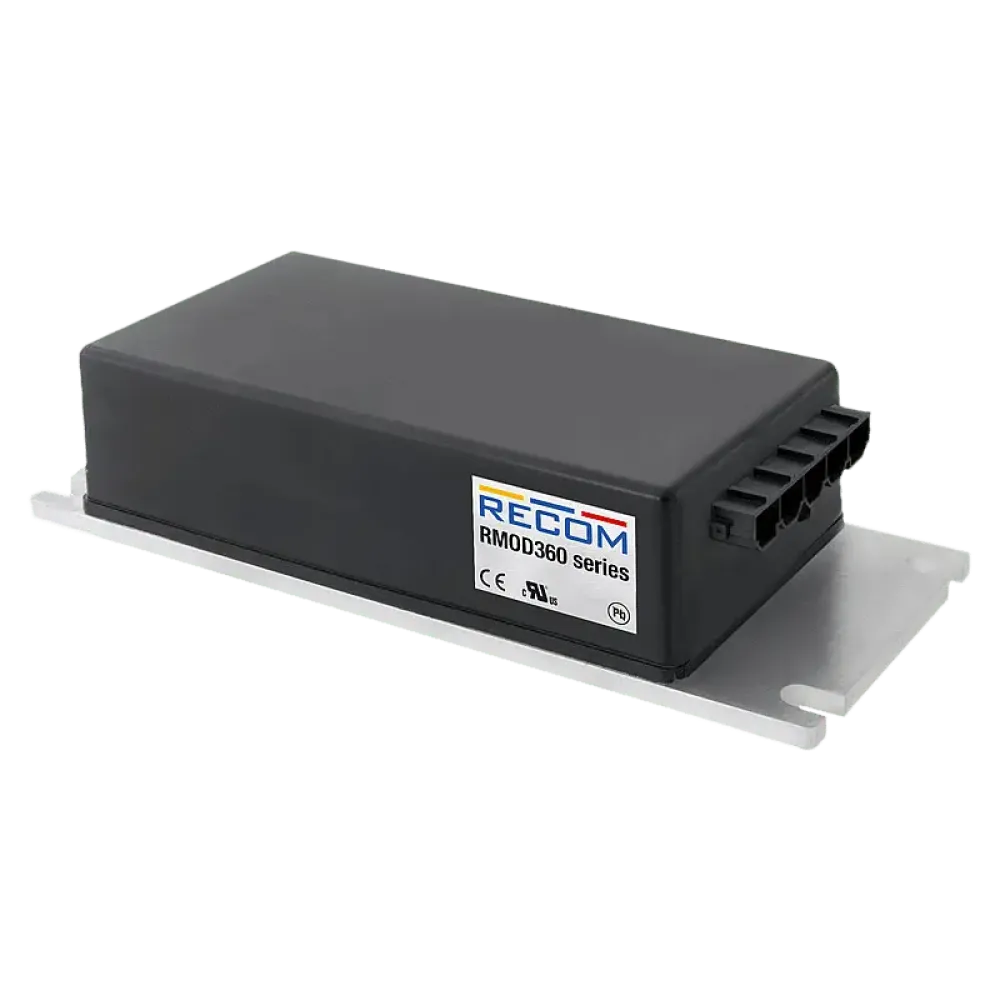

360W Off Highway Vehicle DC/DC converter In: 18...106Vdc / Out 24.5Vdc/15A
About the product
The 360 Watt DC/DC converters of the RMOD360-UW series are designed for small electric vehicles and electric boats, construction vehicles, AGVs and material handling applications. The RMOD families are extremely robust plug & play modules that are used to generate the 24.5V low voltage grid from the vehicle's traction battery. The device operates with a 6:1 input voltage range to cover the input voltage range of 18-106VDC for nominal 24/36/48V/60/80V in an input range with isolated and regulated output. The converter has a constant and high efficiency and allows a wide operating temperature range from -40°C to +75°C. Input reverse polarity protection and inrush current limitation, UVLO, output OCL, SCP, OVP, OTP, round off the functionality of this plug & play device.
Technical data
- Ultra-wide input voltage range (18-106VDC)
- Operating temperature range: -40°C to +75°C
- Reverse polarity protection at the input
- Protective functions: Input UVLO, output OCL, SCP, OVP, OT
- Parallel operation possible
- CRTL ON/OFF function
- Molex MINI-FIT SR connectors
- 2-year guarantee
Product specifications
| Manufacturer | Recom |
| Additional functions | Remote ON/OFF |
| Height | 44 mm |
| Nominal input voltage (VDC) | 24-96 V |
| Output voltage (VDC) | 24.5 V |
| Input voltage ratio | N/A |
| Output current | 15000 mA |
| Power | 360 W |
| Width | 76 mm |
| Length | 190 mm |
| Application | ITE/AV |
| I/O isolation | 2250 VDC |
