Item ID: 49517

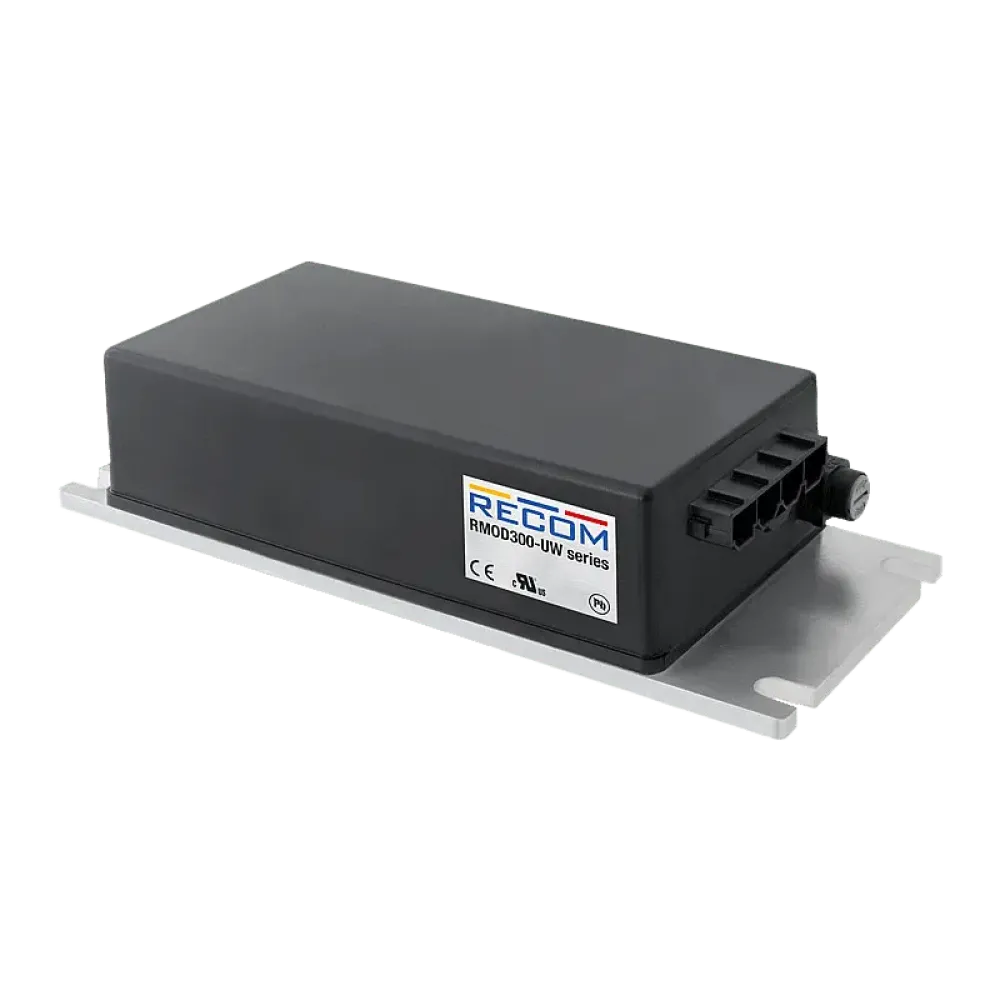

300W Off Highway Vehicle DC/DC converter In: 18...106Vdc / Out 13.7Vdc/22A
About the product
The 300 Watt DC/DC converters of the RMOD300-UW series are designed for small electric vehicles and electric boats, construction vehicles, AGVs and material handling applications. The RMOD families are extremely robust plug & play modules used to generate the 12.2V / 13.7V or 24.5V low voltage grid from the vehicle's traction battery. The device operates with a 6:1 input voltage range to cover the input voltage range of 18-106VDC for nominal 24/36/48V/60/80V in an input range with isolated and regulated output. The converter has a constant and high efficiency and allows a wide operating temperature range from -40°C to +75°C. Input reverse polarity protection and inrush current limitation, UVLO, output OCL, SCP, OVP, OTP, round off the functionality of this plug & play device. Note: RMOD300-UW with Vin <27VDC only 200 Watt available, realized with active line derating
Technical data
- Ultra-wide input voltage range (18-106VDC)
- Operating temperature range: -40°C to +75°C
- Reverse polarity protection at the input
- Protective functions: Input UVLO, output OCL, SCP, OVP, OT
- Parallel operation possible
- Integrated fuse holder
- Molex MINI-FIT SR connectors
- 2-year guarantee
Product specifications
| Power | 300 W |
| I/O isolation | 2250 VDC |
| Output current | 22000 mA |
| Height | 44 mm |
| Nominal input voltage (VDC) | 24-96 V |
| Output voltage (VDC) | 13.7 V |
| Input voltage ratio | N/A |
| Width | 76 mm |
| Length | 190 mm |
| Application | ITE/AV |
| Manufacturer | Recom |
| Additional functions | Integrated fuse holder |
