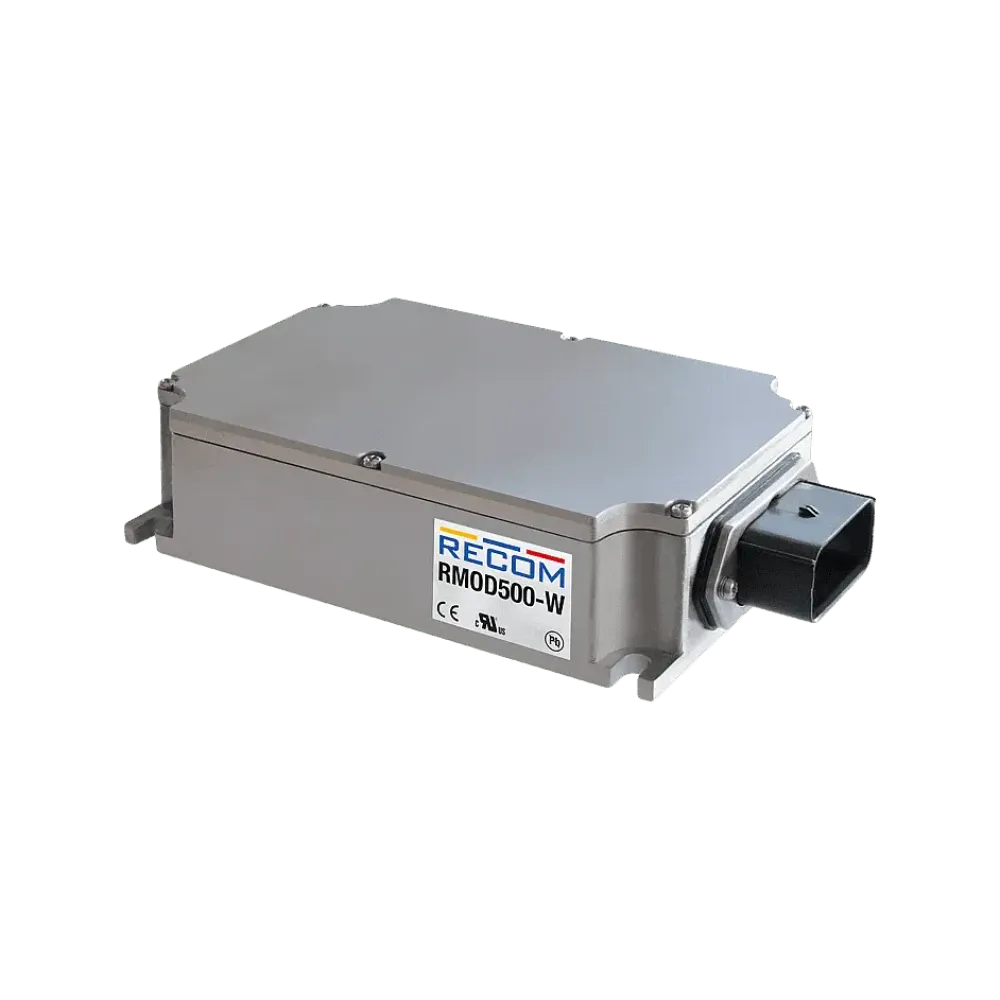

500W Off Highway Vehicle DC/DC converter In: 32...96Vdc / Out 12.4Vdc/40A

The RMOD500-W DC-DC converter is ideal for use in all off-highway electric vehicles. This family is an extremely robust plug & play module with 500 watts, which generates the isolated Vout = 12.4 / 13.7 / 24.5VDC low-voltage network from the traction battery level. The wide input voltage range of 32-96V covers the 48V and 80V battery voltages commonly used in this off-highway segment. Thanks to the waterproof and dustproof housing design, the devices can be mechanically and thermally connected directly to the chassis (i.e. at any point on the vehicle) and work reliably even under the most adverse conditions.

Technical data

• Wide input voltage range (32-96VDC)
• Water and dustproof (IP67), robust and reliable
• Operating temperature range: -40°C to +90°C
• Protective functions: Input reverse polarity protection, input UVLO, output OCP, SCP, OVP, OTP
• Control ON/OFF function
