About the product

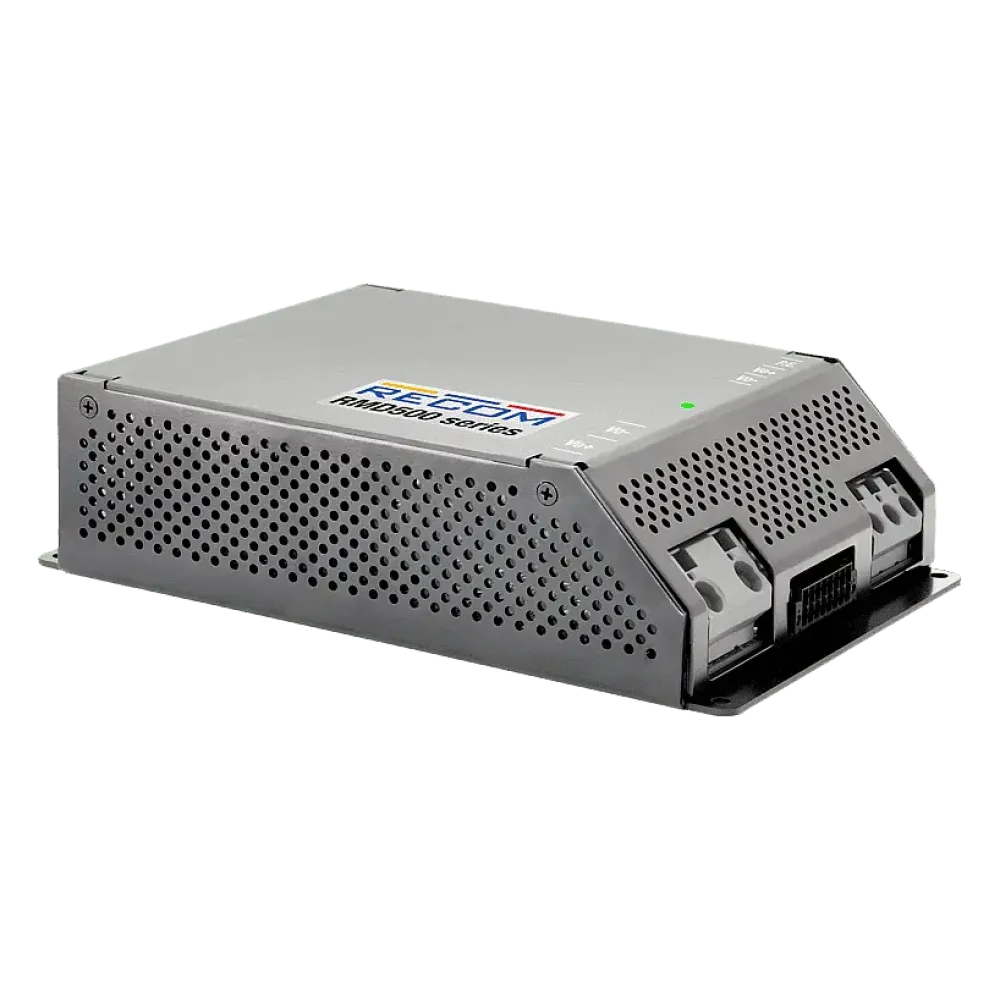

The RMD500 series DC/DC converter, which can be mounted on a housing, is designed for rail vehicles and transportation applications. The device is designed with a 4:1 input voltage range of 43.2VDC to 170VDC for nominal 72V and 110V. The 5kVdc isolated 24Vdc output ensures safe isolation of the load. The converter has a constant and high efficiency of 95%, and the baseplate mounting allows a wide operating temperature range for class OT4+ST1&ST2 from -40°C to +85°C without derating. Input reverse polarity protection, inrush current limiting, 10 ms bridging time, remote control and OR-ing diodes at the output round off the functionality of this fully rail-compatible plug & play device.
Technical data
- Fully track-approved for EN50155 (S2) applications
- EN50121-3-2, EN50124-1, EN62368-1, EN61373, EN45545-2
- Plug&Play unit for natural convection cooling
- Wide-range input for nominal 72V and 110V
- Outstanding efficiency and functionality
- Parallel and redundant operation
- Extremely reliable and robust
Product specifications
| Output voltage (VDC) | 24 V |
| I/O isolation | 5000 VDC |
| Application | Railroad, ITE/AV |
| Height | 48 mm |
| Width | 141 mm |
| Length | 209 mm |
| Nominal input voltage (VDC) | 72-110 V |
| Input voltage ratio | N/A |
| Output current | 21000 mA |
| Power | 500 W |
| Manufacturer | Recom |
| Additional functions | Parallel switchable, remote ON/OFF, voltage trim |
