About the product

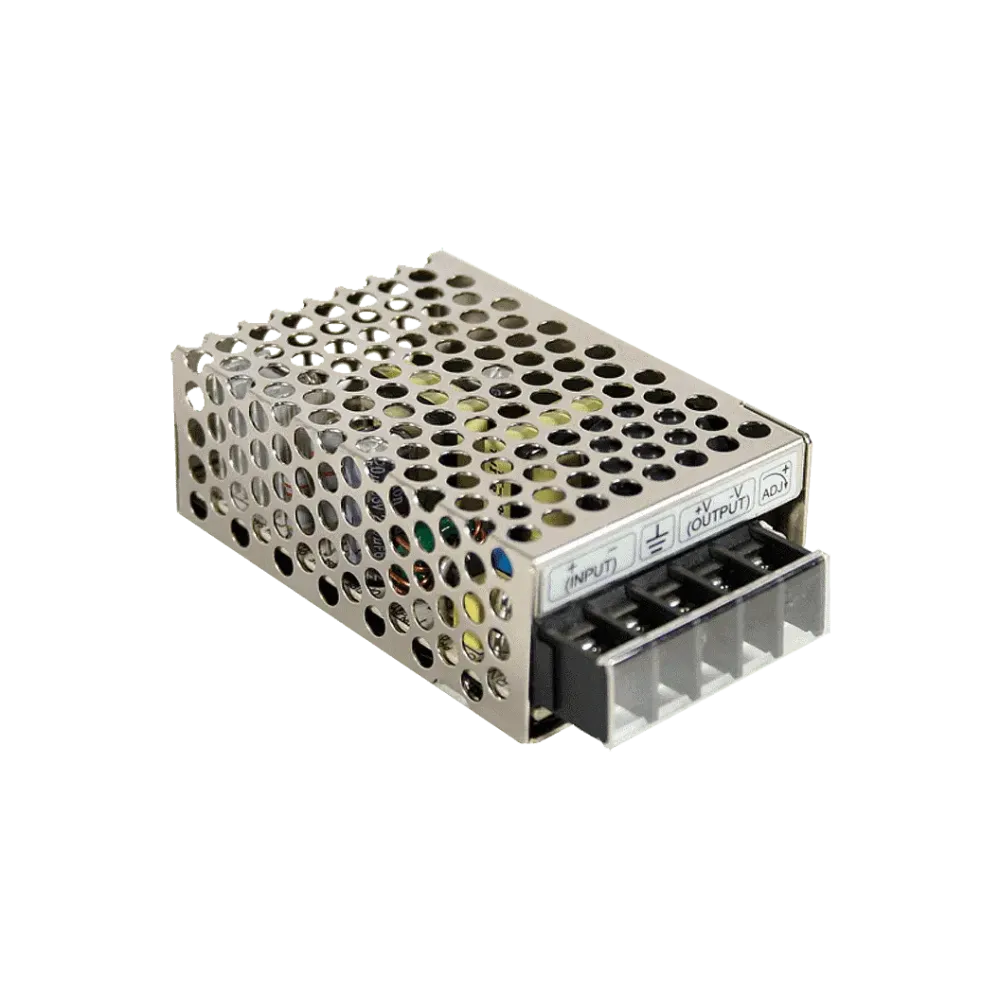

SD-15B-24 is a DC-DC converter in a perforated sheet metal housing with screw terminal connection and 1500Vac insulation.
Technical data
- 2:1 Entrance area
- 1500Vac insulation
- Convection-cooled without forced ventilation
- Dimensions 78 x 51 x 28mm (L x W x H)
- 2-year guarantee
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Output current | 625 mA |
| Nominal input voltage (VDC) | 24 V |
| Input voltage ratio | N/A |
| Length | 78 mm |
| Width | 51 mm |
| Application | ITE/AV |
| Power | 15 W |
| Height | 28 mm |
| Manufacturer | MEAN WELL |
| I/O isolation | 1500 VDC |
Data sheets
