About the product

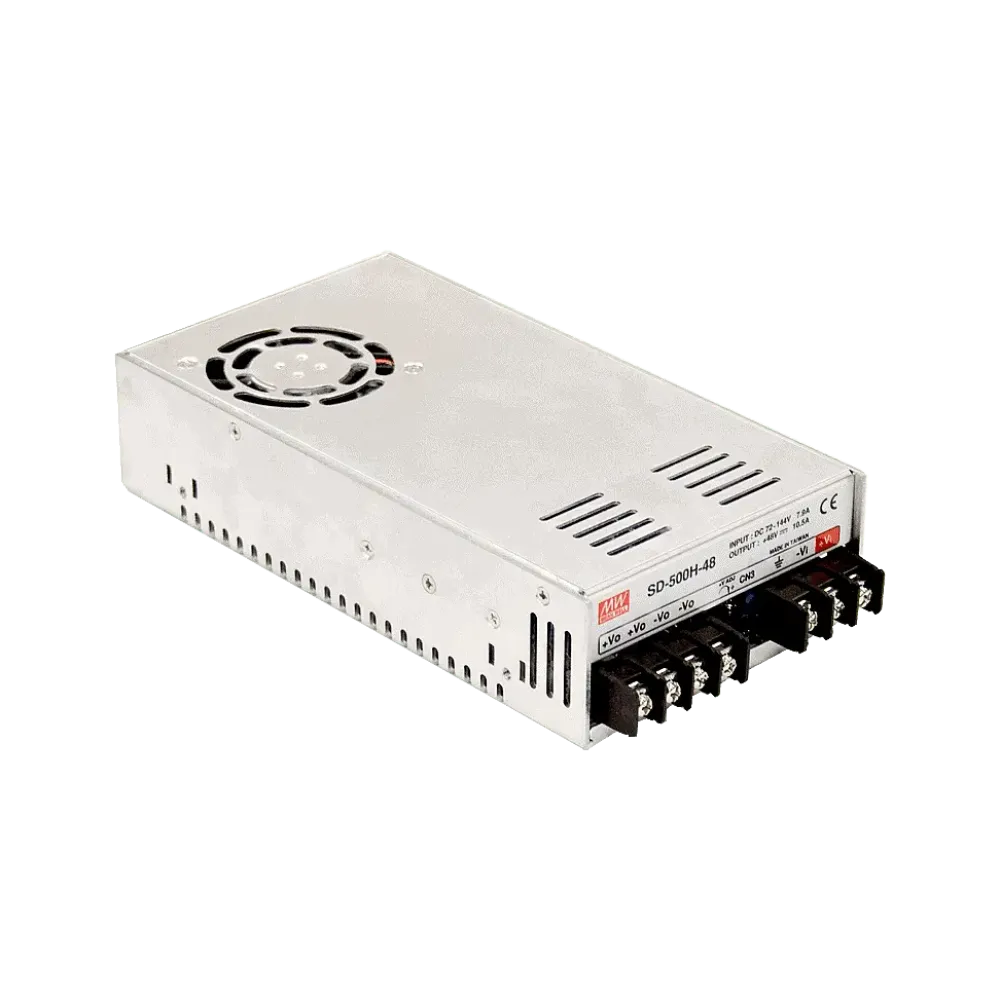

SD-500H-24 is a DC-DC converter in a housing with screw terminal connection and 2000Vac insulation.
Technical data
- 2:1 / 4:1 Entrance area
- 2000Vac insulation
- Forced ventilation with built-in fan
- DC OK signal
- Remote ON/OFF
- Remote Sense
- Dimensions 215 x 115 x 50mm (L x W x H)
- 3-year guarantee
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Additional functions | Remote ON/OFF |
| Nominal input voltage (VDC) | 96-110 V |
| Input voltage ratio | N/A |
| Output current | 21000 mA |
| Width | 115 mm |
| Length | 215 mm |
| Power | 500 W |
| Application | ITE/AV |
| Height | 50 mm |
| Manufacturer | MEAN WELL |
| I/O isolation | 2000 VDC |
Data sheets
