Item ID: 49263

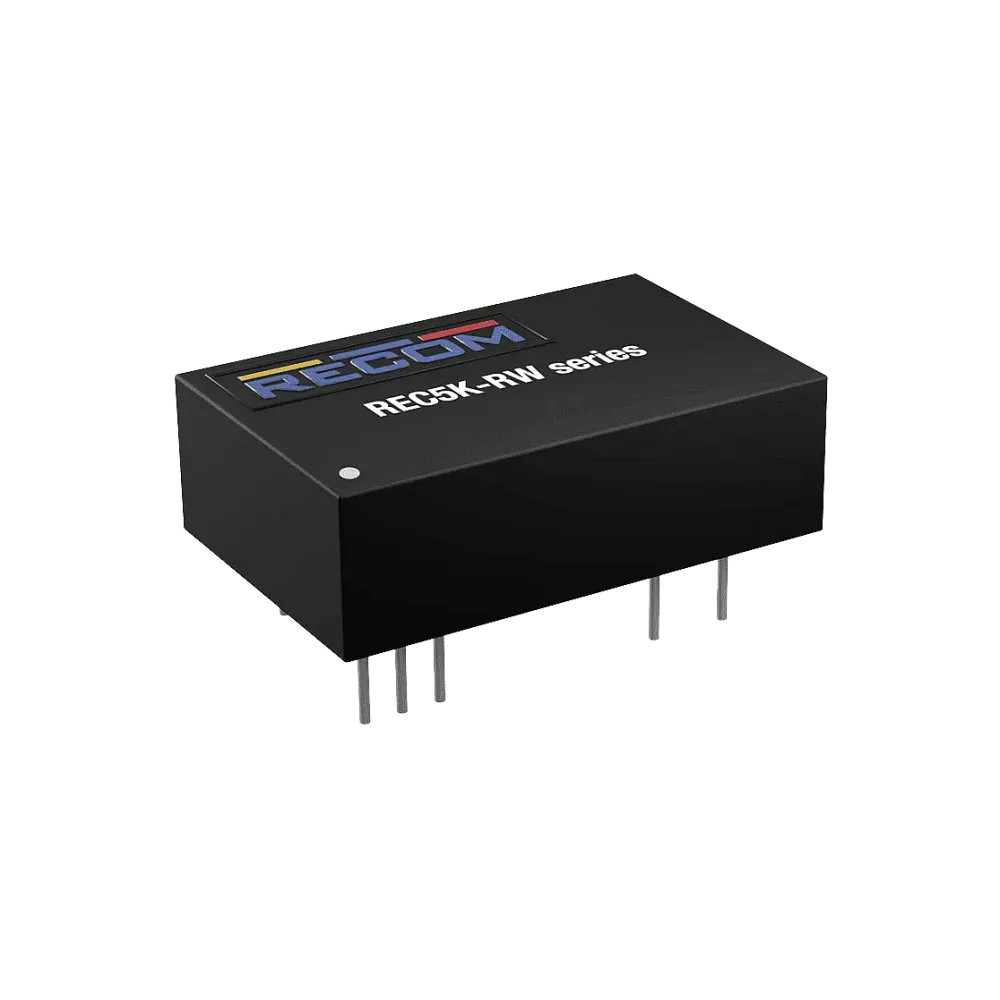

5W DC/DC converter, input 9...36V, output adjustable from 3.3...15V/1212mA
About the product
REC5K-2412SRW/H4/A/ADJ offers a basic isolation of 4kVDC/1sec and is therefore ideal for industrial, medical and other demanding high-end applications. The output voltage can be set in the range from 3.3Vdc to 15Vdc. The compact, non-conductive DIP24 plastic housing ensures high power density without sacrificing performance and operates with derating up to 110°C. Short circuit protection, undervoltage lockout and remote on/off control are standard and the converter is UL/IEC/EN62368-1 certified.
Technical data
- 4kVDC/1sec insulation of the basic class
- Industry standard 5W DIP24 housing
- Output voltage adjustable from 3.3vdc to 15Vdc.
- Temperature resistant up to 110°C ambient temperature
- Wide 4:1 input
- ON/OFF control pin, UVLO, SCP
- 0% minimum load
Product specifications
| Manufacturer | Recom |
| Output voltage (VDC) | 3.3-12 V |
| I/O isolation | 4000 VDC |
| Design | DIP24 |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Width | 20.6 mm |
| Length | 32.1 mm |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Power | 5 W |
| Application | ITE/AV |
| Output current | 1212 mA |
