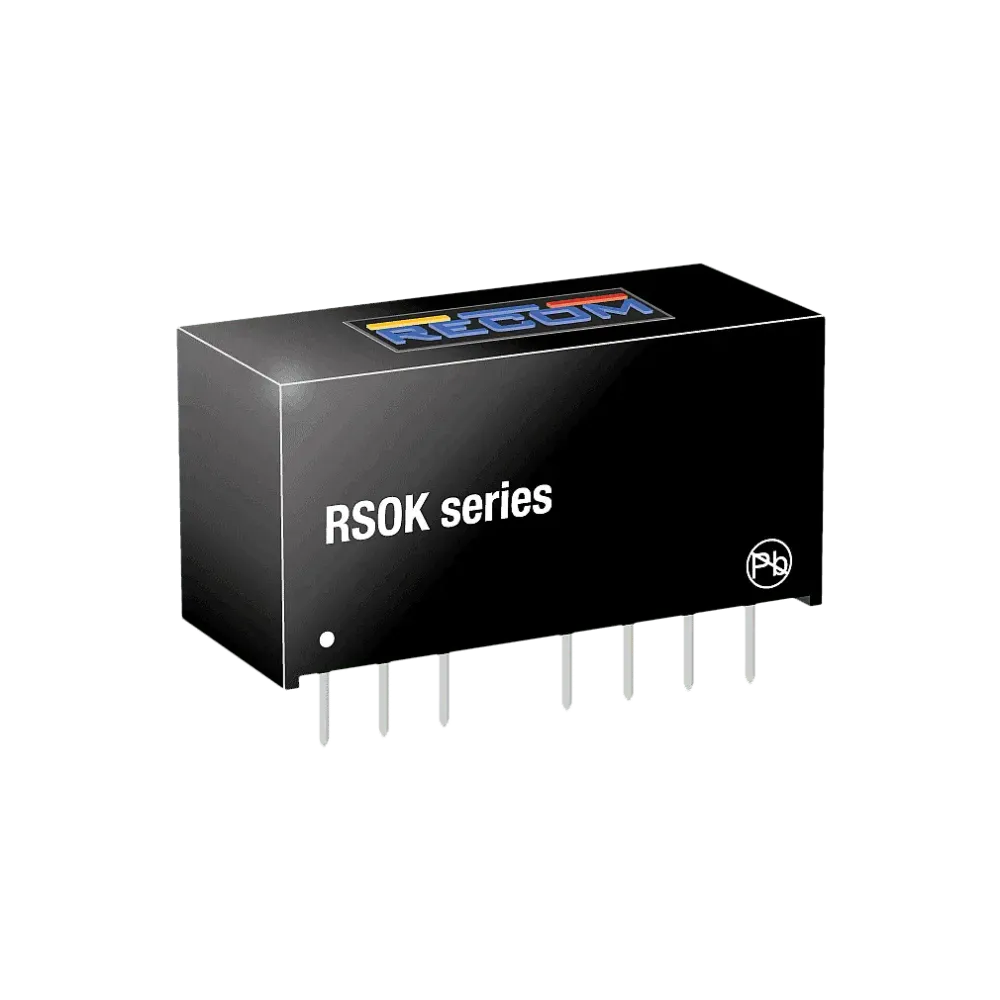

1W DC/DC converter, input 9...36V, output adjustable from 3.3...17V/max. 167mA

The RSOK-Z series is an innovative DC/DC converter series with a wide 4:1 input voltage range of 9-36 VDC. This converter features ON/OFF control for added convenience and precision. The RSOK-Z is characterized by high accuracy and precise line and load regulation, ensuring reliable performance even under difficult conditions. As a special feature, the output from the converter can be adjusted from 3.3Vdc to 17Vdc. The device also features continuous short circuit protection and an undervoltage lockout (UVLO) for added safety. This product is certified to the stringent safety requirements of IEC/EN/UL 62368-1, making it suitable for use in a wide range of industrial applications. With a maximum output power of 1 W and the ability to operate at 0% minimum load, the RSOK-Z is both versatile and efficient. Finally, the RSOK-Z offers a basic isolation of 3kVDC/1min and an operating range of -40°C to 90°C without derating, making it ideal for use in demanding industrial environments.

Technical data

• 4:1 wide input voltage range
• SIP8 housing
• Adjustable output voltage from 3.3Vdc to 17Vdc
• Continuous short-circuit protection
• No minimum load required
• 3kVDC/1min Basic insulation
