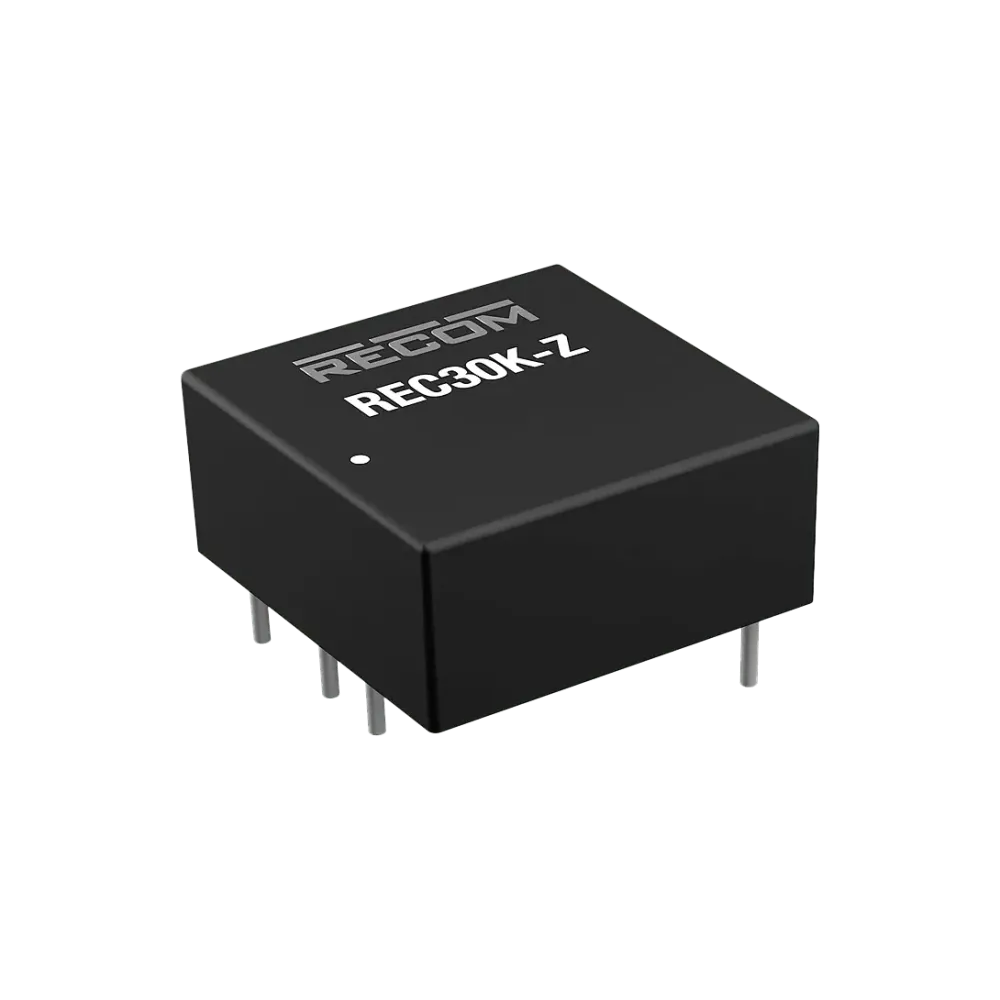

30W DC/DC converter, input 9...36V, output 15V/2000mA

The REC30K series are 30W DC/DC converters with high power density and wide input voltage range in a 1x1 industry standard housing. Despite their small size, the REC30K converters are fully specified devices with output currents up to 6A, high efficiency, no minimum load, 2000 VDC/1 min isolation, tight regulation and low ripple/noise. The outputs are also fully protected against short circuit, overcurrent and overvoltage, and the single output version offers a trim range of ±10%. These converters are well suited for industrial applications where board space is at a premium.

Technical data

• Industry standard 30W 1 "x1" housing
• Loadable up to 105°C ambient temperature
• Wide 4:1 input
• ON/OFF control pin, UVLO, SCP
• 3-year guarantee
