About the product

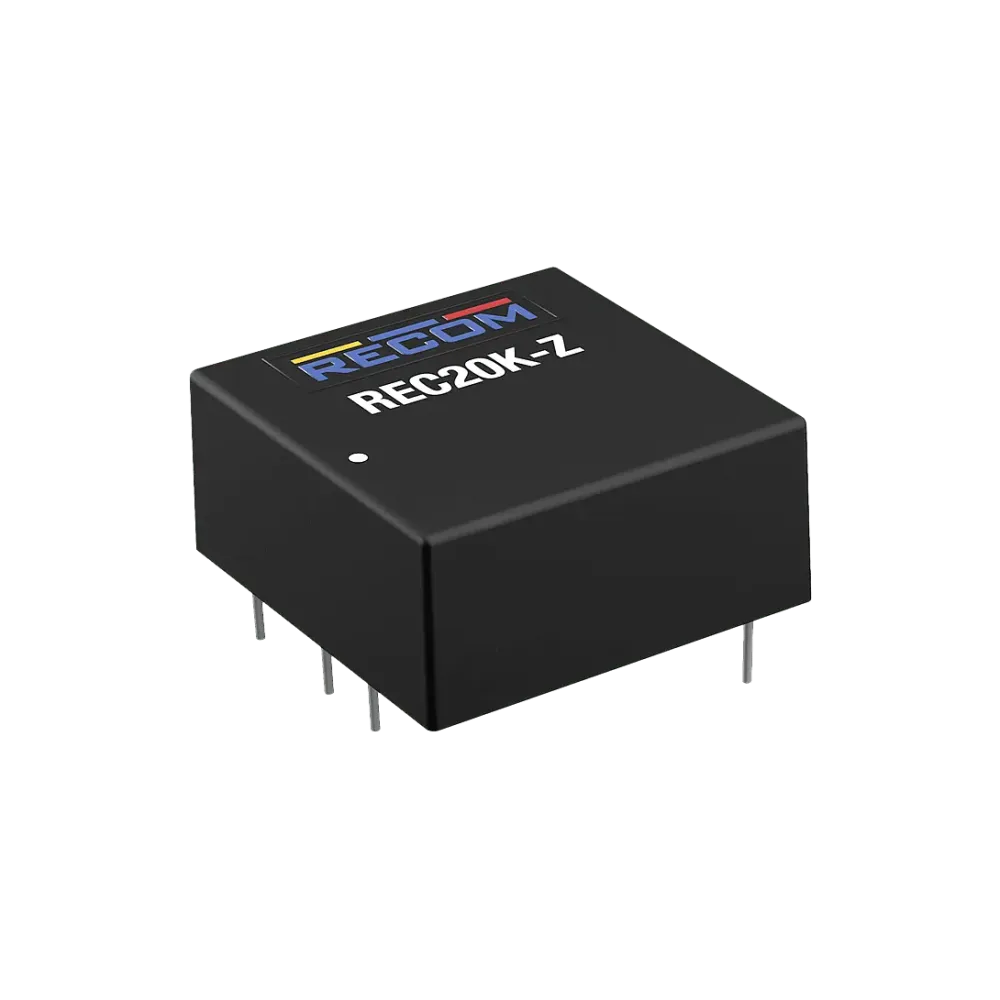

The REC20K series are 20W DC/DC converters with high power density and wide input voltage range in a 1 "x1" industry standard package. Despite their small size, the REC20K converters are fully specified devices with output currents up to 5A, high efficiency, no minimum load, 2000VDC/1 min isolation, tight regulation and low ripple/noise. The outputs are also fully protected against short circuit, overcurrent and overvoltage and the single output version offers a trimming range of ±10 %. These converters are well suited for industrial applications where board space is at a premium.
Technical data
- Industry standard 20W 1 "x1" housing
- Loadable up to 105°C ambient temperature
- Wide 4:1 input
- ON/OFF control pin, UVLO, SCP
- 3-year guarantee
Product specifications
| Manufacturer | Recom |
| Design | 1×1 inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Power | 16.5 W |
| Nominal input voltage (VDC) | 24-72 V |
| Height | 10.2 mm |
| Output current | 5000 mA |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 25.4 mm |
| Width | 25.4 mm |
| Output voltage (VDC) | 3.3 V |
| Application | ITE/AV |
| I/O isolation | 2000 VDC |
