About the product

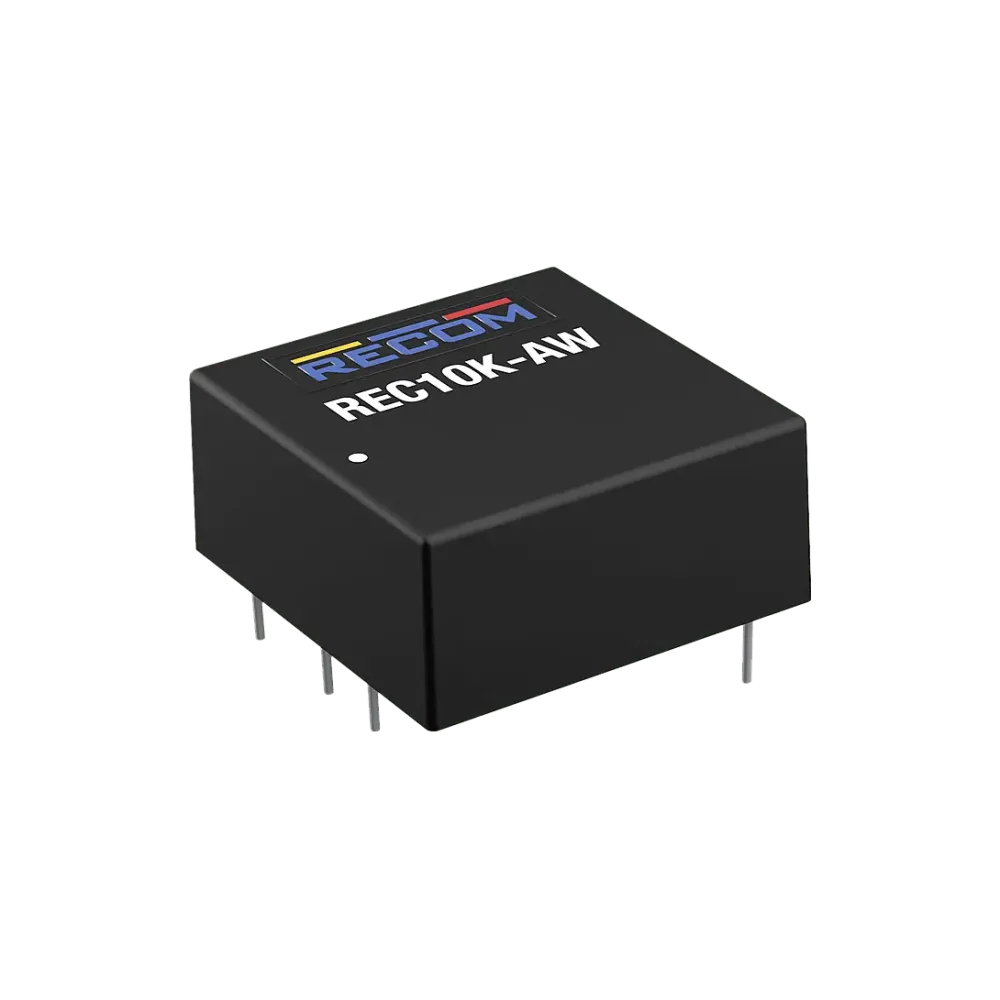

The REC10K-AW series are 10 Watt DC/DC converters with high power density and a wide input voltage range in a 1x1 industry standard housing. Despite their small size, the REC10K-AW converters are fully specified converters with output currents up to 2A, high efficiency, no minimum load, 1600 VDC/1 min isolation, precise regulation and low ripple/noise. The outputs are also fully protected against short circuit, overcurrent and overvoltage, and the single output version offers a trim range of +/-10%. These converters are well suited for industrial applications where board space is limited.
Technical data
- Industry standard 10W 1 "x1" housing
- Permits an ambient temperature of up to 100°C
- Wide 4:1 input
- ON/OFF control pin, UVLO, SCP
- 3-year guarantee
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1600 VDC |
| Design | 1×1 inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 25.4 mm |
| Width | 25.4 mm |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Power | 10 W |
| Output current | 2000 mA |
| Output voltage range (VDC) | 4.5-5.5 V |
