About the product

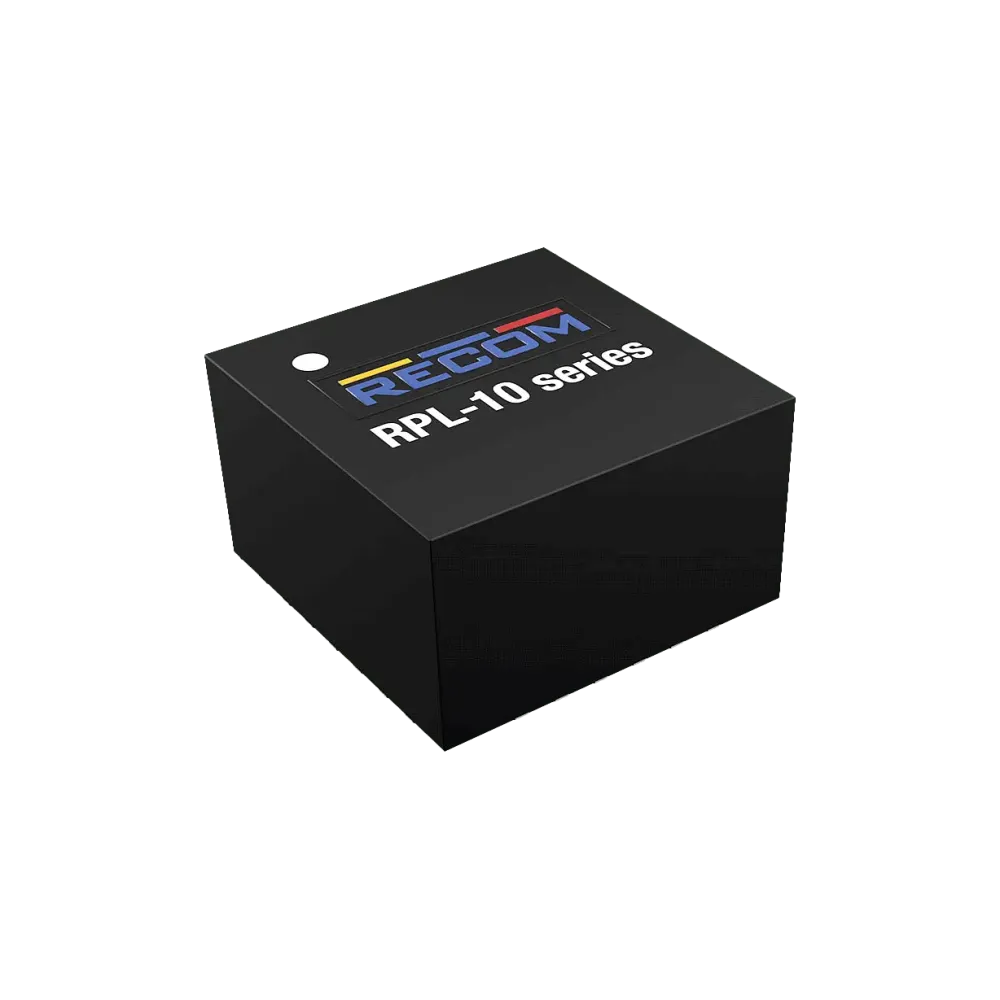

The RPL-10 is a 10A step-down converter with integrated inductance in a compact 7mm x 7mm x 4.4mm, thermally optimized LGA housing. The input range extends from 4.0 to 16VDC, so that both 5V and 12V supply voltages can be used. The output voltage can be adjusted with two resistors in the range from 0.6V to 5.5V. The output is fully protected against continuous short circuit, overload, undervoltage or overtemperature. A PG output and an EN input enable simple power sequencing. The RPL-10's high current capability, small size, low load pulse skipping and fast transient regulation make it ideal for FPGAs, imaging systems, distributed power architectures, portable telecom devices and industrial applications.
Technical data
- High power density (10A in 7x7x4.4mm)
- Operating temperature from -40°C to +90°C at full load
- High efficiency 94%
- Width 4-16VDC Input voltage
- SCP, OCP and UVLO protection
- Programmable output 0.6-5.5V
- Selectable operating frequency (600kHz - 1MHz)
- Constant switch-on time for fast response to transient loads
- Pulse skipping for optimum performance at low load
- 3-year guarantee
Product specifications
| Manufacturer | Recom |
| Output voltage range (VDC) | 0.6-5.5 V |
| Output voltage (VDC) | 1.2-5.1 V |
| I/O isolation | not isolated |
| Height | 4.4 mm |
| Width | 7 mm |
| Length | 7 mm |
| Nominal input voltage (VDC) | 3.3-12 V |
| Output current | 10000 mA |
| Regulation | Regulated |
| Power | 55 W |
| Design | LGA, SMD |
