About the product

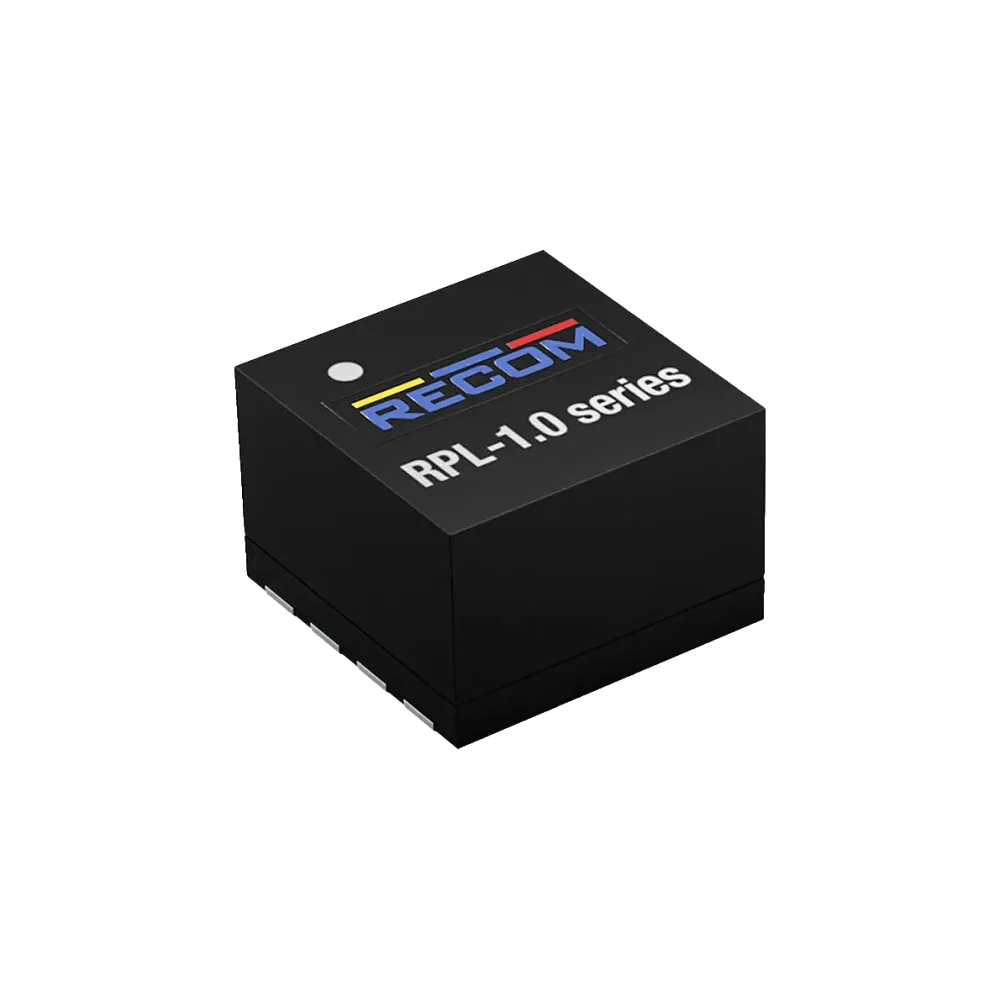

The RPL-1.0 is a synchronous step-down converter with integrated inductance in a tiny 3mm x 3mm x 2mm thermally optimized LGA package. The input range is from 3.0 to 22VDC, so that 3.3V, 5V and 12V supply voltages can be used. The output voltage can be adjusted with two resistors in the range from 0.6V to 12V. The output current is up to 1A and is fully protected against continuous short circuits, output overcurrent or overtemperature faults. Due to its high current and small size, the RPL-1.0 is ideal for imaging systems, decentralized power supply architectures and portable battery-powered devices in telecommunications and industrial applications.
Tape and Reel
Technical data
- Large input range (3 - 22V)
- Low profile 2mm
- Small base area 3x3mm
- Adjustable output 0.6 to 12V
- 1A Output current
- Up to 125°C ambient temperature with derating
- Integrated solution
- 3-year guarantee
Product specifications
| Power | 12 W |
| Output voltage range (VDC) | 0.6-12 V |
| Output voltage (VDC) | 1.2-12 V |
| I/O isolation | not isolated |
| Height | 2 mm |
| Nominal input voltage (VDC) | 3.3-15 V |
| Width | 3 mm |
| Length | 3 mm |
| Regulation | Regulated |
| Output current | 1000 mA |
| Manufacturer | Recom |
| Design | LGA, SMD |
