Item ID: 49175
2.7W DC/DC converter, input 2.3...5.5V, output 0.6...5.375V/500mA, QFN, T&R
About the product

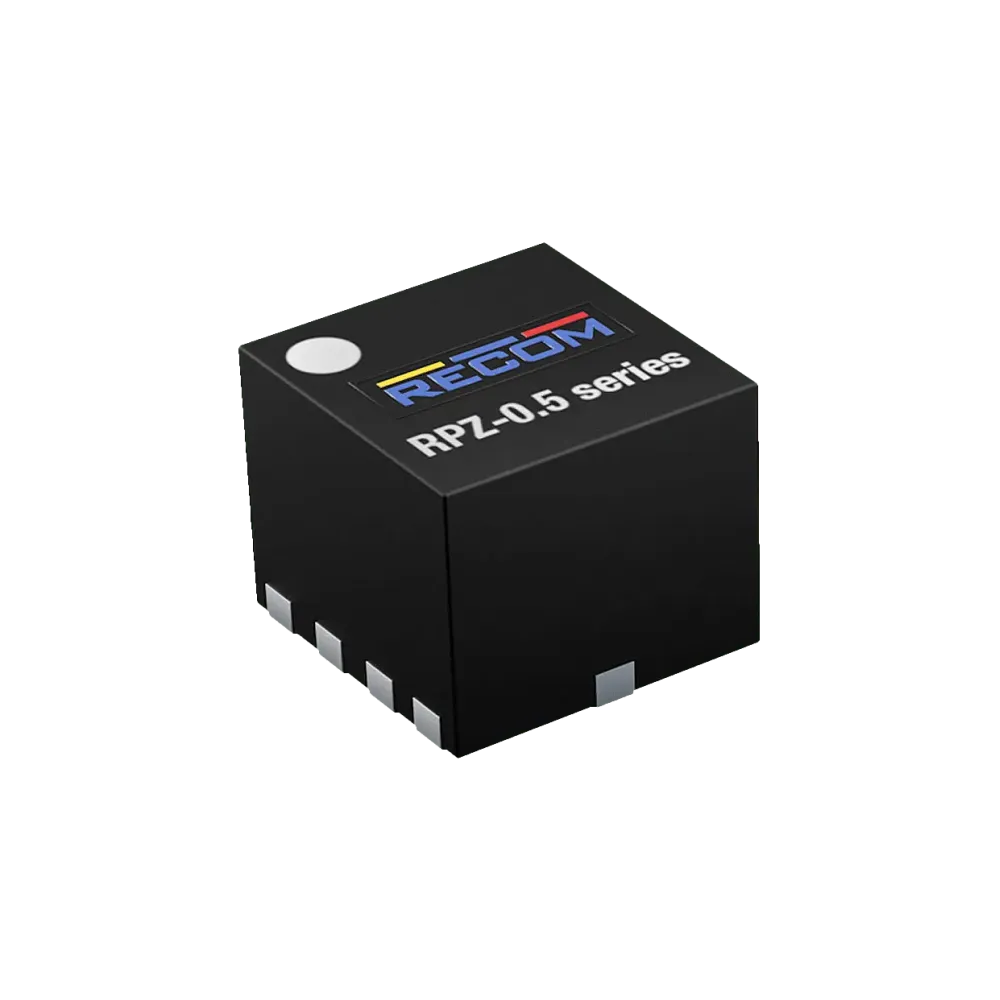

The RPZ-0.5 is a synchronous step-down converter with integrated inductance in a tiny, 2.0mm x 2.0mm x 1.6mm, thermally optimized QFN housing. The input range extends from 2.3 to 5.5VDC. The output voltage can be adjusted with two resistors in the range from 0.6V to 5.375V. The output current is up to 500mA and is fully protected against continuous short circuits, output overcurrent or overtemperature faults. Due to its high current and small size, the RPZ-0.5 is ideal for imaging systems, decentralized power supply architectures, optical modules and portable battery-powered devices in telecommunication and industrial applications.
Tape and reel packaging
Technical data
- 2.3 - 5.5VDC Input range
- Low profile 1.6 mm
- Ultra-compact footprint 2x2mm
- Adjustable output 0.6 to 5.375V
- 0.5A Output current
- Up to 115°C ambient temperature at full load
Product specifications
| Manufacturer | Recom |
| Output voltage (VDC) | 1.2-5.1 V |
| Design | QFN |
| I/O isolation | not isolated |
| Power | 2.7 W |
| Width | 2 mm |
| Length | 2 mm |
| Nominal input voltage (VDC) | 3.3-5 V |
| Height | 1.6 mm |
| Regulation | Regulated |
| Output current | 500 mA |
| Output voltage range (VDC) | 0.6-5.375 V |
