2W DC/DC Converter, Programmable Asymmetrical Outputs for IGBT/Si/SiC/Cascode GaN

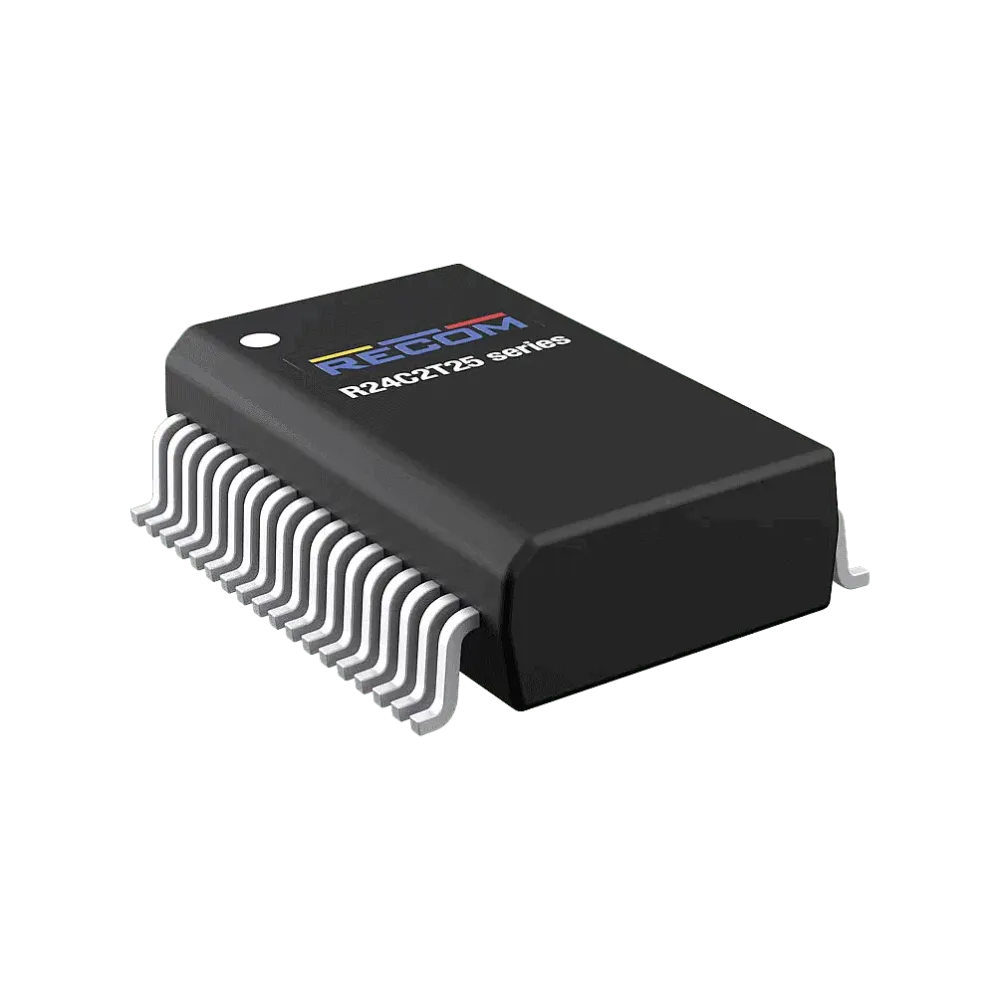

The R24C2T25 series 2W isolated DC/DC converter is a versatile solution for isolated gate bias voltages, especially for IGBTs and Si and SiC MOSFETs. This compact converter features programmable asymmetrical output voltages that ensure precise control and power optimization for power electronics applications. It offers superior reliability with a high isolation of 3kVAC/1min and remarkable stability even at 125°C (0.5W). The ultra-low isolation capacitance of less than 3.5pF ensures minimal noise propagation across the isolation barrier. These exceptional features are packaged in a compact 7.5 x 12.83mm SMD form factor, making it an ideal choice for all isolated gate biasing requirements.

Technical data

• 2W isolated DC/DC converter
• Programmable asymmetrical output voltages
• For IGBT/Si/SiC/cascode GaN gate driver bias voltages
• High 3kVAC/1min insulation with 150kV/μs CMTI
•  1.5 W at -40°C to +100°C
•  Less than 3.5pF insulation capacitance
• Compact 7.5×12.83mm SMD housing
• 3-year guarantee
