60W DC/DC converter, input 18...75V, output 12V/5A, medical, industrial

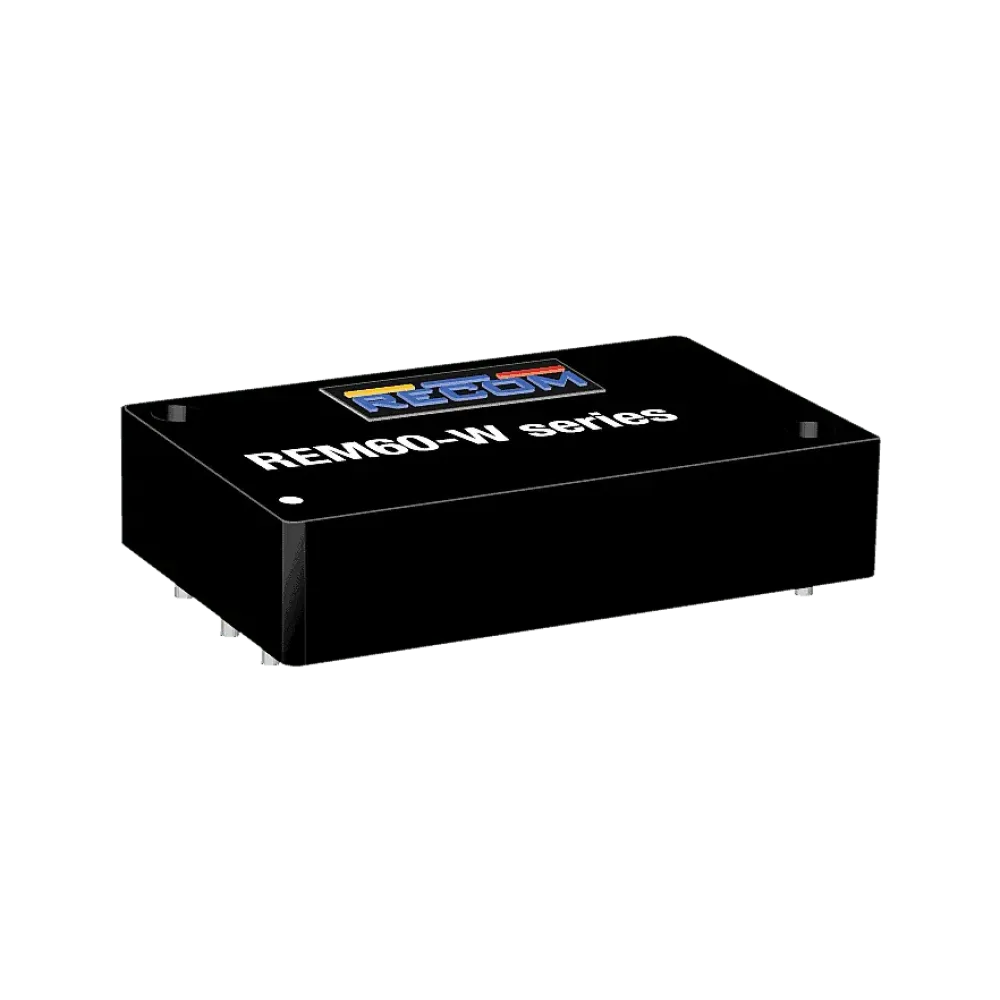

The REM60-W series DC/DC converters for medical applications feature 5kVAC/1 minute reinforced isolation with a low leakage current of 4.5µA (B, BF and CF compatible) and are certified to 60601-1 3rd Ed. for 250VAC continuous operating voltage isolation. The industry standard 2.3 "x1.5" package provides tightly regulated single and dual outputs that can be operated to no load. The outputs are also protected against short circuit and overload. The converters are certified to IEC/EN and ANSI/AAMI standards and carry the UL mark.

Technical data

• Reinforced insulation for 250VAC operating voltage
• Air and creepage distance >8.0mm
• 5kVAC I/P to O/P 2MOPP insulation
• 4.5µA maximum patient leakage current
• Pinout according to industry standard
• 4:1 wide entrance area
