About the product

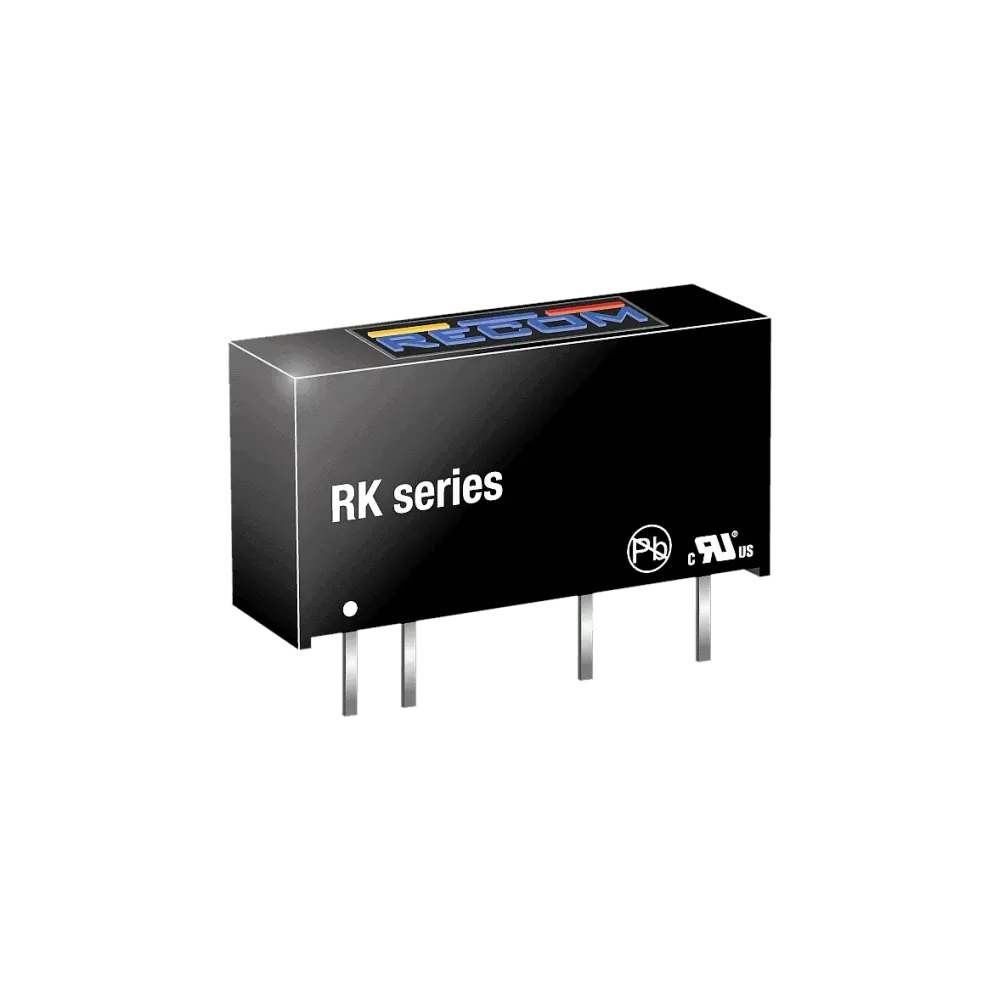

The RK series DC/DC converters complement RECOM's industrial converter series with very high insulation values of 3kVDC/1s. The extended operating temperature range of -40°C to +90°C is a standard feature. The converters are certified to IEC/EN/UL60950-1 and are suitable for IGBT driver applications.
Technical data
- 3kVDC/1s insulation
- Optional permanent short-circuit protection
- UL94V-0 housing material
- Efficiency of up to 84
- Suitable for IGBT applications
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Output current | 66 mA |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 15 V |
| I/O isolation | 3000 VDC |
