About the product

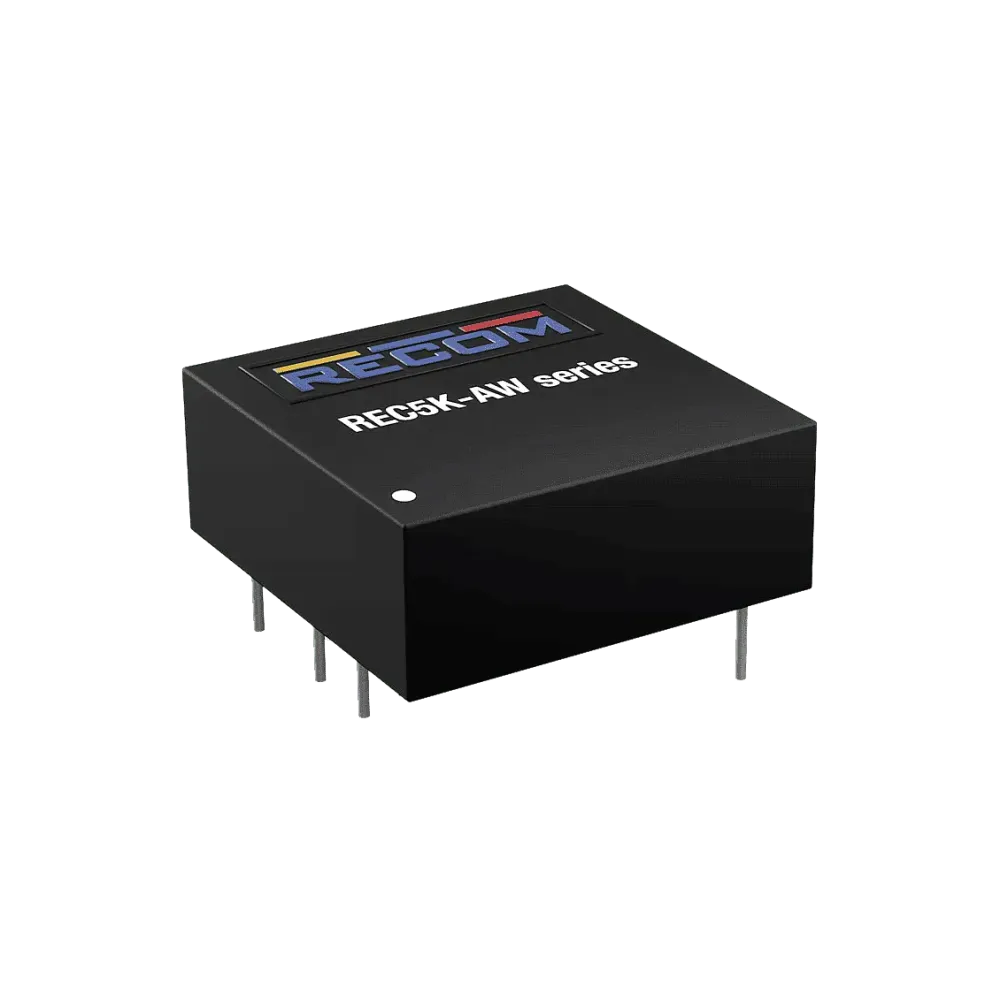

REC5K-2405SAW/H4 offers a basic isolation of 4kVDC/1sec, making it ideal for industrial, medical and other demanding high-end applications. The compact, non-conductive 1 "x1" plastic housing ensures high power density without sacrificing performance and operates with derating up to 110°C. Short circuit protection, undervoltage lockout and remote on/off control are standard, and the converter is UL/IEC/EN62368-1 certified.
Technical data
- 4kVDC/1sec insulation of the basic class
- Industry standard 5W 1 "x1" housing
- Feedback-controlled output
- Temperature resistant up to 110°C ambient temperature
- Wide 4:1 input
- ON/OFF control pin, UVLO, SCP
- 0% minimum load
Product specifications
| Manufacturer | Recom |
| Design | 1×1 inch |
| Additional functions | Remote ON/OFF |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Height | 10 mm |
| Length | 25.4 mm |
| Power | 5 W |
| Width | 25.4 mm |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Output current | 1000 mA |
| I/O isolation | 4000 VDC |
