About the product

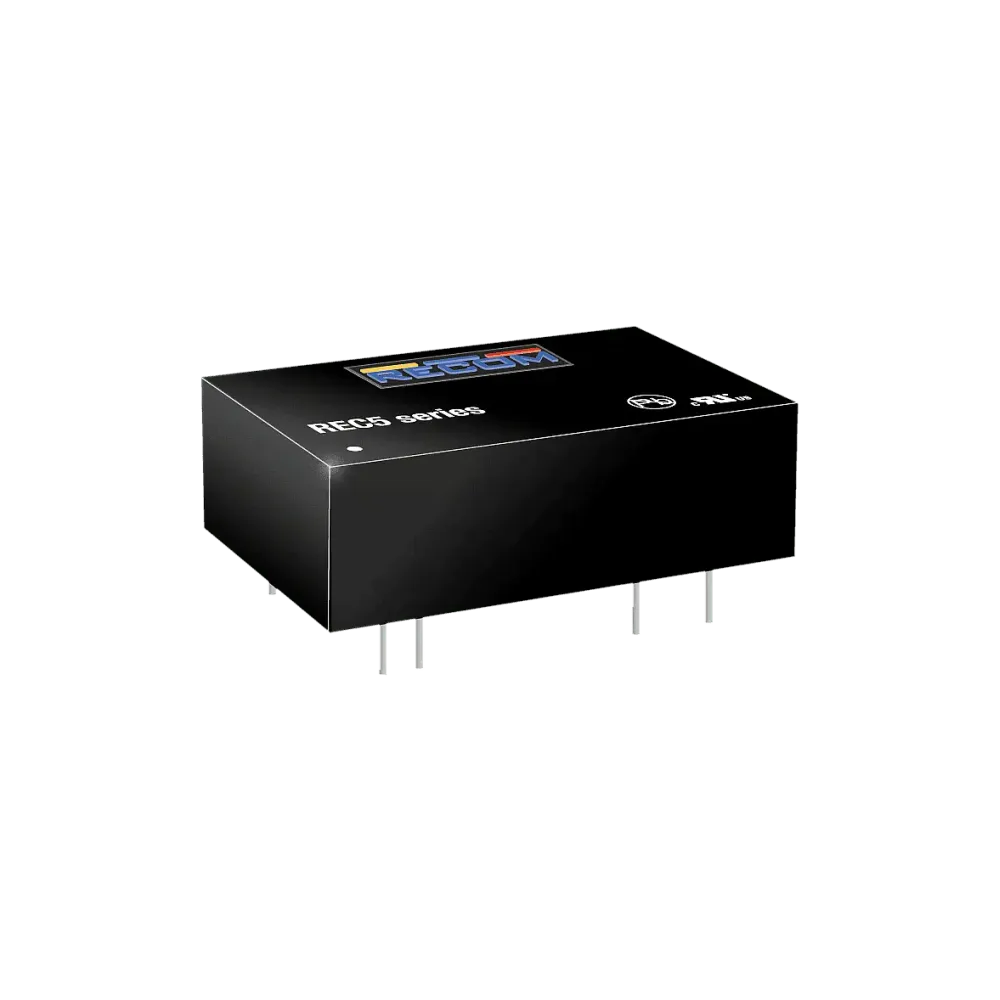

This series offers a standard isolation of 2kVDC with 4kVDC or 6kVDC options, making it ideal for industrial, medical and other demanding high-end applications. The housing can be either a non-conductive DIP24 plastic housing or a 5-sided shielded DIP24 metal housing (= option "/M") as well as a DIP24-SMD housing (= option "/SMD"). Two industry standard pinouts (= option "/A" or "/C") are available for all of the above variants. The "B" pinout is also available with "/H" isolation of 1.6 kVDC. Remote on/off control is possible with the /CTRL option (only "A" pinning). The converters can deliver 140% rated power for a short time to handle applications with large capacitive loads or high starting currents.
Technical data
- High 4kVDC insulation
- 5Watt DIP24 industry standard housing
- Feedback-controlled output
- Continuous short-circuit protection
- Wide inputs 2:1 & 4:1
- Approved for medical applications
- UL and EN safety approvals
- 2 pinout options, 3 housing types
- Efficiency up to 86
Product specifications
| Manufacturer | Recom |
| Design | DIP24 |
| Height | 10.2 mm |
| Width | 20.3 mm |
| Length | 31.8 mm |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Power | 5 W |
| Application | ITE/AV, Medical |
| Output voltage (VDC) | 5 V |
| Output current | 1000 mA |
| I/O isolation | 4000 VDC |
