About the product

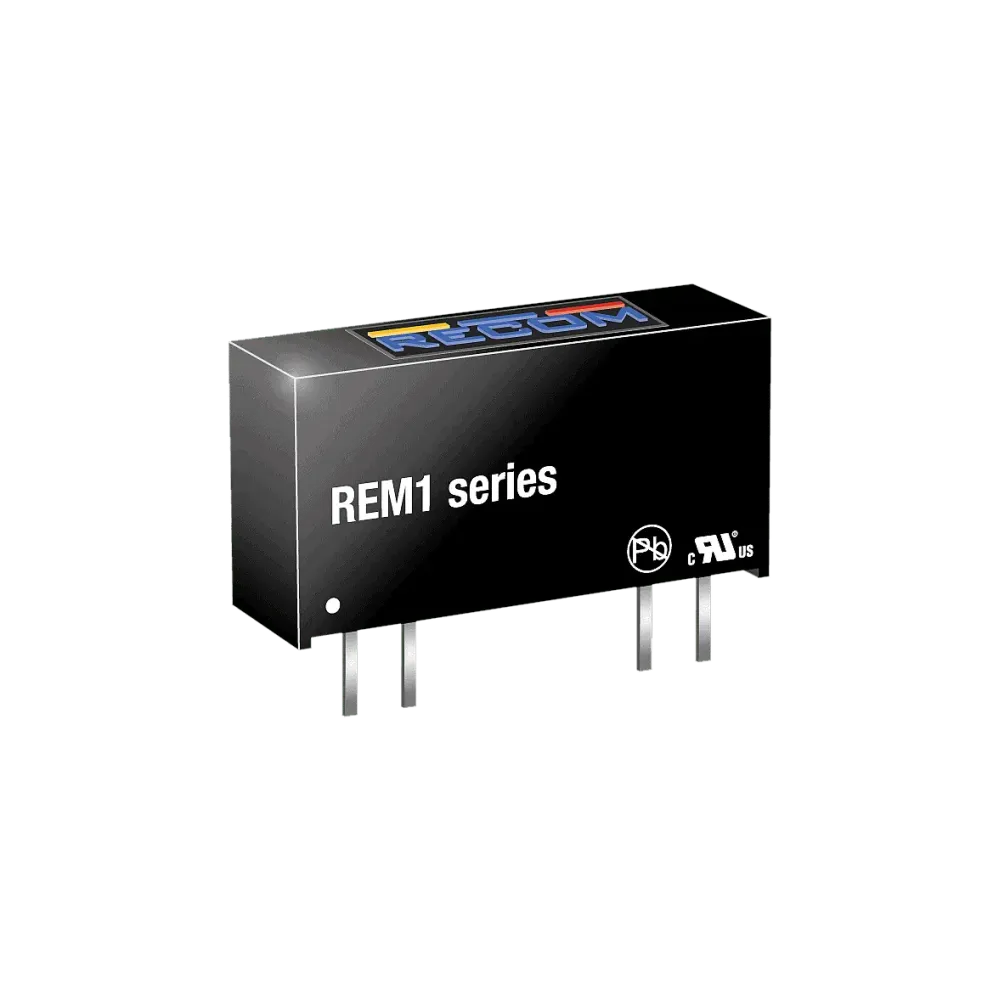

The REM1 complements the existing PCB mountable REM3, REM6 and REM10 series with an unregulated 1Watt medical grade DC/DC converter in a more compact SIP7 package. The REM1 has a reinforced 5.2kVDC/1 minute isolation and 2MOPP/250VAC operating voltage. The REM1 is available with 3.3, 5, 12, 15 or 24V inputs and offers 3.3, 5 or 12V outputs with up to 85% efficiency. The operating temperature range is -40°C to +90°C. The converter is EMC certified to Class B and 60601-1-2 (4th Ed.) for medical applications using a simple external LC filter. The converters are fully certified to CB, IEC/EN and ANSI/AAMI 60601, third edition, RoHS2+ (10/10) and REACH safety standards and come with a 5-year warranty.
Technical data
- DC/DC converter for medical purposes
- 250VAC operating voltage, 2MOPP
- 5.2kVDC insulation for 250VAC working voltage
- Operating temperature from -40°C to +90°C
- Security according to 3rd Ed. and 4th. Ed. EMC
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Output current | 200000 mA |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV, Medical |
| Output voltage (VDC) | 5 V |
| I/O isolation | 5200 VDC |
