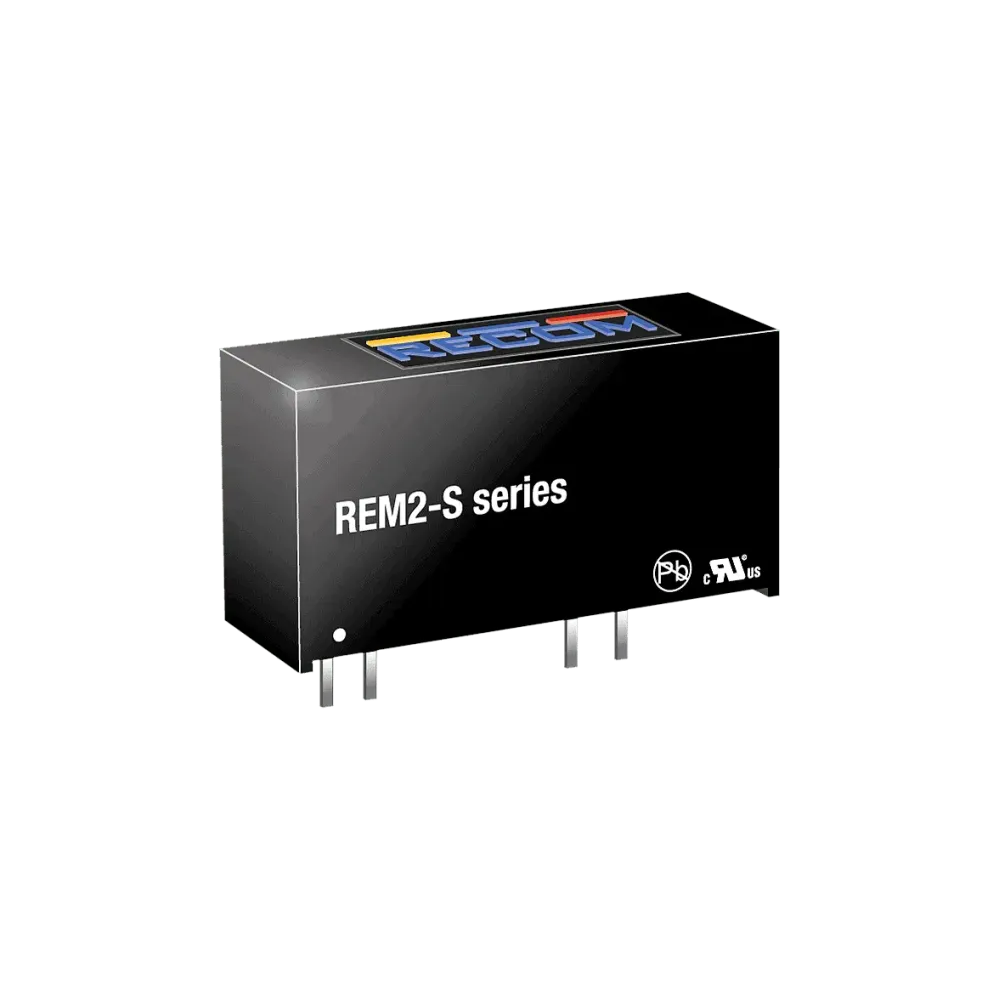

2W medical DC/DC converter, input 5V +/-10%, output 5V/400mA, SIP8

The PCB mountable REM2 series complements the REM1 series with a 2Watt medical grade DC/DC converter in a compact SIP8 package. The REM2 has a reinforced 5.2kVDC/1 minute isolation and 2MOPP/250VAC operating voltage at 5000m. It offers single and dual outputs with an efficiency of up to 85%. The operating temperature range is -40°C to +80°C without derating and up to +95°C with 50% load. The converter complies with class A/B EMC and medical EMC 60601-1-2 (4th ed.) using a simple external LC filter. The REM2 is certified to CB, IEC/EN and ANSI/AAMI 60601 (3rd edition) medical safety standards and comes with a 5-year warranty.

Technical data

• DC/DC converters for medical purposes
• 250VAC operation, 2MOPP at 5000m
• 5.2 kVDC/1 minute Insulation
• Single or double outputs
• Operating temperature from -40°C to +95°C
• Medically certified (3rd ed. safety, 4th ed. E)
