About the product

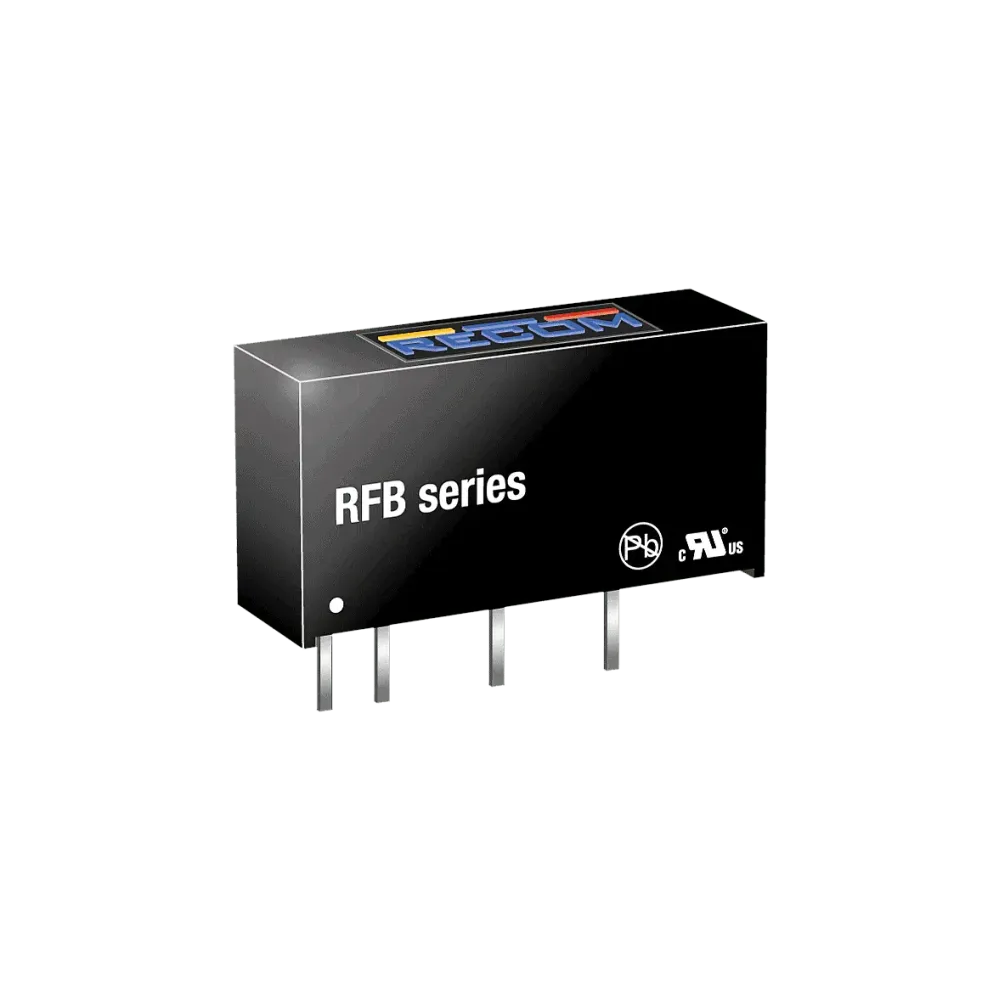

The RFB DC/DC converter is typically used in cost-sensitive general purpose applications for power isolation and voltage matching. Despite its low cost, it is a fully specified converter with 1kVDC isolation, an industrial operating temperature range of -40°C to +85°C without derating and UL/EN certification.
Technical data
- Cost-effective 1 watt converter
- 1:1 Input voltage range
- SIP7 housing
- 1kVDC insulation
- Efficiency of up to 80%
- Certified according to UL60950-1, CAN/CSA C22.2 No. 60950-1
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Output current | 200000 mA |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Design | SIP7 |
