About the product

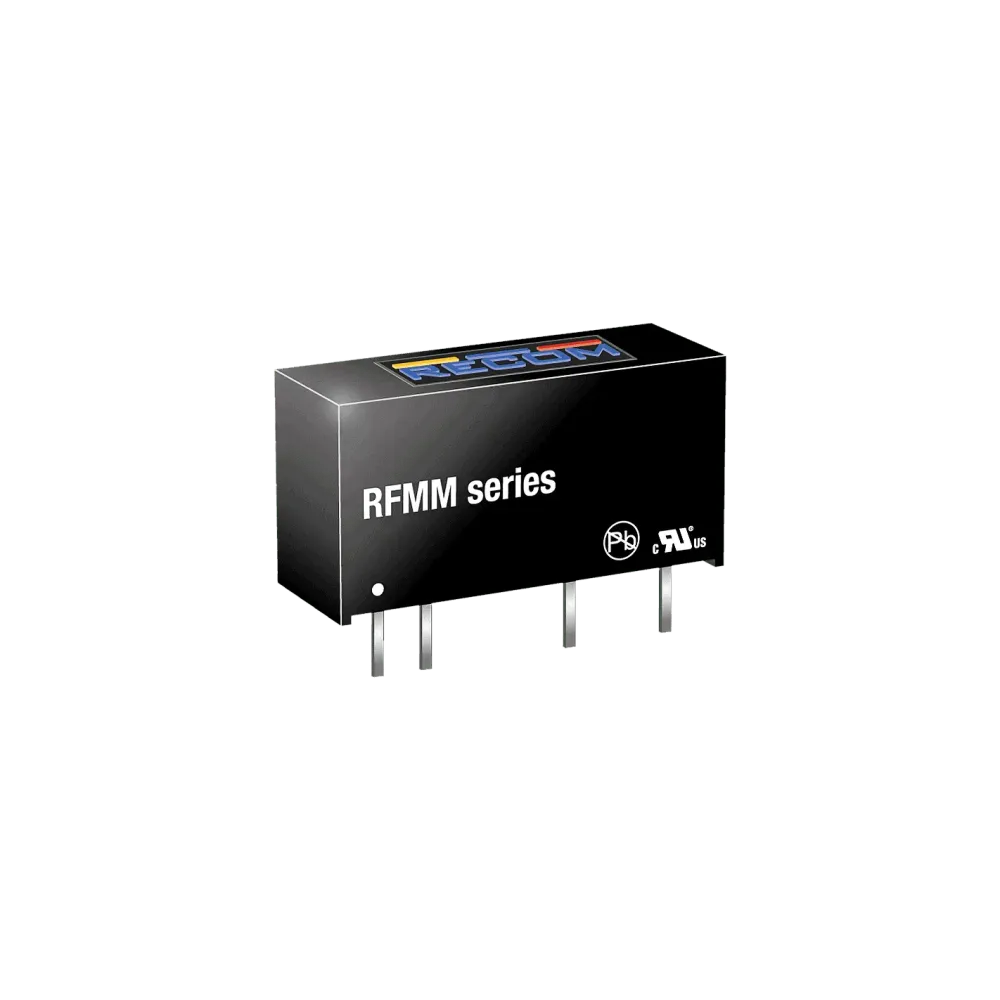

The RFMM DC/DC converter is typically used in cost-sensitive general purpose applications for power isolation and voltage matching. Despite its low cost, it is a fully specified converter with 4kVDC isolation, an industrial operating temperature range of -40°C to +85°C without derating and UL/EN certifications.
Technical data
- Cost-effective 1 watt converter
- Pinout according to industry standard
- SIP7 housing
- 4kVDC insulation
- Efficiency of up to 80%
- Wide operating temperature range from -40°C to +85°C
- UL60950-1, CAN/CSA C22.2 No. 60950-1 certified
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Length | 19.65 mm |
| Width | 7.05 mm |
| Height | 10.2 mm |
| Output current | 200000 mA |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| I/O isolation | 4000 VDC |
