About the product

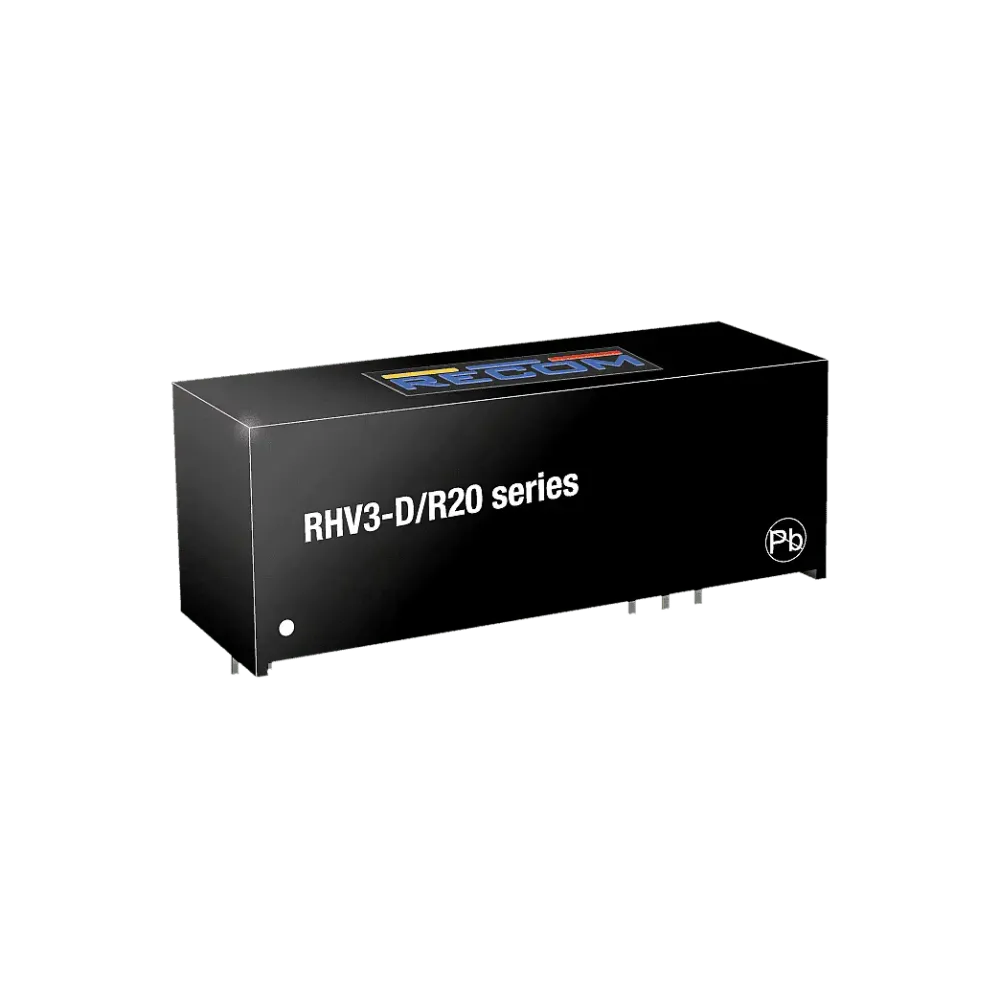

The RHV3 is a DC/DC converter with exceptionally high isolation of 20 kVDC (12.5 kVAC/1 minute) in a compact SIP16 housing. The input voltages can be 5, 12 or 24VDC and the outputs 5V, 12V, 24V, ±5V or ±12V. The operating temperature is -40°C to +80°C without derating. Applications include high vacuum monitoring, X-ray equipment, HVAC dust extraction systems and other industrial high voltage applications where a very high isolation remote power supply is required.
Technical data
- 12.5kVAC/1 minute Insulation
- Compact SIP16 housing with >30mm pin spacing
- Low 4pF maximum insulation capacitance
- Wide operating temperature range from -40°C to +80°C at full load
- Efficiency of up to 81
Product specifications
| Output voltage (VDC) | 24 V |
| I/O isolation | 12500 VDC |
| Width | 15 mm |
| Output current | 125000 mA |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Application | ITE/AV |
| Length | 45 mm |
| Power | 3 W |
| Height | 17 mm |
| Manufacturer | Recom |
| Design | SIP16 |
