About the product

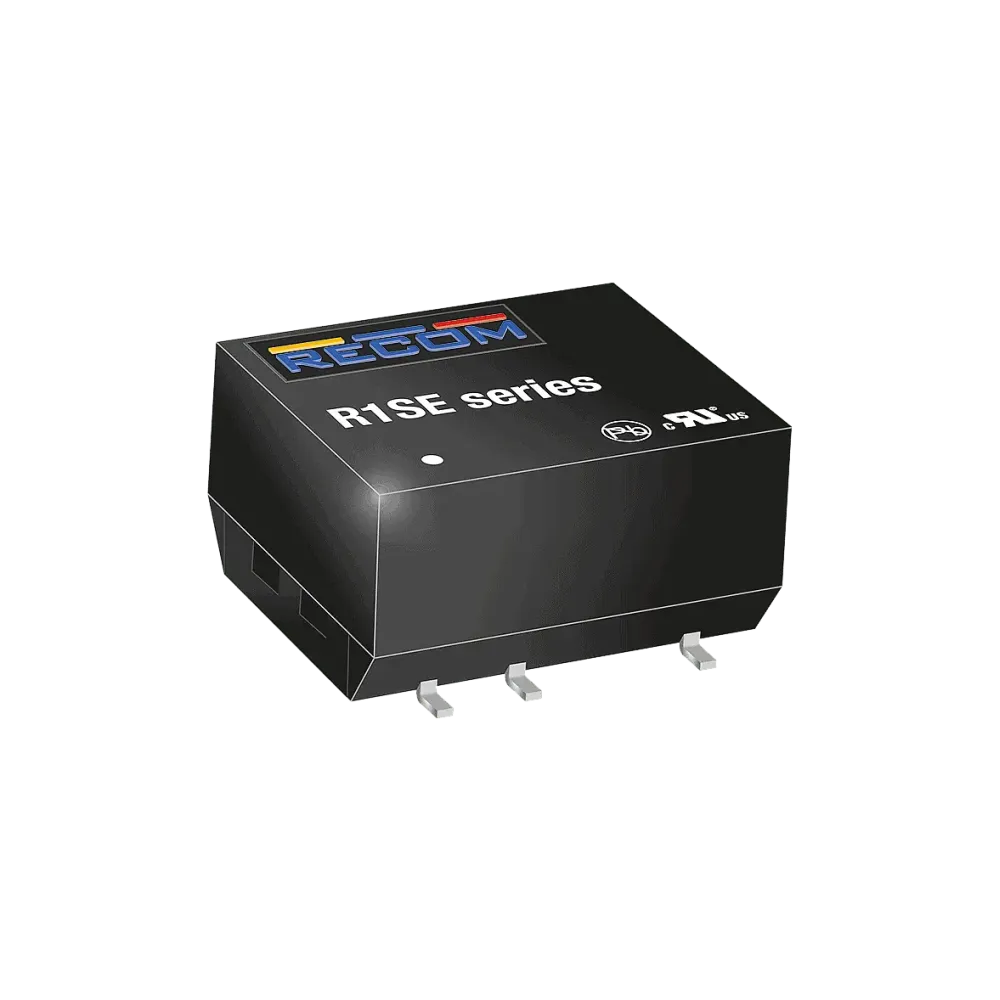

The R1SE series are unregulated 1 watt DC/DC converters that are more cost-effective than equivalent converters. The advantages of high volume production and semi-automated assembly allow a lower selling price without compromising our high quality standards. They are UL certified, offer reasonable efficiency and an operating temperature range of -40° to +85°C.
Technical data
- 1:1 Entrance area
- SMD housing
- Efficiency of up to 75%
- 1kVDC/1s insulation
- Wide operating temperature range from -40°C to +85°C at full load
- UL/EAC-certified
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Height | 6.7 mm |
| Width | 10.7 mm |
| Length | 12.75 mm |
| Output current | 200000 mA |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Design | SMD |
